Automobile Equipment

Discover the strength and durability of our Automobile Equipment, with over 51 years of experience in exporting, manufacturing, distributing, and supplying prime quality products to the domestic market in All India and to Africa. Our product list includes superior quality Steering Mechanism, Head Lamp Beam Setter, Electronic Controlled Engine Training Set, Transmission Jack-Low Lift, and Motronic Training Board Simulator. These must-have products are featured with magnificent advantages and features that make them stand out in the market. Our Automobile Equipment offers instant savings to our customers with its long-lasting durability and strength. The Steering Mechanism provides precise control and smooth handling, while the Head Lamp Beam Setter ensures accurate headlight alignment. The Electronic Controlled Engine Training Set offers a comprehensive understanding of engine control systems, and the Transmission Jack-Low Lift provides easy and safe transmission removal and installation. The Motronic Training Board Simulator offers a hands-on experience in understanding the engine management system. Our Automobile Equipment is a must-have for any automobile workshop, providing the best quality products at competitive prices.

Product Image (ET-OS2)

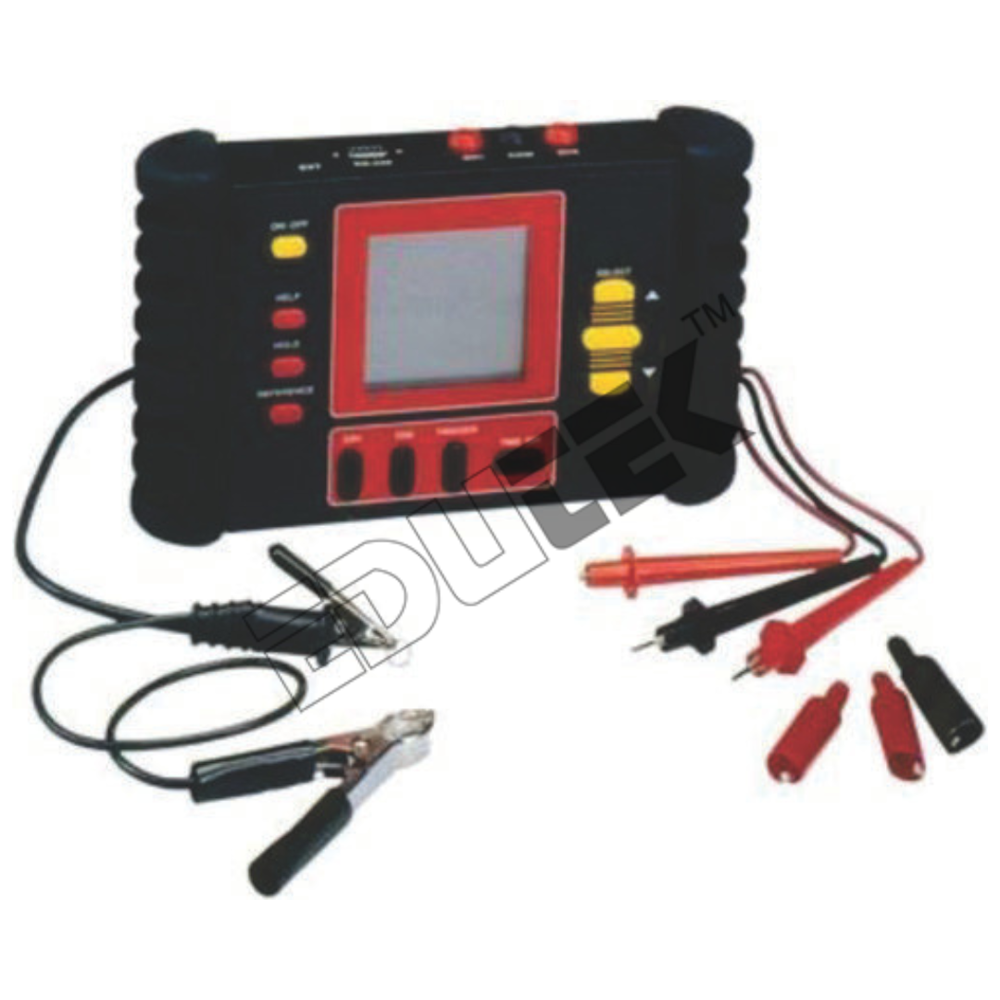

AUTOMOTIVE OSCILLOSCOPES

  • Machine Weight:3 kg
  • Measuring Range:20 mV to 100 V
  • Operating Voltage:100V-240V AC
  • Resolution:8 bits
  • Response Time:Instantaneous display (<10 ms)
  • Test Range:0-400 V (input Vpp)
  • Test Speed:Real-time 2 GS/s
  • Usage:Automotive diagnostics
Send Inquiry
Request To Call Back
Product Image (ETEA-40)

ENGINE ANALYZER

  • Accuracy:1%
  • Automation Grade:Automatic
  • Capacity:Up to 2.5 liters
  • Control Mode:Digital Microprocessor Based
  • Features:Graphical Display, Overload Protection, Real-Time Data Logging
  • Port Size:1/4 inch NPT
  • Specimen Size:Suitable for standard engine cylinder
  • Test Width:Standard 16 cm
Send Inquiry
Request To Call Back
Product Image (ETK-1175A )

SURFACE GRINDING MACHINE FOR CYLINDER

  • Application:Grinding, Smoothing, Finishing Cylindrical Surfaces
  • Gas Pressure:6 Bar (optional for pneumatic devices)
  • Machine Weight:1300 kg
  • Operating Voltage:415 V
  • Response Time:Instantaneous
  • Test Range:0 - 800 mm
  • Test Speed:1450 RPM
  • Usage:Metalworking, Workshop, Cylinder Regrinding
Send Inquiry
Request To Call Back
Product Image (ET-VET2)

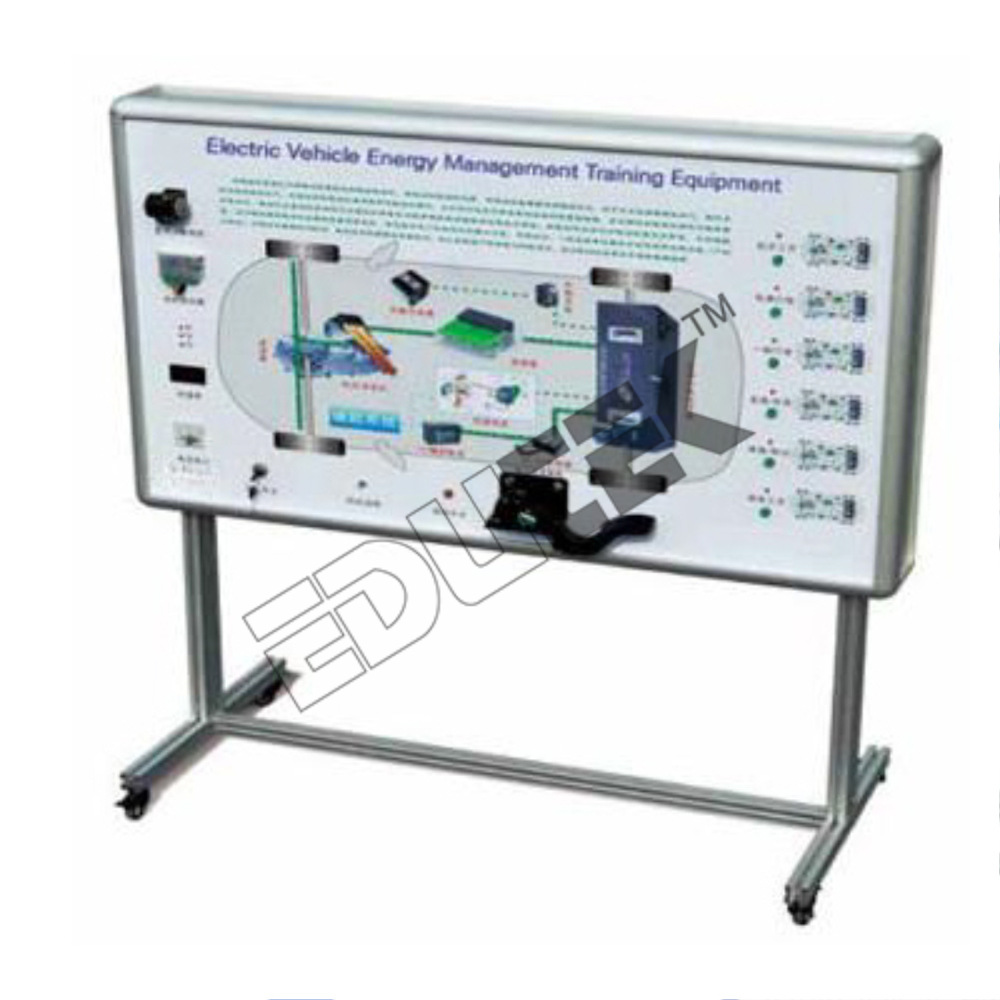

ELECTRIC VEHICLE ENERGY MANAGEMENT TRAINING EQUIPMENT

  • Accuracy:1%
  • Automation Grade:Semi-automatic
  • Capacity:3 kW
  • Control Mode:Microcontroller-based automatic/manual
  • Features:Modular design, data logging, safety interlocks, simulation modes
  • Frequency:50/60 Hz
  • Port Size:14 mm
  • Specimen Size:EV battery modules, up to 250 mm each
Send Inquiry
Request To Call Back
Product Image (ET-VB54)

VEHICLE BODY AUTOMOTIVE ELECTRIC TRAINING EQUIPMENT

  • Equipment Type:Vehicle Body Automotive Electric Training Equipment
  • Application:Automotive Electrical Diagnostics, Educational and Training Use
  • Humidity:20% ~ 90% RH
  • Machine Weight:Approx. 85 kg
  • Measuring Range:0 to 60V DC circuits
  • Number of Specimens:Multiple (4-8 subsystems)
  • Power Supply:AC 220V, 50Hz
  • Resolution:0.01 V / 0.001 A
Send Inquiry
Request To Call Back
Product Image (ET-T26)

TRAINING MODEL TRACTOR

Price: 50000.0 INR/Piece
  • Equipment Type:Model Tractor
  • Application:Mechanics, engineering, training & demonstration
  • Automation Grade:Manual
  • Control Mode:Manual
  • Features:Detailed fix and parts movement, Rugged plastic/metal body
  • Frequency:50 Hz
  • Humidity:Ambient
  • Specimen Size:Scaled Model
Send Inquiry
Request To Call Back
Product Image (ET-MC10)

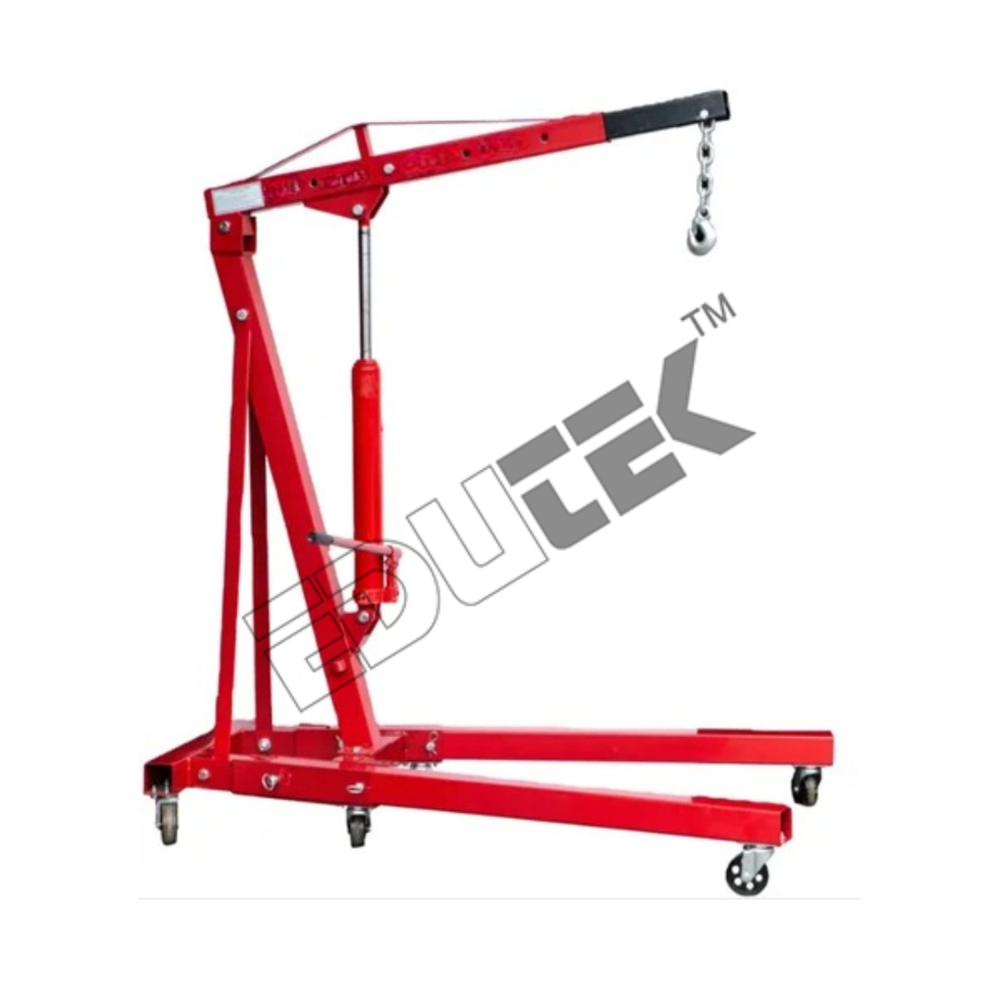

MOBILE CRANE

  • Equipment Type:Mobile Crane
  • Application:Material Lifting and Handling
  • Automation Grade:Manual
  • Capacity:20 Tons
  • Control Mode:Hydraulic
  • Features:360-degree Slewing, Telescopic Boom, Heavy Duty Axles
  • Power Supply:Diesel Engine
  • Usage:Construction & Industrial
Send Inquiry
Request To Call Back
Product Image (ET-MT38)

MOTRONIC TRAINING BOARD SIMULATOR

  • Accuracy:System Representative, for Educational Use
  • Automation Grade:Manual / Partially Automated Simulation
  • Display Type:Digital and Analog Display
  • Features:Multi-sensor demonstration, ECU operation, Fault Simulation, Interactive Control Switches
  • Interface Type:Direct Connection, Test Point Interface
  • Max Height:Approx. 0.75 m
  • Mounting Type:Free Standing Table/Bench Type
  • Temperature:0C to 50C Operating Range
Send Inquiry
Request To Call Back
Product Image (ETP-1318A)

FOUR STROKE PETROL ENGINE

  • Accuracy:Model Dependent
  • Automation Grade:Manual
  • Capacity:50-150cc (Varies with model, typically 80cc or 100cc)
  • Control Mode:Manual
  • Display Type:Analog Gauges (optional for rpm, temp, etc.)
  • Features:Mounted on base frame, with visible components for study, transparent sections (optional), easy access for demonstration
  • Frequency:50 Hz (Electrical Starter, if available)
  • Port Size:Standard engine intake/exhaust ports
Send Inquiry
Request To Call Back
Product Image (ET-DM1)

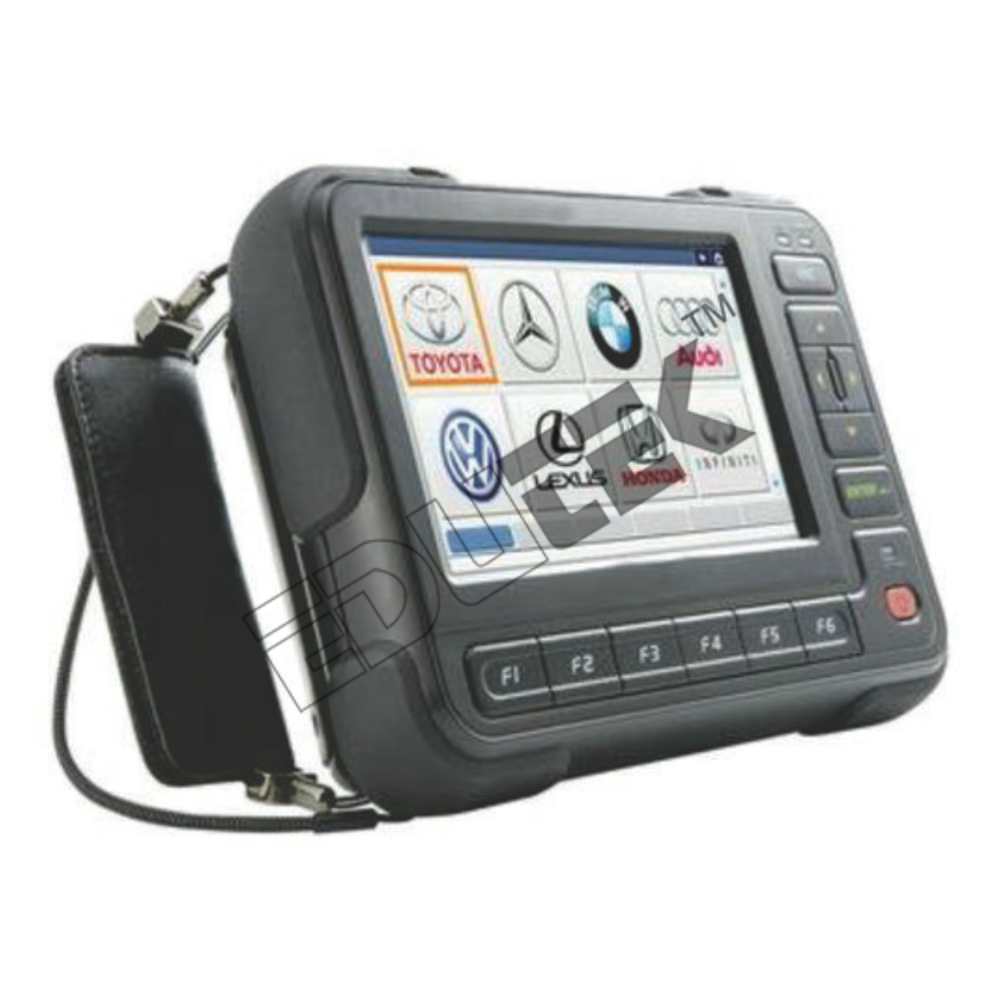

AUTO DIAGNOSIS MACHINE

  • Equipment Type:Auto Diagnosis Machine
  • Application:Automotive Diagnostic Testing
  • Humidity:20% - 80% RH
  • Machine Weight:8 kg
  • Measuring Range:0 - 5000 N
  • Number of Specimens:1 - 5
  • Power Supply:AC 220V 50Hz
  • Resolution:0.01 N
Send Inquiry
Request To Call Back
Product Image (ET-RE63)

REBORING MACHINE

  • Equipment Type:Vertical Cylinder Boring/Reboring Machine
  • Machine Weight:850 Kg
  • Measuring Range:20 mm - 120 mm
  • Operating Voltage:415 V
  • Response Time:Instantaneous (Mechanical Operation)
  • Test Range:20 mm to 120 mm (Diameter)
  • Test Speed:Variable (Depending on Operation)
  • Usage:Reboring Engine Cylinder Blocks
Send Inquiry
Request To Call Back
Product Image (ET-SM2)

STEERING MECHANISM

  • Equipment Type:STEERING MECHANISM Test Rig
  • Gas Pressure:5-7 bar
  • Machine Weight:Approx. 150 kg
  • Operating Voltage:230V AC
  • Response Time:<1 sec
  • Test Range:0-1000 N
  • Test Speed:0-500 mm/min adjustable
  • Usage:Industrial and Laboratory Use
Send Inquiry
Request To Call Back
Product Image (ET-TJ42)

TRANSMISSION JACK-LOW LIFT

  • Application:Lifting and lowering transmissions, transaxles, and transfer cases in vehicle maintenance workshops
  • Automation Grade:Manual
  • Capacity:0.5 Ton (500 kg)
  • Control Mode:Manual
  • Features:Low lift profile, heavy-duty steel construction, swivel casters for easy movement
  • Machine Weight:45 kg
  • Max Height:910 mm
  • Mounting Type:Floor mounted, mobile
Send Inquiry
Request To Call Back
Product Image (ET-ET54)

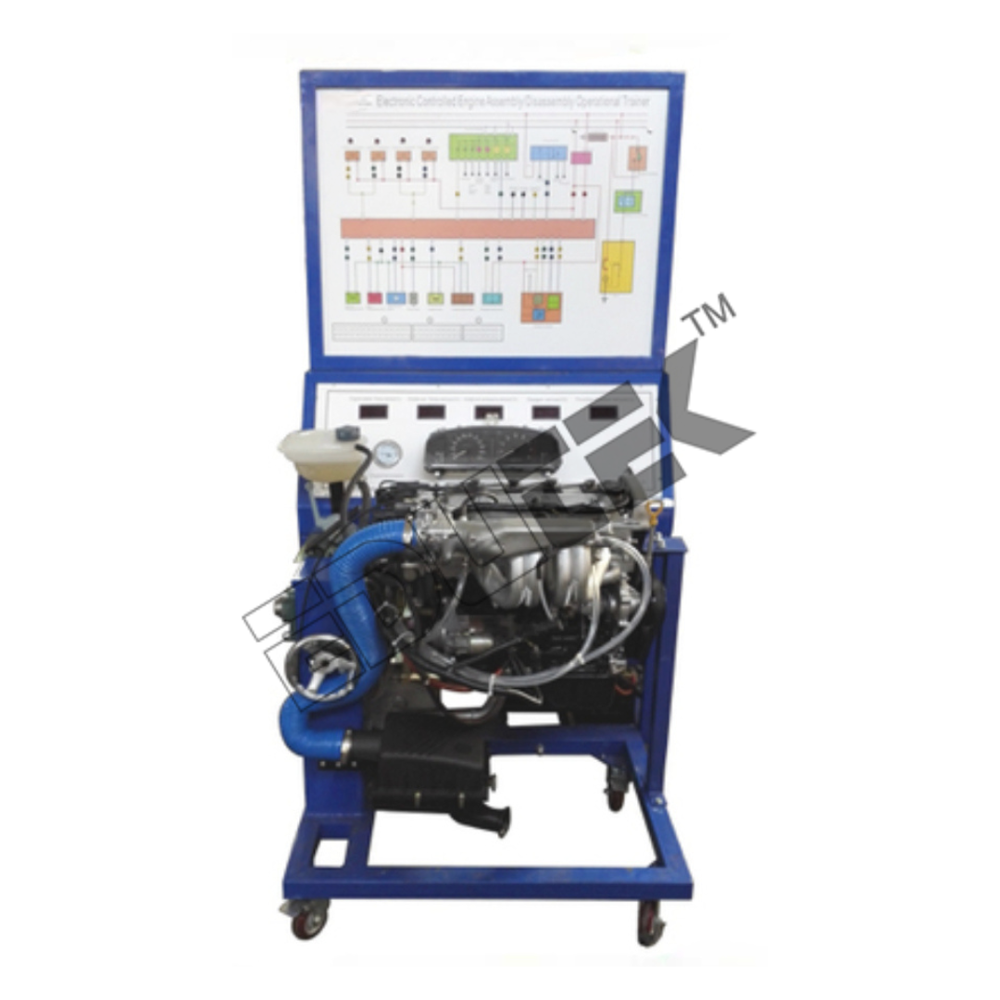

ELECTRONIC CONTROLLED ENGINE TRAINING SET

  • Equipment Type:Engine Training Set
  • Application:Automotive diagnostics and educational training
  • Humidity:Ambient
  • Measuring Range:Various Electronic Sensors (RPM, temperature, pressure, etc.) Celsius (oC)
  • Number of Specimens:1 (per setup)
  • Power Supply:220V AC, 50 Hz
  • Resolution:Digital Display
  • Test Speed:Variable, up to 3000 rpm
Send Inquiry
Request To Call Back
Product Image (ET-SP53)

STEERING AND PINION STEERING MODEL

  • Display Type:Analog/Model Representation
  • Hardness:Standard Metal/Plastic Parts
  • Interface Type:Mechanical Interface
  • Max Height:approx. 400 mm
  • Mounting Type:Bench/Tabletop
  • Temperature:Room Temperature
  • Test Stroke:150 mm
  • Test Width:Custom Steering Rack Width
Send Inquiry
Request To Call Back
Product Image (ET-68743A)

HYDRAULIC PRESS

  • Equipment Type:Hydraulic Press
  • Application:Industrial Material Testing, Moulding, Forming, Straightening, Punching
  • Humidity:Up to 85% RH
  • Measuring Range:0-2000 kN
  • Number of Specimens:Single
  • Operating Voltage:415V AC
  • Power Supply:3 Phase, 415V, 50Hz
  • Resolution:0.01 kN
Send Inquiry
Request To Call Back
Product Image (EDE-213A)

PETROL ENGINE 4 CYLINDERS 4 STOKE

  • Accuracy:Standard Laboratory Accuracy
  • Automation Grade:Manual/Optional Semi-Auto
  • Control Mode:Manual
  • Features:4 Stroke Operation, Air/Fuel adjustable, Instrumentation Fitted, Exhaust and Cooling Arrangement
  • Frequency:50 Hz
  • Hardness:Standard Cast Iron Block
  • Port Size:Standard
  • Specimen Size:Standard Engine Block Size
Send Inquiry
Request To Call Back
Product Image (ET-DI10)

DIESEL INJECTION PUMP TEST BENCH

  • Equipment Type:Diesel Injection Pump Test Bench
  • Application:Testing and calibration of diesel injection pumps
  • Humidity:Up to 85% RH, non-condensing
  • Machine Weight:450 kg
  • Measuring Range:Fuel delivery rate: 0-200 ml/1000 strokes
  • Number of Specimens:1 (per test cycle)
  • Power Supply:3 Phase, 415V, 50Hz
  • Resolution:0.1 ml
Send Inquiry
Request To Call Back
Product Image (ET-3526A)

WHEEL BALANCING MACHINE

  • Gas Pressure:0.5-0.8 MPa
  • Machine Weight:160 kg
  • Operating Voltage:220V, Single Phase
  • Power Supply:220 V AC, 50 Hz
  • Response Time:4 Seconds
  • Test Range:Up to 60 kg
  • Test Speed:200 rpm
  • Usage:Workshop, Service Centre, Tyre Shop
Send Inquiry
Request To Call Back
Product Image (ET-AE1)

AUTOMOTIVE ELECTRICAL TRAINING MODEL

  • Accuracy:Typically 1% of reading
  • Automation Grade:Manual and Semi-automatic circuits
  • Capacity:Comprehensive automotive electrical circuits coverage
  • Control Mode:Manual / Semi-Automatic
  • Features:Fuse protection, short-circuit indication, modular replica circuits, visual fault simulation
  • Frequency:50 Hz
  • Mounting Type:Bench-top
  • Specimen Size:Standard automotive component sizes
Send Inquiry
Request To Call Back
Product Image (ETEI-56)

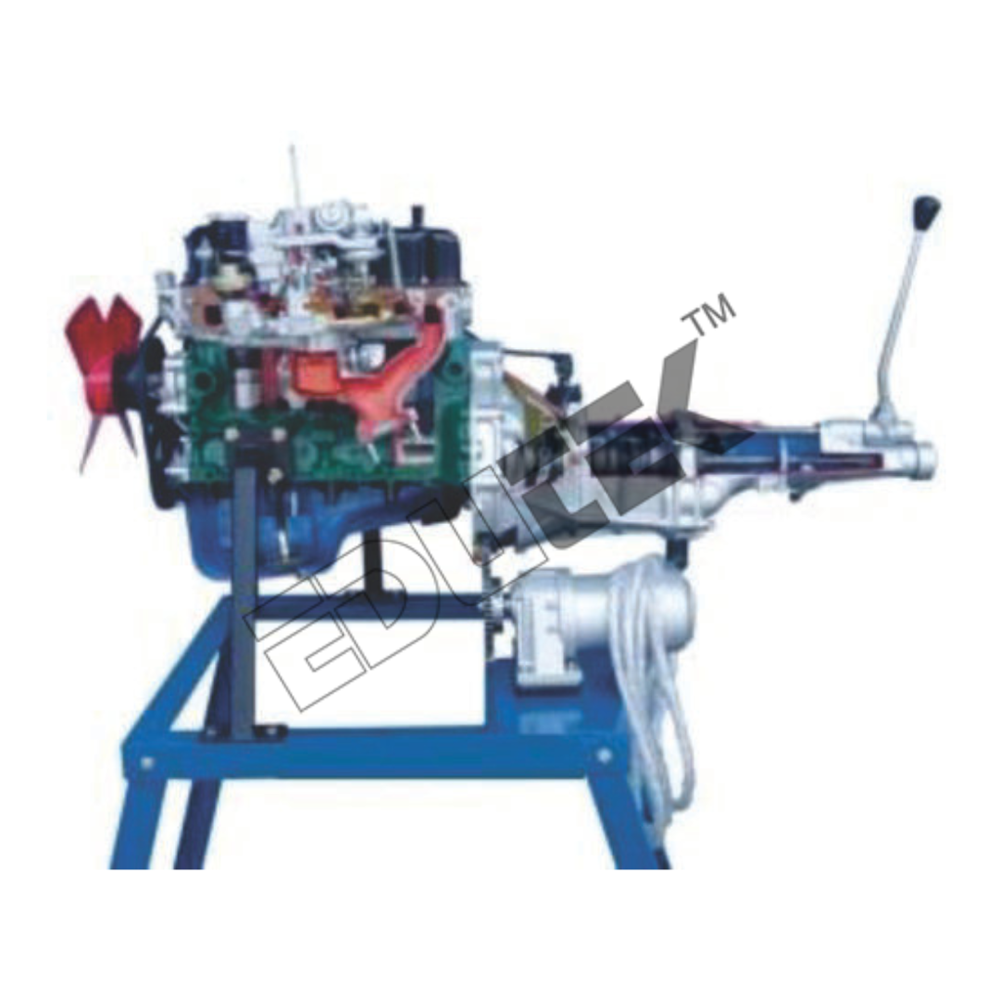

PETROL ENGINE -AUTOMATIC TRANSMISSION TRAINING EQUIPMENT

  • Application:Automotive Education, Practical Demonstration
  • Humidity:85% RH
  • Machine Weight:Approx. 250 kg
  • Operating Voltage:220V AC
  • Response Time:<2 seconds
  • Test Range:Full Range of Engine and Transmission Functions
  • Test Speed:Variable, up to 4000 RPM
  • Usage:Demonstration, Fault Diagnosis, Hands-on Training
Send Inquiry
Request To Call Back
Product Image (ET-LB46)

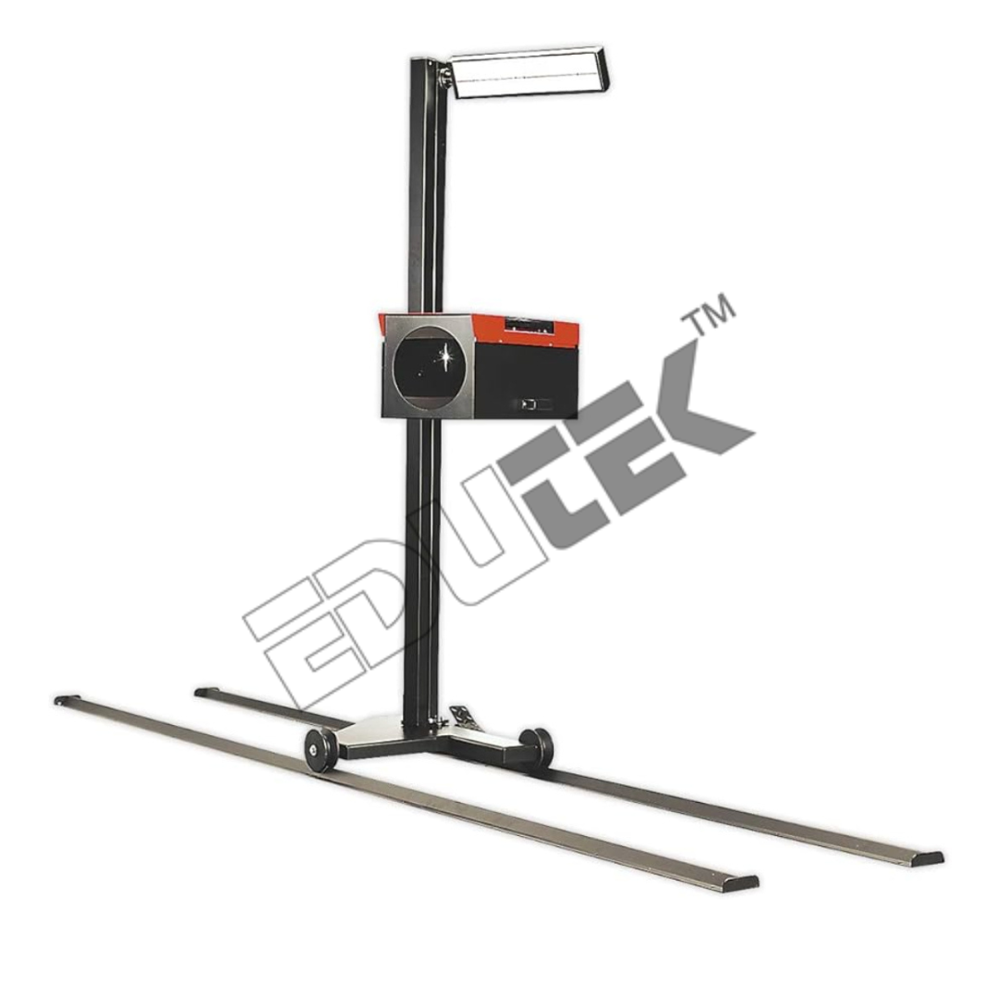

HEAD LAMP BEAM SETTER

  • Accuracy:0.1%
  • Automation Grade:Manual
  • Capacity:Standard Vehicle Headlamps
  • Control Mode:Mechanical / Manual
  • Features:Movable Design, Adjustable Height, Foldable Mirrors, Adjustable Positioning Frame
  • Hardness:Robust Metal Construction
  • Mounting Type:Floor Mounted with Wheels
  • Specimen Size:N/A - Suitable for All Standard Vehicles
Send Inquiry
Request To Call Back
Product Image (ETK-1381A)

AUTO DC POWER SUPPLY

  • Accuracy: 0.5%
  • Application:Electronics Testing, Laboratory Use, Education, R&D
  • Capacity:150 W
  • Control Mode:Manual and Auto
  • Features:Overload Protection, Short Circuit Protection, Adjustable Output
  • Measuring Range:0 - 30 V DC
  • Power Supply:230 V AC, 50 Hz
  • Resolution:0.01 V / 0.01 A
Send Inquiry
Request To Call Back
Product Image (ET-83326A)

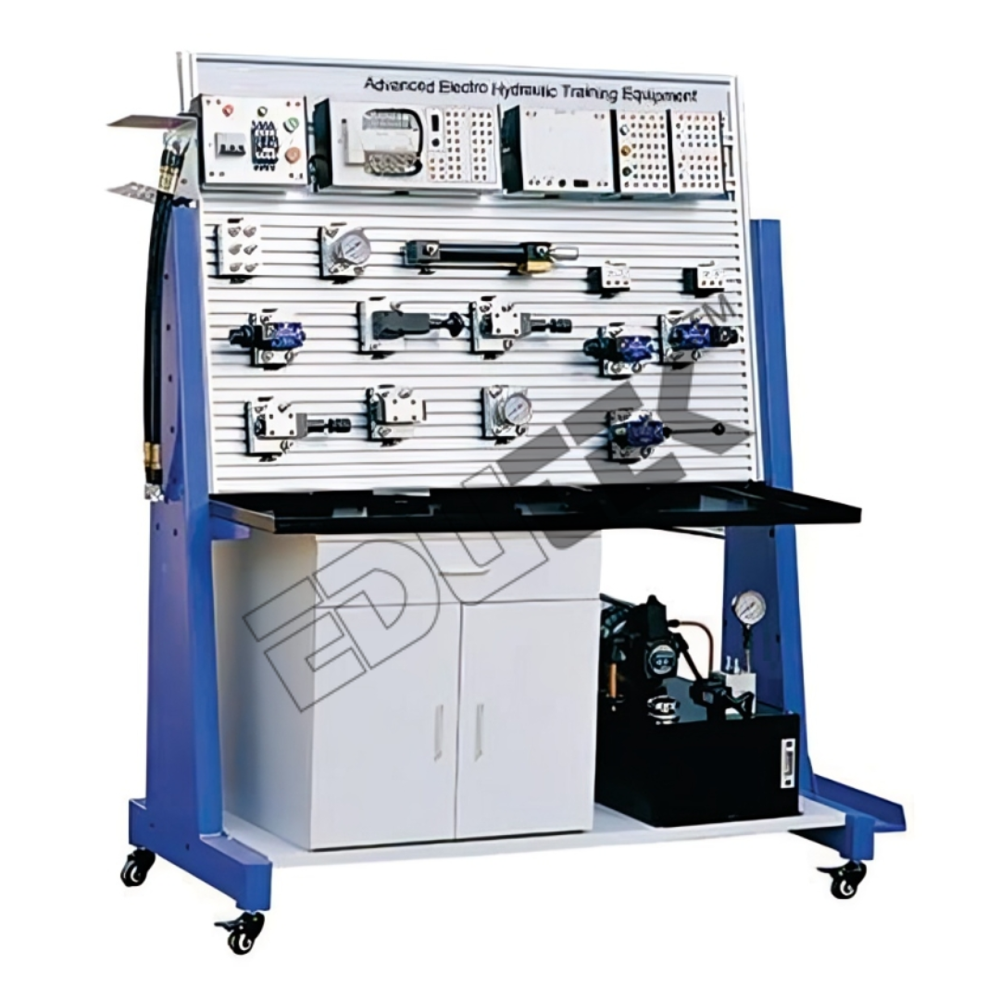

ADVANCED ELECTRO HYDRAULIC TRAINING EQUIPMENT

  • Accuracy:1% of reading
  • Capacity:Hydraulic system 5L, 50 bar max
  • Features:Modular configuration, Fault simulation, Safety interlocks
  • Frequency:50 Hz
  • Hardness:Industrial grade components
  • Port Size:G1/4
  • Specimen Size:Adjustable clamps for various sizes
  • Test Width:350 mm
Send Inquiry
Request To Call Back
