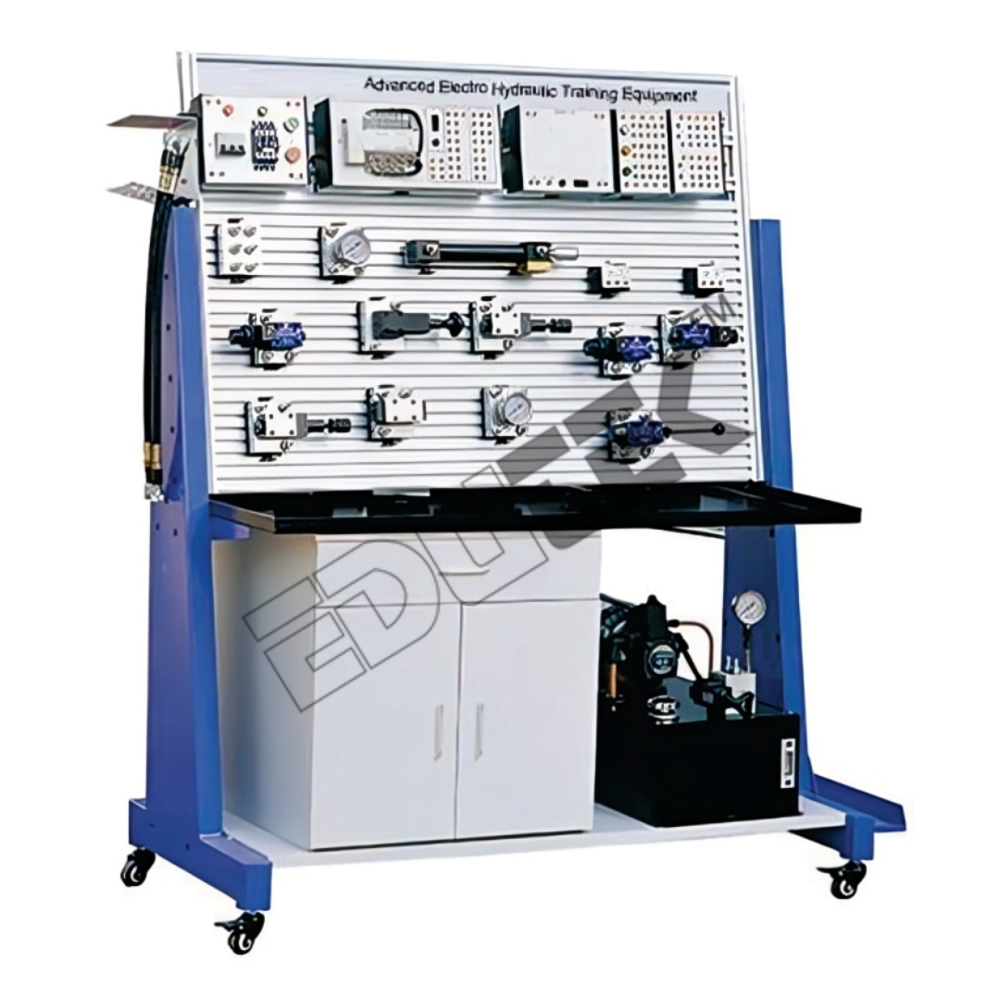

ADVANCED ELECTRO HYDRAULIC TRAINING EQUIPMENT

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ADVANCED ELECTRO HYDRAULIC TRAINING EQUIPMENT Specification

Accuracy
1% of reading

Frequency
50 Hz

Mounting Type
Floor-standing Cabinet

Power Supply
230V AC, 50 Hz

Hardness
Industrial grade components

Operating Voltage
24V DC (control), 230V AC (power)

Equipment Type
Advanced Electro Hydraulic Trainer

Automation Grade
Semi-Automatic/Automatic

Interface Type
USB/Data logging

Specimen Size
Adjustable clamps for various sizes

Test Range
0 2500 N

Resolution
0.01 bar

Response Time
<1 ms

Humidity
Up to 90% RH (Non-condensing)

Measuring Range
Digital Pressure: 0-250 bar

Max Height
1450 mm

Temperature
5C to 40C

Features
Modular configuration, Fault simulation, Safety interlocks

Number of Specimens
Single or Dual Specimen

Application
Educational, Simulation, and Industrial Training

Port Size
G1/4

Display Type
LCD Digital Display

Usage
Hydraulic system simulation and component testing

Capacity
Hydraulic system 5L, 50 bar max

Machine Weight
Approximately 120 kg

Test Speed
Up to 50 mm/s

Test Width
350 mm

Test Stroke
0-200 mm

Control Mode
PLC-Based Touch Screen Control

ADVANCED ELECTRO HYDRAULIC TRAINING EQUIPMENT Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About ADVANCED ELECTRO HYDRAULIC TRAINING EQUIPMENT

ADVANCED ELECTRO HYDRAULIC TRAINING EQUIPMENT

Didactic equipment
Lever Operated, 4-way, three positions, Tandem Centre.
Two cylinders- one with adjustable proximity switch and one
Resistive load spring
Fixed volume Vickers V10 Vane Pump, with pressure Gages
2 plumbing Tees and parallel, flow control characteristic and
Hydraulically counterbalancing an actuator

Comprehensive Training Modules

This trainer includes modules such as electro-hydraulic actuators, directional control valves, and real-time sensor integration, allowing users to simulate and analyse various hydraulic operations. With modular configuration, it supports tailored learning paths and advanced experiments, ideal for both educational institutes and industrial training centers.

Advanced Control & Monitoring

Equipped with PLC-based touch screen controls and both analog and digital pressure gauges, this equipment offers precise system management. Real-time monitoring and USB data export simplify result collection, while SCADA software compatibility enhances system automation and analysis capabilities.

Exceptional Safety and Durability

With features like overload and short-circuit protection, emergency stop, shield covers, and robust components, this trainer ensures a secure and reliable user experience. Its industrial-grade build, finned oil cooler, and low-noise design (below 70 dB) make it suitable for intensive and long-term use.

FAQs of ADVANCED ELECTRO HYDRAULIC TRAINING EQUIPMENT:

Q: How does the advanced electro hydraulic trainer facilitate hands-on learning?

A: This equipment provides a practical platform with electro-hydraulic actuators, directional valves, and sensors, simulating industrial scenarios. Users can configure modules, interact with real hydraulic circuits, and export test data for detailed analysis, supporting both theoretical and application-based study.

Q: What safety features are built into the training system?

A: The trainer includes overload and short-circuit protection, emergency stop buttons, transparent shield covers, and safety interlocks. These features safeguard users and the equipment during operation, making it compliant with modern safety standards.

Q: When is real-time monitoring and data logging beneficial during operation?

A: Real-time monitoring enables immediate observation of pressure, flow, and actuator behavior, expediting error identification and process validation. Data logging via USB is invaluable for experiment documentation, performance reviews, and report generation.

Q: Where can this equipment be effectively used?

A: Designed for use in technical colleges, universities, vocational training centers, research labs, and industrial training facilities, it is also valuable for in-house industrial training and simulation programs.

Q: What is the setup process for adding new training modules or accessories?

A: Thanks to its modular configuration and quick couplers, users can easily expand the system by connecting additional modules, attaching hoses, or integrating sensors with minimal downtime. Clear instructions in the CD manual support seamless integration.

Q: How does the trainer support both automatic and semi-automatic operation?

A: The PLC-based touch screen control lets users select between automatic and semi-automatic modes, catering to various learning objectives and experiment complexities. This versatility enhances both guided lessons and independent exploration.

Q: What are the main benefits of using this equipment for hydraulic system simulation and testing?

A: Students and professionals gain practical experience in hydraulic component operation, system troubleshooting, and parameter analysis. The trainers advanced features and data capabilities ensure comprehensive learning while replicating industry conditions.
