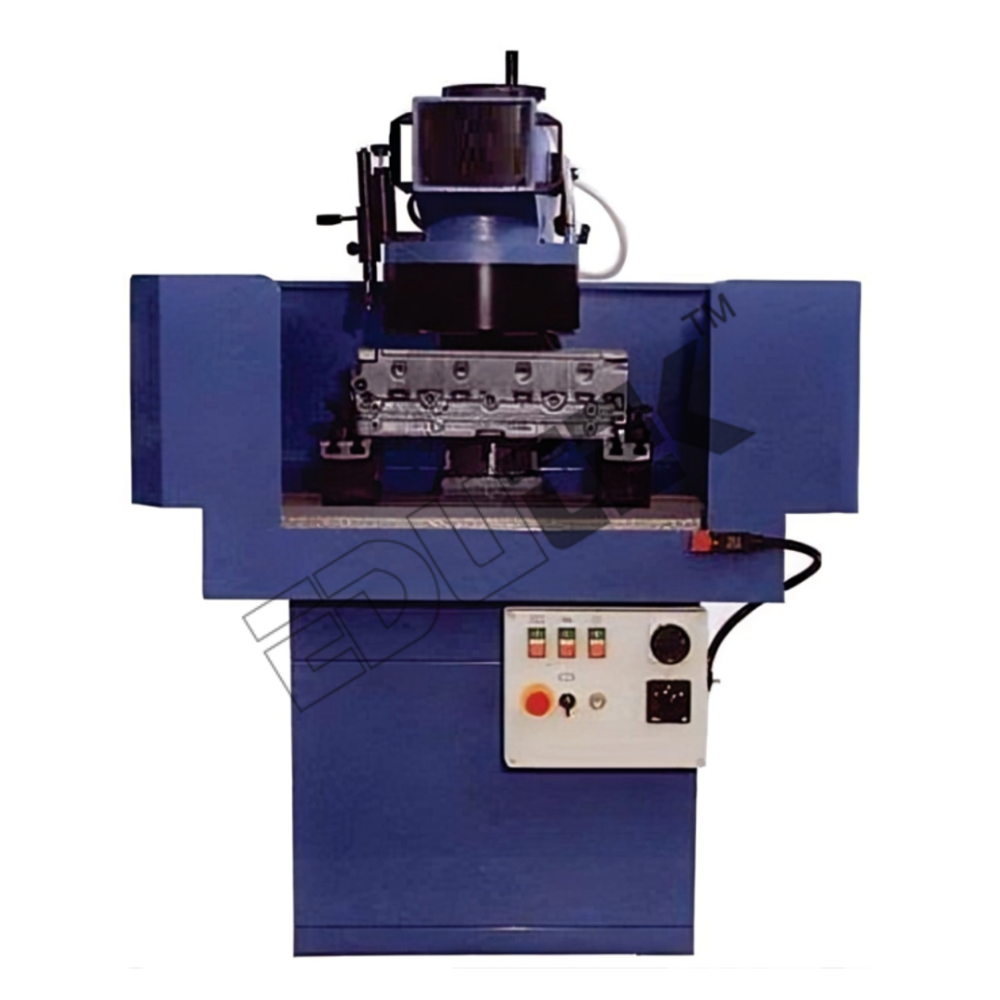

SURFACE GRINDING MACHINE FOR CYLINDER

Get a Price/Quote

MOQ : 1 Piece

SURFACE GRINDING MACHINE FOR CYLINDER Specification

Specimen Size
Max Length: 800 mm, Diameter: 15 300 mm

Frequency
50 Hz

Max Height
350 mm

Operating Voltage
415 V

Hardness
Up to 60 HRC

Test Range
0 - 800 mm

Gas Pressure
6 Bar (optional for pneumatic devices)

Interface Type
Standard Push Button Controls

Response Time
Instantaneous

Application
Grinding, Smoothing, Finishing Cylindrical Surfaces

Power Supply
3 Phase, 415V, 50Hz

Equipment Type
Surface Grinding Machine for Cylinder

Accuracy
0.01 mm

Display Type
Digital

Humidity
85% RH

Automation Grade
Semi-automatic

Resolution
0.001 mm

Mounting Type
Floor Mounted

Port Size
1 inch

Temperature
5C - 40C

Number of Specimens
1

Features
Heavy duty construction, Precision spindle, Coolant system included

Measuring Range
0.01 mm - 2 mm

Usage
Metalworking, Workshop, Cylinder Regrinding

Capacity
Max Load 250 kg

Machine Weight
1300 kg

Test Speed
1450 RPM

Test Width
400 mm

Test Stroke
800 mm

Control Mode
Manual

Finish Quality
Ra 0.2 m

Work Head Speed
20 - 120 RPM (variable)

Table Size
1000 x 400 mm

Noise Level
75 dB(A)

Safety Features
Overload Protection, Emergency Stop, Safety Guards

Lubrication
Automatic/Centralized

Wheel Head Movement
Hydraulic & Manual

Chuck Type
Magnetic Chuck (optional manual)

Coolant System
Integrated Recirculating

Grinding Wheel Size
400 x 50 x 203.2 mm

Spindle Motor Power
3 kW

SURFACE GRINDING MACHINE FOR CYLINDER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About SURFACE GRINDING MACHINE FOR CYLINDER

SURFACE GRINDING MACHINE FOR CYLINDER

Type: Surface Grinding machine
Voltage: 380V
Power (W): 1.5KW
Dimension (L*W*H):1900x1500x1900mm
Weight: 1300kg
Size of worktable:680x300mm
Max. Grinding size:700x320x390mm
Working pressure: 3Mpa
Wheel speed:2850r/min.
Product name: Surface Grinding Machine
Precision: 0.005mm
Power of spindle motor: 1.5kw

Efficient Cylindrical Grinding

Designed to accommodate specimens with lengths up to 800 mm and diameters between 15 and 300 mm, this advanced surface grinder delivers consistent, accurate grinding and finishing results. Variable work head speed and precise digital controls help achieve exceptional performance and surface integrity across a variety of cylindrical components.

User-Centric Operation

Offering both hydraulic and manual wheel head movement, as well as standard push button controls, the machine supports easy setup and flexible operation. Safety is prioritized through features like overload protection, emergency stops, and comprehensive guarding, ensuring peace of mind for operators during extended use.

Durable, High-Quality Construction

Built with heavy-duty materials, a precision spindle, and a reliable centralized lubrication system, the machine endures tough workshop conditions. Integrated coolant and optional magnetic or manual chuck facilitate efficient metalworking, making it an ideal choice for manufacturers and exporters seeking reliability and quality in India.

FAQs of SURFACE GRINDING MACHINE FOR CYLINDER:

Q: How does the surface grinding machine for cylinders operate?

A: This machine operates using a combination of manual and hydraulic controls to advance the grinding wheel across the workpiece. The variable-speed work head allows for precise rotation of the cylinder, while the automatic coolant and centralized lubrication systems enhance performance and longevity.

Q: What types of cylindrical workpieces can be processed on this machine?

A: The grinder can accommodate specimens up to 800 mm in length and diameters ranging from 15 mm to 300 mm, with a maximum load capacity of 250 kg. Its suitable for a wide array of metalworking applications, including cylinder regrinding and finishing hardened components up to 60 HRC.

Q: When is it recommended to use the integrated coolant system?

A: The integrated recirculating coolant system should be utilized during all grinding operations to reduce heat, ensure a high surface finish of Ra 0.2 m, and promote longer wheel and specimen life by minimizing thermal distortion and debris accumulation.

Q: Where is this surface grinding machine commonly installed and used?

A: Primarily floor-mounted, this grinder is most often found in industrial workshops, manufacturing plants, and metalworking facilities specializing in the machining and finishing of cylindrical components, especially in environments requiring accuracy and reliability.

Q: What is the process for setting up a workpiece and ensuring accurate results?

A: The operator mounts the workpiece onto the (optional magnetic or manual) chuck, sets the required grinding parameters using the digital display, and adjusts head speed and wheel movement as needed. The automatic lubrication and coolant systems maintain smooth operation, while safety features provide operator protection.

Q: How does using this machine benefit metalworking operations?

A: The machine offers high precision and repeatability (accuracy 0.01 mm, resolution 0.001 mm), efficient cooling, and superior surface finishes, resulting in reduced post-processing time, improved productivity, and consistent product quality in demanding workshop conditions.
