MOTRONIC TRAINING BOARD SIMULATOR

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

MOTRONIC TRAINING BOARD SIMULATOR Specification

Operating Voltage
230V AC

Response Time
Instant (Depends on Simulation)

Application
Automotive Engine Management Training, Diagnostics, Educational Use

Mounting Type
Free Standing Table/Bench Type

Interface Type
Direct Connection, Test Point Interface

Resolution
Sensor Output Scale - Digital/Analog Meters

Equipment Type
Motronic Engine Management Simulator

Display Type
Digital and Analog Display

Measuring Range
Sensors Output Displayed

Temperature
0C to 50C Operating Range

Power Supply
230V AC, 50Hz, Single Phase

Accuracy
System Representative, for Educational Use

Frequency
50 Hz

Humidity
Up to 85% RH

Max Height
Approx. 0.75 m

Number of Specimens
Multiple Test Points Provided

Automation Grade
Manual / Partially Automated Simulation

Features
Multi-sensor demonstration, ECU operation, Fault Simulation, Interactive Control Switches

Usage
Automotive Training, Engine System Diagnostics

Capacity
Simulates One Complete Engine Management System

Machine Weight
Approx. 24 kg

Control Mode
Manual / Demonstration Board

MOTRONIC TRAINING BOARD SIMULATOR Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About MOTRONIC TRAINING BOARD SIMULATOR

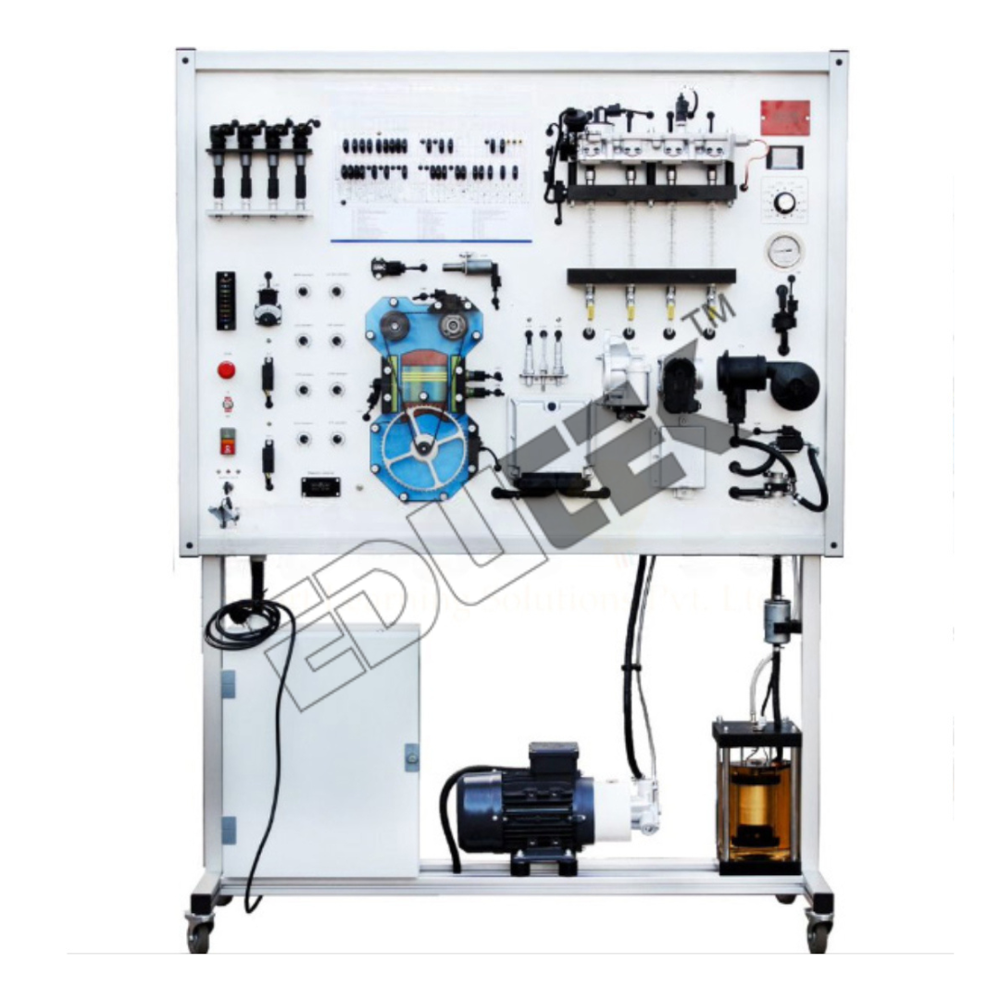

MOTRONIC TRAINING BOARD SIMULATOR

Internal wiring is not visible.
Power supply: 220v.
Integrated engine control system with multi point petrol injection system.
Monitoring operation of fuel supply system.
Fuel pump is built into a transparent tank.
Visible work process of spark plugs.
Easy access for high voltage measurements.
Manual adjustment of the engine crankshaft speed.
Dimensions approx. (H x L x W): 1820x1360x500 mm.

Comprehensive Motronic ECU Simulation

This simulator replicates a full Bosch Motronic multi-point injection system, including fuel and ignition control. Users can observe and interact with key engine sensors and actuators, exploring system behavior and diagnostic techniques in a controlled, safe environment. The included digital and analog displays provide real-time feedback for sensor outputs, enhancing the learning experience.

Interactive Fault and Measurement Features

Fault simulation switches allow educators and students to introduce and identify circuit issues, mimicking real-world vehicle diagnostics. Multiple test sockets make measurement and diagnosis accessible, promoting hands-on practice with live engine control scenarios and sensor monitoring, supported by a comprehensive circuit chart and component identification.

Safe, Durable, and User-Friendly Design

Constructed from powder-coated steel with an acrylic protection cover and insulated terminals, the simulator ensures user safety during operation. Emergency stops, fused main power, and reliable connection interfaces provide peace of mindenabling focused learning through direct, tactile student interaction.

FAQs of MOTRONIC TRAINING BOARD SIMULATOR:

Q: How does the Motronic Training Board Simulator benefit automotive students and instructors?

A: The simulator offers practical, hands-on experience with a full engine management system, allowing students to interact with and measure real sensor and actuator circuits. Instructors benefit from the ability to demonstrate faults and diagnostic procedures in a safe, controlled setting.

Q: What engine management system is simulated, and which sensors and actuators are included?

A: The board simulates a Bosch Motronic Multi-Point Injection (MPI) system, including key sensors such as crankshaft, camshaft, air flow, throttle position, coolant temperature, knock, and oxygen sensors. Actuator simulations cover injectors, ignition coil, idle control valve, various relays, and more.

Q: When and where can the Motronic Simulator be used?

A: Designed for use in vocational and educational settings, the simulator operates in laboratories, classrooms, or training centers. It is appropriate for use during practical automotive diagnostics and engine management courses, within an operating temperature of 0C to 50C and humidity up to 85% RH.

Q: What is the process for diagnosing and simulating faults on this equipment?

A: Students and instructors use switch-operated controls to introduce faults in specific sensor or actuator circuits. They can then use measurement sockets and diagnostic tools to analyze system behavior, referencing the detailed circuit charts for troubleshooting guidance.

Q: Where are sensor outputs and system measurements displayed?

A: Sensor outputs and system parameters are shown on digital and analog meters integrated into the panel, allowing real-time monitoring and precise measurement during training exercises.

Q: How does the safety design protect users during operation?

A: The simulator features fused main power, an emergency stop button, and insulated terminals to prevent accidental shocks. The acrylic protection cover further enhances user safety during engine simulations and interactive tasks.
