WHEEL BALANCING MACHINE

Price 1000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

WHEEL BALANCING MACHINE Specification

Max Height
1200 mm

Operating Voltage
220V, Single Phase

Accuracy
1 g

Temperature
5C to 40C

Equipment Type
Automatic Wheel Balancing Machine

Gas Pressure
0.5-0.8 MPa

Features
Automatic Data Input, Self-Diagnosis, Auto Stop

Humidity
90% RH

Display Type
Digital LED/LCD Display

Mounting Type
Floor Mounted

Response Time
4 Seconds

Measuring Range
Up to 9999 gmm

Number of Specimens
1 Wheel per Test

Frequency
50 Hz

Port Size
Standard 1/2 BSP

Specimen Size
10-24 inch rim diameter

Resolution
1 g

Test Range
Up to 60 kg

Interface Type
Touchscreen/Push Button

Power Supply
220 V AC, 50 Hz

Application
Automobile Wheel Balancing for Cars, Trucks, Buses

Automation Grade
Automatic

Usage
Workshop, Service Centre, Tyre Shop

Capacity
60 kg (Max Wheel Weight)

Machine Weight
160 kg

Test Speed
200 rpm

Test Width
10-300 mm

Test Stroke
240 mm

Control Mode
Digital Microprocessor Control

Noise Level
70 dB

Data Storage
Last 10 Balancing Results

Wheel Clamping
Quick-Release Flange System

Colour
Industrial Red/Black

Lamp Type
LED Illuminated Work Area

Power Consumption
0.75 kW

Motor Type
Induction Motor

Operating Language
Multilingual

Balancing Precision
1 g

Cycle Time Per Wheel
5-12 seconds

Standard Accessories
Cones, Quick Nut, Caliper, Hammer

Protection
Overload & Short Circuit

WHEEL BALANCING MACHINE Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About WHEEL BALANCING MACHINE

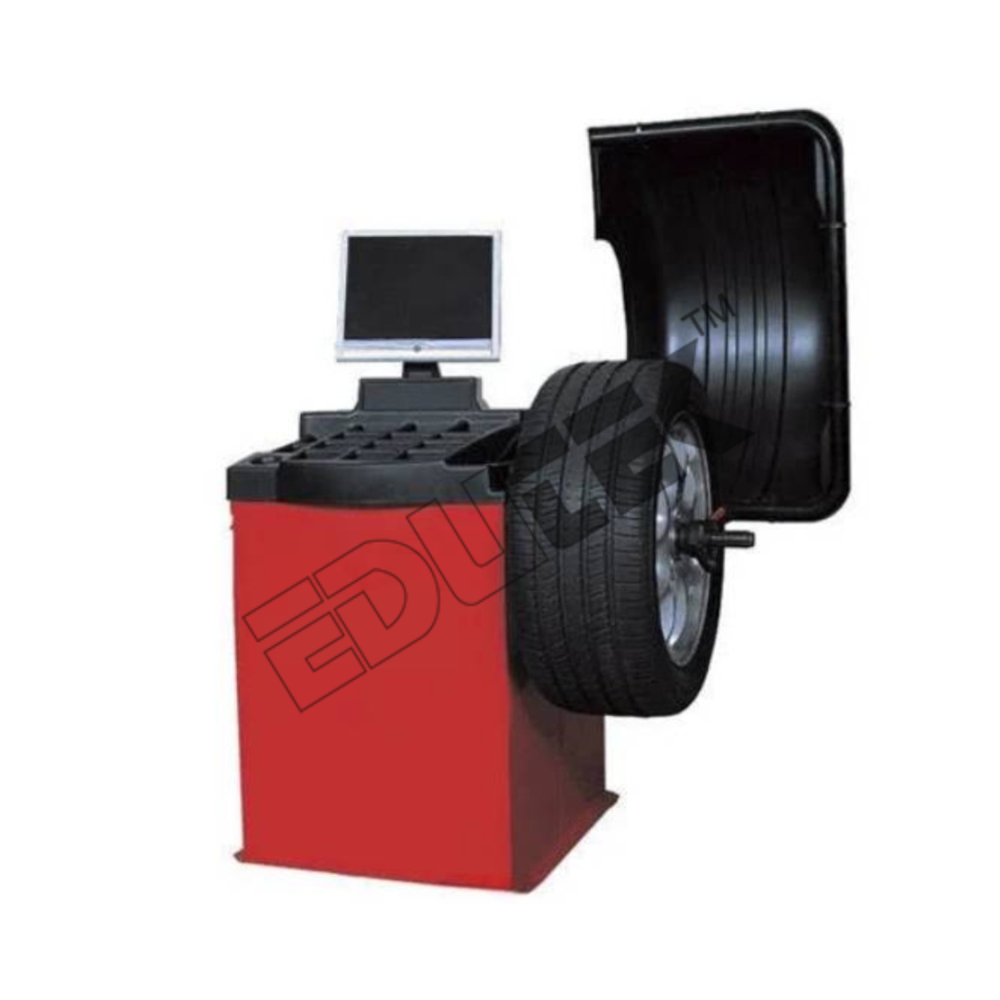

WHEEL BALANCING MACHINE

Stationary car type dynamic wheel balancer
Diameter of rim 10 to16 inch (255mm to 400mm)
Width of rim 3 to 8inch (75 to 200mm)
Motor 3 phase, 0.5kw
Drive-check technology provides accuracy for vibration-free results
Automatic weight optimization calculates minimum weight need to achieve optimum balance
User-friendly operation with touch pad display panel
Brightly displayed led indicators mark wheel weight amount and placement
Pneumatic braking system

Cutting-Edge Technology for Precision Balancing

Utilizing a digital microprocessor control system and an automatic data input interface, this machine delivers exceptional wheel balancing accuracy (1 g). The touchscreen or push-button operation streamlines the process, while features like self-diagnosis and auto-stop maximize both convenience and reliability during each cycle.

Fast and Efficient Operation

With a swift cycle time of 5-12 seconds and a test speed of 200 rpm, this balancing machine keeps up with high workshop demands. The quick-release flange system facilitates rapid wheel mounting, and automatic storage of the last 10 results allows easy record-keeping.

Safety and User Comfort Prioritized

Integrated overload and short circuit protection ensures operator safety, while working noise is kept to a minimum (70 dB). The LED illumination provides excellent visibility, and the robust floor-mountable design enhances stability and durability in any service environment.

FAQs of WHEEL BALANCING MACHINE:

Q: How does the quick-release flange system improve the wheel balancing process?

A: The quick-release flange system allows for rapid and secure clamping of the wheel, significantly reducing setup time and streamlining the balancing process. This feature is especially beneficial in busy workshops where efficiency is paramount.

Q: What types of vehicles are compatible with this wheel balancing machine?

A: This machine is suitable for balancing wheels from cars, trucks, and buses. It accommodates wheel sizes with rim diameters from 10 to 24 inches and can handle wheel weights up to 60 kg.

Q: When should a wheel be balanced using this machine?

A: It is advisable to use this machine whenever wheels exhibit symptoms such as unusual vibrations, uneven tyre wear, or after tire installation and rotation. Routine balancing improves driving safety and extends tyre life.

Q: Where can this wheel balancing machine be installed?

A: The machine is designed for floor-mounting in workshops, service centers, and tyre shops. Its sturdy construction and manageable 160 kg weight facilitate installation in a wide range of professional automotive environments.

Q: What is the process for operating the automatic wheel balancing machine?

A: Mount the wheel using the quick-release flange, enter required data via touchscreen or push button, and initiate the balancing cycle. The machine automatically measures and displays imbalance, guiding corrective weights placement. It stores the last 10 results for reference.

Q: How does the machine enhance workshop productivity and benefit users?

A: With a rapid 5-12 second cycle time and user-friendly controls, the machine minimizes downtime while maximizing accuracy. Its automatic features, data storage, and easy setup contribute to higher workflow efficiency and improved customer service.
