Vortex Flow Meter

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Vortex Flow Meter Specification

Feature
Highly Efficient

Warranty
1 year

Dimension (L*W*H)
830x350x160 Millimeter (mm)

Accuracy
100 %

Weight
7 Kilograms (kg)

Type
VORTEX FLOW METER

Usage
Laboratory

About Vortex Flow Meter

VORTEX FLOW METER

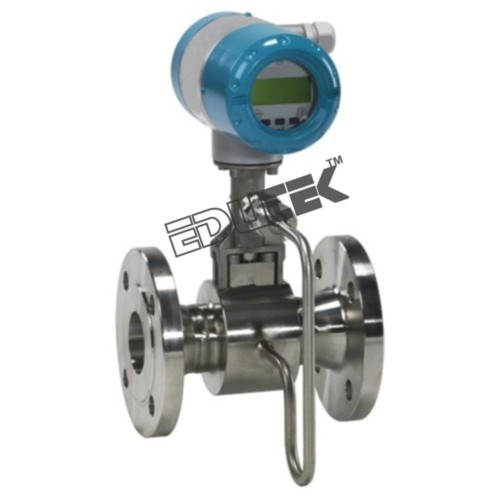

The vortex flow meter is installed in the water circuit of the trainer. It operates according to the principle of Von Karman vortex shedding. Downstream of a dam body in a flow, vortices alternately form which are separated off by the flow. The frequency of the vortex separation to both sides of the dam body is proportional to the flow rate. The separated vortices alternately generate local vacuum which is measured using capacitive pressure sensors. The pressure signals are converted and indicated as the flow rate on a display. The necessary connections are provided so that the pressure loss can be determined

Learning Objectives / Experiments

Familiarisation with the principle of operation
Flow measurement
Plotting a pressure loss curve
Comparison with other flow meters

Specification:

Vortex flow meter as accessory for flow meter trainer
Operation according to Von Karman vortex shedding
Display indicating flow rate
Connections to facilitate pressure loss measurement with the Flow meter Trainer
Connections to supply auxiliary power via flow meter trainer
Vertical and horizontal installation possible

Technical Data:

Max. flow rate: 5200L/h
Auxiliary power: 24VDC
Pipe connections: DN 32

Dimensions and Weight:

LxWxH: 830x350x160mm
Weight: approx. 7kg

Advanced Measurement Technology

Benefit from the cutting-edge vortex principle employed by this flow meter. Designed for laboratory environments, it can measure fluid flow with remarkable accuracy, providing consistent readings without frequent calibration. Its efficiency makes it a trusted choice for research applications where data precision is crucial.

Durable and User-Friendly Design

The Vortex Flow Meter is compact yet sturdy, with a size of 830x350x160 mm and a weight of 7 kg, making it simple to transport and install. Its robust build ensures longevity even under routine laboratory conditions. The intuitive setup process allows quick integration into existing systems.

FAQs of Vortex Flow Meter:

Q: How does the Vortex Flow Meter achieve 100% accuracy in laboratory measurements?

A: This Vortex Flow Meter utilizes advanced vortex shedding technology to deliver highly accurate fluid flow readings. Its precise engineering and calibration for laboratory conditions help ensure measurement reliability.

Q: What is the recommended process for installing the Vortex Flow Meter in a laboratory setting?

A: To install, position the meter in line with the pipeline, ensuring the flow direction matches the indicator. Secure the instrument carefully using the provided fittings and connect any required data interfaces to begin measurement after system calibration.

Q: When should the Vortex Flow Meter be calibrated or maintained?

A: Routine calibration may not be frequently required due to its highly efficient and precise design, but periodic checks are recommended within the 1-year warranty period to maintain peak performance.

Q: Where is the Vortex Flow Meter manufactured and available for export or supply?

A: The Vortex Flow Meter is manufactured in India and is available globally as an exported, supplied, and distributed instrument for laboratory applications.

Q: What benefits does the Vortex Flow Meter provide for laboratory users?

A: Laboratory users enjoy accurate and reliable flow measurement, efficient operation, sturdy construction, and a 1-year warranty, making it a smart investment for scientific and research purposes.

Q: How can the Vortex Flow Meter be used in laboratory experiments?

A: The Vortex Flow Meter enables precise monitoring and control of fluid flow in various scientific experiments, contributing to consistent and reproducible results.
