Hydrostatic Pressure Apparatus

Price 500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Hydrostatic Pressure Apparatus Specification

Power Source
Mains Operated (Electric)

Core Components
Pressure Pump, Test Tank, Pressure Gauge, Valves

Feature
Corrosion Resistant, Leak Proof Design, Portable

Frequency
50 Hz

Model No
HPA-3400

Voltage
220 V AC

Capacity
10 bar (standard), other capacities available as per requirement

Automation Grade
Manual

Measurement Range
0 - 10 bar

Accuracy
1% F.S.D. (Full Scale Deflection)

Temperature Range
5C to 60C (ambient conditions)

Equipment Materials
Stainless Steel Test Tank, Brass Fittings, Polycarbonate End Caps

Type
Bench Top, Laboratory Equipment

Usage
Testing hydrostatic pressure in pipes, tubes, and fittings

Display Type
Analog Pressure Gauges

Dimension (L*W*H)
700 mm x 450 mm x 500 mm

Weight
Approx. 25 kg

Hydrostatic Pressure Apparatus Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Letter of Credit (L/C), Letter of Credit at Sight (Sight L/C), Cash on Delivery (COD), Cash Advance (CA), Delivery Point (DP), Days after Acceptance (DA), Cash Against Delivery (CAD), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque

Delivery Time
2 Week

Sample Available
Yes

Main Export Market(s)
Western Europe, Middle East, Africa, Central America, Australia, South America, Asia, Eastern Europe, North America

Main Domestic Market
, South India, North India, East India, Andaman and Nicobar Islands, Andhra Pradesh, Assam, Arunachal Pradesh, Bihar, Chandigarh, Goa, Haryana, Jammu and Kashmir, Karnataka, Madhya Pradesh, Maharashtra, Mizoram, Meghalaya, Manipur, Punjab, Rajasthan, Sikkim, Tripura, Himachal Pradesh, Pondicherry, Nagaland, Daman and Diu, Uttarakhand, Dadra and Nagar Haveli, Lakshadweep, Uttar Pradesh, Delhi, Gujarat, Tamil Nadu, Telangana, Kerala, Jharkhand, Central India, Odisha, West India, Chhattisgarh, All India

Certifications
AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.

About Hydrostatic Pressure Apparatus

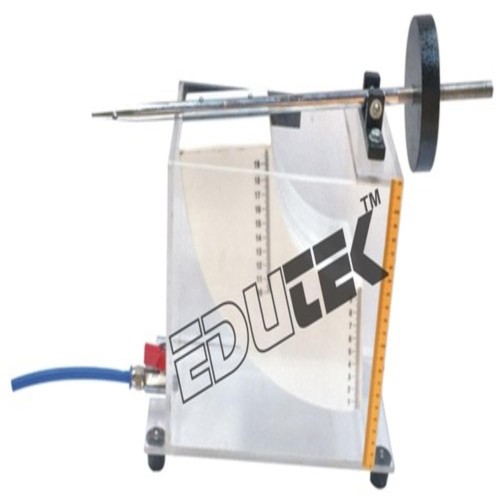

Hydrostatic Pressure Apparatus

Description: The weight of fluids at rest causes a pressure that is known as hydrostatic pressure or gravitational pressure. This pressure acts on any area that is in communication with the fluid, exerting a force that is proportional to the size of the area.
The effect of hydrostatic pressure is highly important in many fields of engineering: in shipbuilding, in hydraulic engineering when designing locks and weirs, in sanitation and building services.
The experimental unit offers typical experiments to study hydrostatic pressure in liquids at rest. The effect of the hydrostatic pressure of water can be clearly shown at different water levels and angles of inclination.
The experimental unit consists of a transparent, tilting water tank with a scale for measuring volumes. Another scale is used to adjust the angle of inclination of the water tank. The device is balanced by a lever arm using different weights and the compressive force measured.
The well-structured instructional material sets out the fundamentals and provides a step-by-step guide through the experiments.

FEATURES:

Determination of forces on surfaces under hydrostatic pressure.

SPECIFICATION

Investigation of the hydrostatic pressure in fluids at rest.
Tiltable water tank with fill level scale.
Lever arm with different weights.

TECHNICAL DATA

Water tank

inclination angle: 0° to 90°
content: 0...1,8L
scale: 0...250mm
effective area, max. 75x100mm

Lever arm

- max. length 250mm

Weights
- 1x 2,5N
- 1x 2N
- 2x 1N
- 1x 0,5N

Precision and Versatility for Laboratory Testing

The Hydrostatic Pressure Apparatus ensures thorough pressure testing of pipes and fittings with its robust 25-liter tank and universal connectivity. Its analog pressure gauge delivers readings from 0-10 kg/cm, suitable for various laboratory settings. Along with a polished stainless steel finish and corrosion-resistant build, this apparatus is designed for longevity and reliability.

Compliant and Safe Testing in Accordance with Global Standards

Designed to conform to IS: 4984 and ISO 1167 standards, this apparatus provides safe and standardized testing results. Overpressure protection, pressure release valve, and leak-proof construction safeguard users and samples, making it a preferred choice for laboratories prioritizing quality and safety.

FAQs of Hydrostatic Pressure Apparatus:

Q: How is the hydrostatic pressure test performed with this apparatus?

A: To conduct a hydrostatic pressure test, connect your sample pipe or fitting to the test tank using the universal fittings provided. Fill the tank with water, set the required pressure using the manual pressure pump, and monitor the analog gauge. The test is carried out according to IS: 4984 or ISO 1167, and the apparatus includes built-in safety features for reliable operation throughout the procedure.

Q: What applications is this Hydrostatic Pressure Apparatus best suited for?

A: This apparatus is ideal for testing the hydrostatic pressure resistance of pipes, tubes, and fittings in laboratory settings. It is particularly useful for manufacturers, exporters, and suppliers who need to ensure product compliance with international standards and guarantee quality in their plastic piping products.

Q: When should the overpressure protection valve be used?

A: The overpressure protection valve automatically engages if internal pressure exceeds the equipments capacity (10 bar standard), preventing potential damage or accidents. Regular checks and maintenance are recommended, but the valve is designed to activate only during excessive pressure situations.

Q: Where is this apparatus typically installed or operated?

A: This bench-top, portable apparatus is specifically designed for use in indoor laboratory environments. Its compact dimensions (700 mm x 450 mm x 500 mm) and robust construction make it fit for use on laboratory workbenches and other research/testing facilities.

Q: What is the benefit of using a polished stainless steel tank with brass fittings?

A: The use of polished stainless steel for the test tank and brass for the fittings provides exceptional corrosion resistance, easy maintenance, and enhanced durability. This ensures consistent performance and a long equipment lifespan, even with frequent exposure to water and varying pressures.

Q: How accurate are the pressure measurements with this model?

A: The Hydrostatic Pressure Apparatus delivers pressure readings through analog gauges with an accuracy of 1% Full Scale Deflection, ensuring that all test results are precise and reliable for quality assurance and certification purposes.
