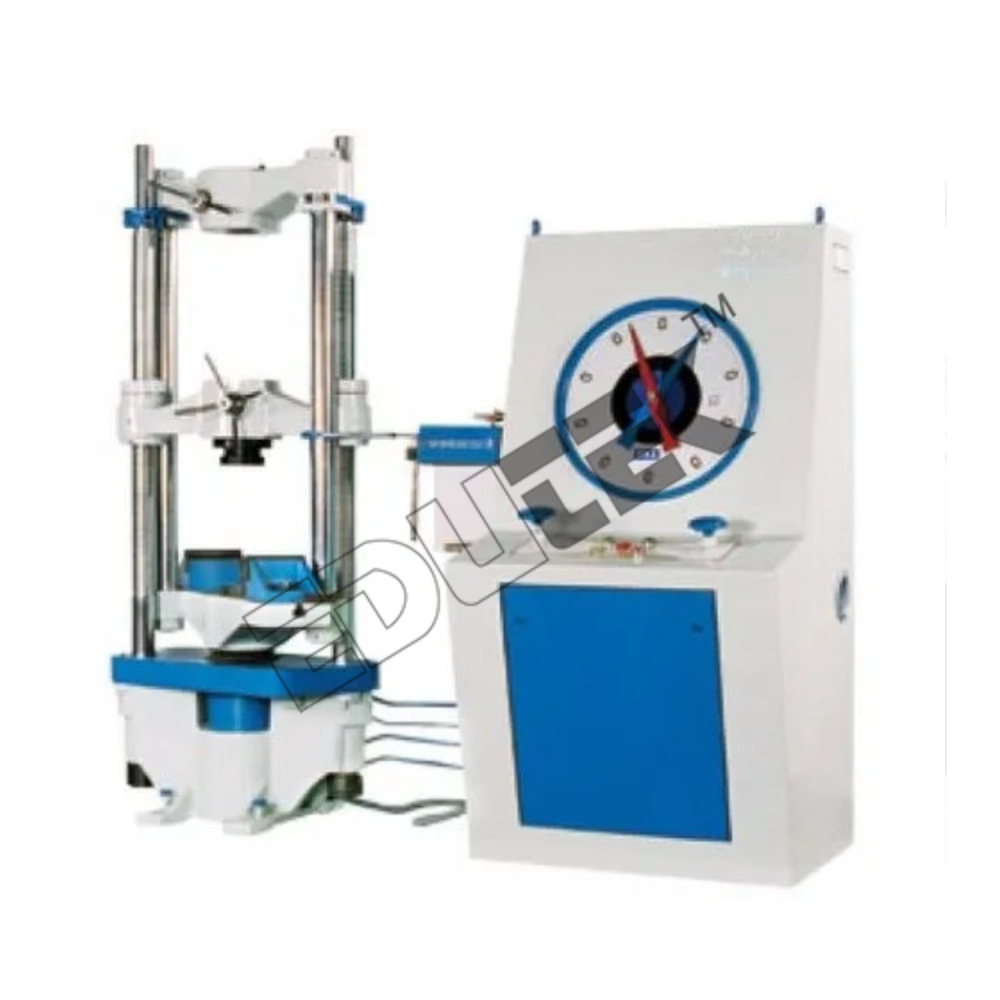

Standard Universal Testing Machine

Price 1000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Standard Universal Testing Machine Specification

Frequency
50 Hz

Application
Tensile, Compression, Bending & Shear testing of materials

Voltage
415 V AC

Color
Blue, Grey, or as per customer requirement

Resolution
0.01 kN

Power
3 Phase AC, 415V, 50Hz

Machine Speed
Range: 0.5 to 50 mm/min

Power Source
Electric

Operating Temperature
+10C to +45C

Accuracy
1% of indicated load

Weight
900 kg (approx., varies by capacity)

Stroke Length
Up to 200 mm (can vary)

Product Type
Standard Universal Testing Machine

Phase
3 Phase

Capacity
Up to 100 kN

Screw Size
32 mm or as per machine design

Power Consumption
2.5 kW

Load Capacity
100 kN (can vary as per model: 10 kN, 20 kN, 50 kN, 100 kN, 200 kN, etc.)

Sensor
High precision Load Cell

Dimension (L*W*H)
Approx. 900 mm x 600 mm x 2000 mm (may vary by model)

Control System
Microprocessor based / Computerized control system

Speed Range
0.5 to 50 mm/min (adjustable)

Features
Digital/analogue display, automatic data recording, safety interlocks

Automatic Grade
Semi-Automatic/Automatic

Material
Mild Steel Structure with clad covers

Testing Standards
Conforms to IS, ASTM, and other international standards

Calibration
Supplied with traceable calibration certificate

Software Features
Test curve plotting, result storage, reporting

Operator Interface
Touch-screen or soft keypad

Noise Level
< 70 dB

Frame Construction
Two Column rugged welded steel body

Display Type
Digital/Computerized

Crosshead Travel
Max. 700 mm

Ambient Humidity
Up to 85% RH

Grips/Fixtures
Interchangeable for different test types

Data Output
USB/RS232 for PC connectivity

Safety Features
Emergency stop, overload protection

Accessories
Extensometer, compression plates, bending fixtures, etc.

Displacement Measurement
Digital LVDT with 0.01 mm resolution

Paint Finish
Powder coated rust resistant

Standard Universal Testing Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Middle East, Africa, Eastern Europe, Western Europe

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Standard Universal Testing Machine

Standard Universal Testing Machine

FEATURES:

Loading Accuracy +/- 1 %
Variable Straining Speeds
Continuous Autographic Recorder
Adjustable Lower Cross-head
Simple Control Operation
Special Test Attachments / Accessories
Rigid Construction
Safety Arrangements.

Advanced Displacement Measurement

Utilizing a digital LVDT sensor with an exceptional 0.01 mm resolution, this testing machine provides highly accurate measurement of displacement during material testing. The real-time data enables precise plotting of stress-strain curves and detailed analysis according to international standards. The advanced electronics ensure consistent performance, making it suitable for both quality control and research applications.

Safety and Robust Construction

With built-in emergency stop and overload protection features, the machine guarantees operator safety during all testing processes. Its two-column welded steel frame is designed for enhanced rigidity and long-term durability, even under maximum load conditions. Powder-coated rust-resistant finish and noise level under 70 dB ensure both longevity and a comfortable working environment.

Versatile Operation & Intuitive Interface

Interchangeable grips and a variety of fixtures, such as extensometers and compression plates, make the Universal Testing Machine suitable for diverse material tests. The operator interface is user-friendly, featuring a touch screen or soft keypad, and the microprocessor/computerized control system enables automated data recording, easy test configuration, and effortless report generation.

FAQs of Standard Universal Testing Machine:

Q: How do I connect the testing machine to my computer for data transfer?

A: The Universal Testing Machine provides USB and RS232 data output ports, allowing easy and direct connectivity to your PC. Simply use the provided cables and install the accompanying software to facilitate real-time data monitoring, curve plotting, and report generation.

Q: What materials and tests can this machine perform?

A: This machine is suitable for a wide range of materials including metals, polymers, and composites. It performs tensile, compression, bending, and shear testing using interchangeable grips and fixtures, conforming to IS, ASTM, and other international standards.

Q: When should I calibrate the machine, and is certification included?

A: Calibration should typically be performed annually or as per your internal quality procedures. Each machine is supplied with a traceable calibration certificate, ensuring compliance with relevant standards. Re-calibration services can be arranged via the manufacturer or certified agencies.

Q: What safety features does the Universal Testing Machine offer?

A: For user safety, the machine includes an emergency stop button and overload protection system. These ensure immediate halting of the test in the event of abnormal operation or excessive loading, safeguarding both operator and equipment.

Q: Where can the machine be installed, and what are the environmental requirements?

A: The machine is designed for laboratory or industrial environments with an ambient temperature between +10C and +45C and humidity up to 85% RH. A stable power supply of 415V, 3-phase AC, is required for operation.

Q: What benefits does the digital LVDT and software system provide?

A: The digital LVDT offers high-precision displacement readings at a 0.01 mm resolution, while the software enables automatic data capture, real-time test curve plotting, storage, and customizable result reporting, facilitating insightful analysis and efficient documentation.
