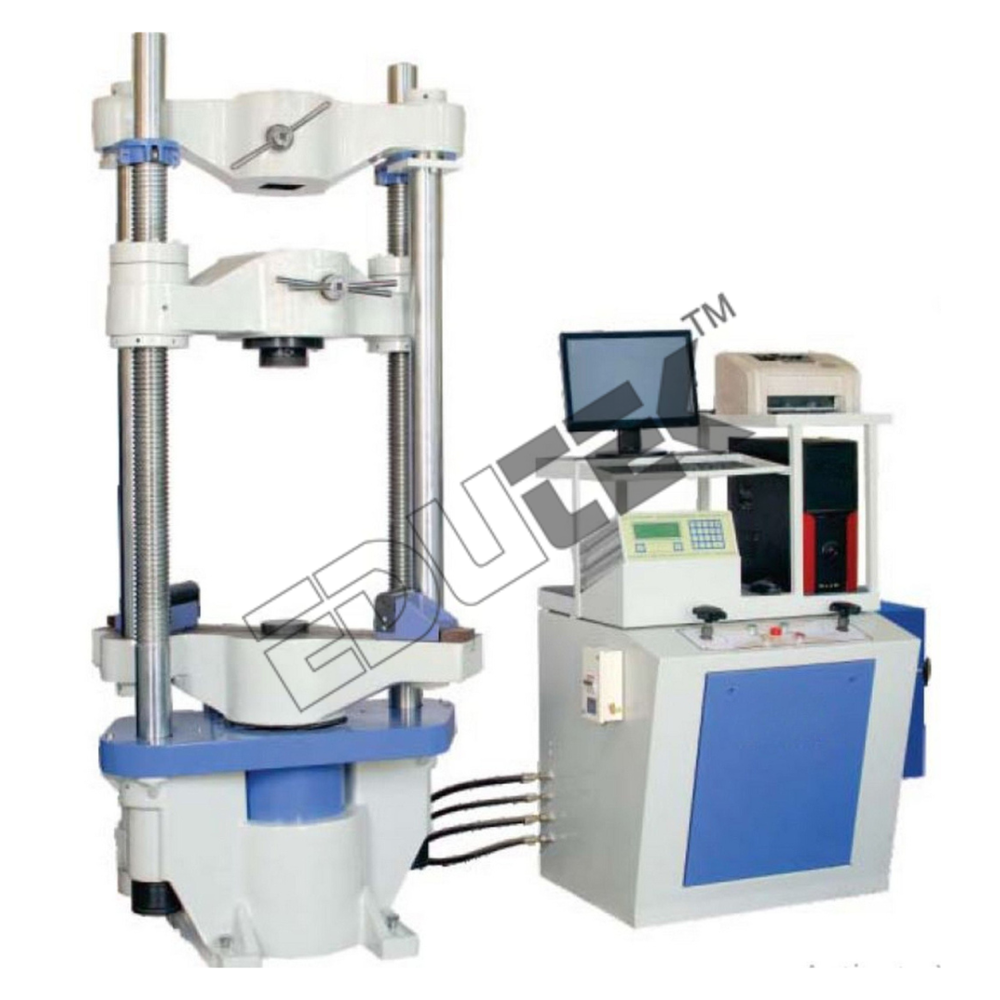

Computerized Universal Testing Machine

Get a Price/Quote

MOQ : 1 Unit

Computerized Universal Testing Machine Specification

Voltage
230 V AC

Load Capacity
200 kN (20 Ton)

Control System
Servo Motor Controlled, Dedicated Software Interface

Operating Temperature
10C to 45C

Application
Tensile, Compression, Bend, Shear Test on Materials

Screw Size
Lead Screw 50 mm dia.

Capacity
200 kN (customizable options available)

Resolution
0.01 kN

Stroke Length
600 mm

Product Type
Computerized Universal Testing Machine

Power Source
Electric

Speed Range
0.01 - 500 mm/min

Frequency
50 Hz

Machine Speed
0.01500 mm/min

Power
2 kW

Dimension (L*W*H)
1000 x 700 x 2200 mm

Power Consumption
2 kW

Features
Microprocessor-based Control, Real-time Graph, Data Storage, Report Generation, Overload Protection

Accuracy
1%

Phase
Single Phase

Sensor
High Precision Load Cell

Color
Blue & Grey

Weight
Approx 1500 kg

Automatic Grade
Automatic/Computerized

Material
Mild Steel Frame / Hardened Steel Grips

Data Output
USB, RS232, and LAN Port

Grip Type
Interchangeable Wedge & Compression Grips

Interface Language
English

Crosshead Travel
700 mm

Graphical Output
Real-time Load vs. Extension/Displacement Graphs

Operating Humidity
Up to 85% RH

Memory Storage
Large Internal Memory and Export to CSV/Excel

Data Analysis Functions
Statistical Evaluation, Result Comparison

Display Type
Digital / PC Interface

Testing Standard Compliance
ASTM, ISO, BIS Standards

Safety Feature
Emergency Stop, Overload/Over-travel Protection

Software Compatibility
Windows 10/11

Computerized Universal Testing Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cheque, Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID), Cash Advance (CA)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Middle East, Western Europe, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Computerized Universal Testing Machine

Computerized Universal Testing Machine

Specifications:

Control Unit.
Capacity : Available from 5 to 300 Ton.
Min Resolution: 1/10000.
Accuracy: 1%.
Driving Method: Hydraulic System.
Ram Stroke(mm): from 100 to 250 depending upon machine capacity.
Effective Column Interval(mm): 300 to 750 depending upon machine capacity. Cross head Speed(mm/min): from 50 to 100 depending upon machine capacity. Testing Speed(mm/min): from 50 to 250 depending upon machine capacity.
Machine weight : 1500 to 4000kg depending upon machine capacity.
Power: 220/440V, 50HZ or as desired by customers.
Tension (mm): Max.Space:700, Grip for Rod: 10 ~ 70, Grip for Plate: 13~ 65x90. Compression: Max.Space: 700, Compression Plate:160 (Dia.).
Transverse & Bending (mm): Max.Space:810, Punch Tip:R22x140,Roller: 50 (Dia.) x161.
Above three specifications shall depend upon machine capacity. With one set of testing program software.

Versatile Material Testing Capability

This Universal Testing Machine accommodates multiple mechanical tests, including tensile, compression, bending, and shear, supporting a wide variety of materials. Its modular grip system allows for quick changes between wedge and compression grips, ensuring adaptability in R&D, QA, and production environments.

User-Friendly, Advanced Control Interface

Equipped with a digital and PC interface, the machine incorporates microprocessor-based control and dedicated software compatible with Windows 10/11. Real-time load versus extension graphs, data storage, and statistical evaluation functions empower precise analysis and effortless report generation.

Compliance and Safety Assured

Manufactured in accordance with ASTM, ISO, and BIS standards, this instrument delivers reliable results while safeguarding users with emergency stop, overload, and over-travel protection. Its sturdy mild steel frame and hardened steel grips contribute to durability and longevity.

FAQs of Computerized Universal Testing Machine:

Q: How does the computerized universal testing machine ensure accurate test results?

A: The machine uses a high-precision load cell and servo motor-controlled system, providing measurement accuracy within 1%. Real-time data capture, statistical evaluation, and result comparison functions help maintain consistency and reliability in results.

Q: What materials and tests can be performed with this universal testing machine?

A: It is suitable for tensile, compression, bending, and shear tests on a variety of materials, including metals, composites, and plastics. The interchangeable wedge and compression grips offer flexibility for different specimen types.

Q: When should the emergency stop feature be utilized?

A: The emergency stop feature should be activated if there is any unexpected malfunction or safety concern during testing. This instantly halts all operations, preventing accidents and equipment damage.

Q: Where can the test data be accessed or exported from the machine?

A: Test data can be viewed directly via the digital display or on a connected PC. Data is stored internally and can be exported in CSV or Excel formats through USB, RS232, or LAN ports, allowing for further processing and archiving.

Q: What is the process for changing between wedge and compression grips?

A: To switch grips, simply disengage the current attachment and secure the required wedge or compression grip using the machines user-friendly quick-release mechanism. Always ensure the machine is powered down or idle before making changes.

Q: How does this testing system support efficient data analysis and report generation?

A: The dedicated software provides real-time graphical outputs, statistical evaluation tools, and report generation features. Users can analyze test results, compare with past data, and export comprehensive reports for record-keeping or compliance purposes.

Q: What are the main benefits of using this universal testing machine for manufacturing and research applications?

A: Key advantages include wide test capacity (up to 200 kN), high accuracy, compliance with international standards, efficient data management, advanced safety features, and robust construction, making it ideal for manufacturers, suppliers, and research labs.
