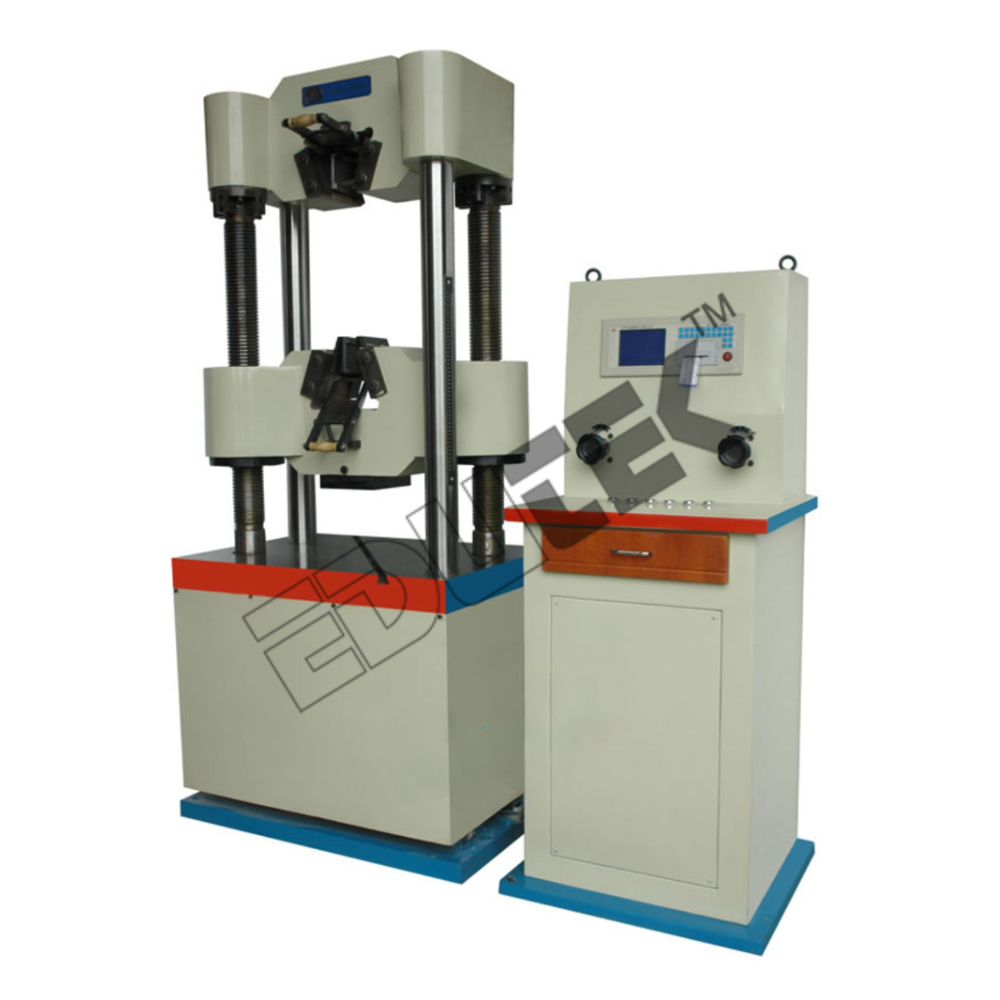

Compact Digital Universal Tester

Price 1000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Compact Digital Universal Tester Specification

Capacity
10 kN

Resolution
0.01 mm

Power
Single Phase AC

Machine Speed
Variable, programmable

Phase
Single Phase

Frequency
50 Hz

Load Capacity
10 kN

Sensor
High-precision load cell

Features
Digital Display, Compact Table Top Design, Overload Protection, User-friendly Interface

Accuracy
1% of indicated load

Speed Range
0.05 500 mm/min

Dimension (L*W*H)
Approx. 820 x 580 x 1850 mm

Control System
Microprocessor Based

Weight
Approx. 250 kg

Stroke Length
600 mm

Application
Tensile, Compression, Bending Tests for metals, plastics, rubbers, textiles

Color
White/Blue

Product Type
Compact Digital Universal Tester

Operating Temperature
5 to 45C

Power Consumption
750 W

Screw Size
Customized ball screw

Power Source
Electric

Voltage
220 V AC

Automatic Grade
Semi-automatic, Digital Control

Material
Mild Steel (Frame); powder-coated

Sample Holding Range
Varies with grips (standard: 030 mm)

Noise Level
<65 dB

Pre-load Device
Included

Language Support
English (default), others optional

Crosshead Travel
600 mm (standard)

Software Compatibility
Dedicated analysis software for PC

Safety Device
Emergency Stop Switch

Frame Construction
Heavy-duty, vibration-resistant construction

Data Output
USB port, RS232 Interface

Test Methods Supported
Tension, Compression, Bending, Shear

Memory Storage
Internal memory & export to PC

Fixture Types
Customizable grips/fixtures for multiple sample types

Display Type
Large digital LCD display

Compact Digital Universal Tester Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cheque, Telegraphic Transfer (T/T), Cash in Advance (CID), Cash Advance (CA), Letter of Credit (L/C)

Delivery Time
1 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Eastern Europe, Western Europe, Middle East, Africa, Asia

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Compact Digital Universal Tester

Compact Digital Universal Tester

Compact Digital Universal Tester is a space saving unit and cumulation of years of experience by one of the world's leading manufacturers of materials testing machines. This tester is designed for a wide range of applications including Bend, Compression, Tensile, Shear, Brinell Hardness and various other tests using appropriate test attachments which are optional.
The tester offers excellent accuracy and ease of use. It is strong and durable enough to withstand many years of use, yet it has a compact load frame that provides greater flexibility of placement. Whether you choose the basic unit or add the optional attachments/grips, the tester sets the standard in universal testing.
The load cell used in this tester offer one-touch zero adjustment and load cell capacity discrimination guarantees accuracy and speeds the setup process.
Loading Accuracy as high as + 1% Variable Straining Speeds.
The basic frame allows a total jaw separation of 700 mm. However, extended frame having jaw separation up-to 2000 mm may be supplied at additional cost.

Intuitive Control with High-Precision Display

Equipped with a large digital LCD, the tester ensures clear and accurate readouts during operation. The user-friendly interface streamlines test setup and monitoring, enabling technicians to make precise adjustments with ease. Microprocessor-based controls and real-time feedback provide both reliability and efficiency in daily testing routines.

Versatile Testing Capabilities

Supporting a broad spectrum of mechanical testsincluding tension, compression, bending, and shearthis universal tester is adaptable for metals, plastics, rubbers, and textiles. Interchangeable, customizable grips and fixtures accommodate diverse sample shapes and sizes. The 600 mm stroke and variable speed control further expand its practical range for research, quality control, and educational purposes.

Easy Data Management and Analysis

Test results can be seamlessly exported to a PC via USB or RS232. Dedicated analysis software allows detailed evaluation and report generation. The internal memory ensures reliable storage, while multilingual support (default: English) enhances accessibility for international teams.

FAQs of Compact Digital Universal Tester:

Q: How does the USB and RS232 data output benefit my workflow?

A: The USB and RS232 interfaces allow for quick transfer of test data to your computer, streamlining documentation, analysis, and reporting. This connectivity supports integration with dedicated PC software, enabling efficient analysis and seamless data management.

Q: What types of tests can this universal tester perform?

A: The Compact Digital Universal Tester is designed to conduct tension, compression, bending, and shear tests, making it ideal for evaluating the mechanical properties of metals, plastics, rubbers, and textiles.

Q: When should I use the emergency stop switch?

A: The emergency stop switch is provided as a safety precaution and should be pressed immediately if any unsafe condition arises during testing. It rapidly halts all machine operations to prevent accidents or equipment damage.

Q: Where can this tester be installed and used effectively?

A: Due to its compact, vibration-resistant construction and moderate noise level, this universal tester can be installed in research labs, quality control environments, and manufacturing facilities. Its semi-automatic operation suits both central laboratories and production testing stations.

Q: What is the process for conducting a typical test?

A: Select and install the appropriate grips for your sample, configure the test parameters via the digital control panel, and load the specimen. Start the test using the user-friendly interfaceresults will appear on the LCD and can be saved to internal memory or exported to a PC for analysis.

Q: What are the key benefits of the dedicated PC analysis software?

A: The provided analysis software simplifies result interpretation, enables customizable reporting, and ensures compliance with industry standards. It aids in archiving, trend analysis, and sharing of data across your organization.

Q: How does this tester ensure accuracy and repeatability?

A: A high-precision load cell, programmable controls, and a robust ball screw drive deliver test accuracy within 1% of the indicated load. The heavy-duty frame minimizes vibrations, supporting consistent, repeatable measurements across testing cycles.
