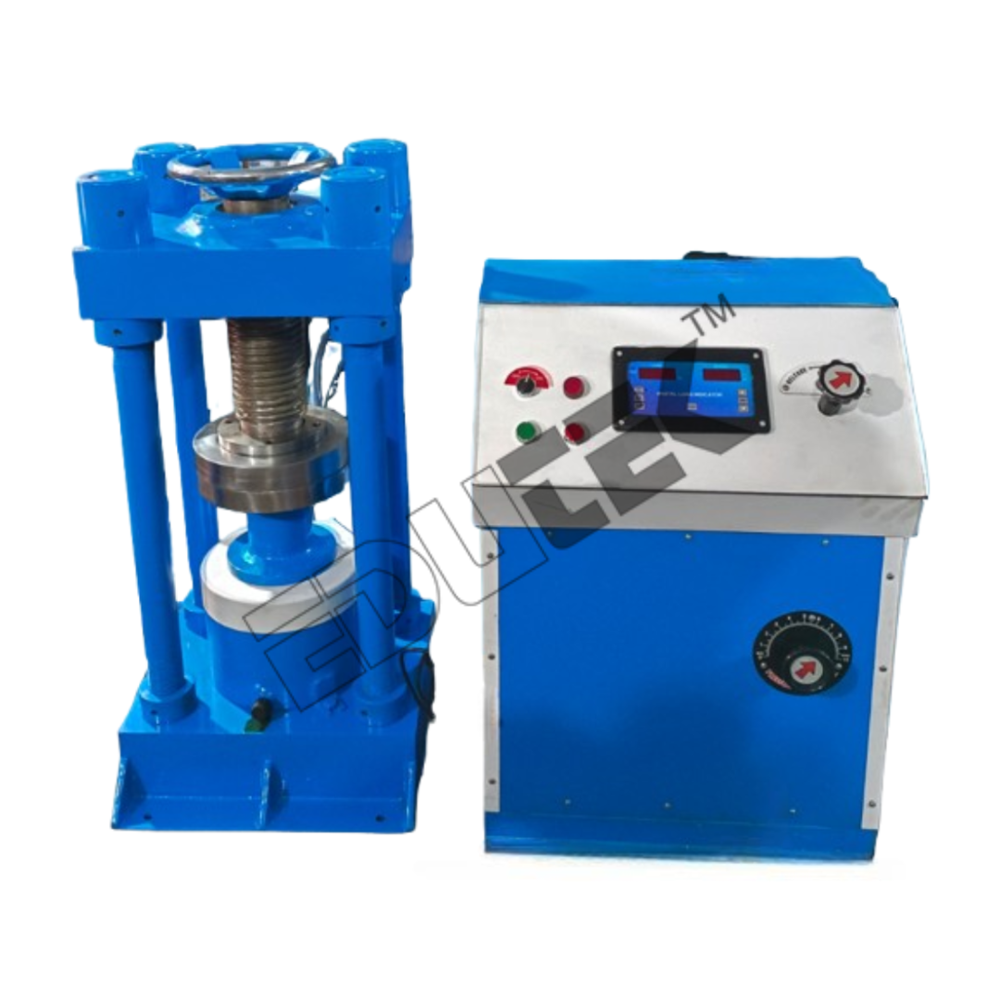

Compression Testing Machine Digital

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Compression Testing Machine Digital Specification

Application
Testing concrete, bricks, blocks & other construction materials

Capacity
2000 kN

Power
2 HP Electric Motor

Phase
Single Phase

Power Source
Electric

Speed Range
0.1-5 mm/min

Voltage
220 - 240 V AC

Weight
Approx. 600 kg

Product Type
Digital Compression Testing Machine

Stroke Length
50 mm (Platen Movement)

Operating Temperature
5C to 45C

Power Consumption
1.5 kW

Features
Digital LCD display, Auto load calibration, Safety limit switches, Data storage

Screw Size
50 mm dia. lead screw

Dimension (L*W*H)
850x650x1350 mm

Resolution
0.1 kN

Accuracy
1% of indicated load

Control System
Microprocessor Based Control Panel

Load Capacity
2000 kN (200 Ton)

Color
Blue/Grey with digital console

Machine Speed
0.5 mm/min nominal

Sensor
Load cell based

Frequency
50 Hz

Automatic Grade
Semi-Automatic

Material
Mild Steel Body, Hardened Platens

Environmental Standards
Meets IS:516, ASTM C39, BS1881 standards

Platen Size
220 mm diameter (Upper & Lower Platens)

Memory
Last 100 Tests Auto Storage

Data Output
USB and RS232 compatibility for data transfer

Language Support
Multilingual menu (English default)

Noise Level
Below 65 dB during operation

Calibration
Factory calibrated with calibration certificate

Display Type
Digital LCD with backlight & overload indication

Sample Types
Cubes, Cylinders, Prisms etc.

Rate of Loading
Variable, electronically controlled

Safety
Emergency stop and safety guards

Service Support
Onsite installation and training available

Accessories Included
Spacer blocks, Calibration certificate, User manual

User Interface
Panel-mounted tactile keys

Compression Testing Machine Digital Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Compression Testing Machine Digital

Compression Testing Machine Digital

2000KN (200 Tons)/ 3000 KN (300 Tons) Capacity (Two Pillar Model) Electrically .Operated fitted with Digital Load Indicator with accuracy of 1KN. The digital load indicator incorporates peak hold facility and relay contact to protect the machine from overloading. The Machine is suitable for operation on 440V, 3-phase, AC supply.

The machine is calibrated against a NPL/NCCBM certified proving ring.

Precision Control & Versatile Testing

Engineered with a microprocessor-based control system, this machine allows precise adjustment of loading rates to test different construction samplescubes, cylinders, and prisms. The digital LCD interface, combined with tactile panel keys and multilingual support, offers intuitive operation for users at all expertise levels. Automatic calibration ensures each test meets stringent accuracy requirements, providing reliable results for quality assurance.

Enhanced Safety & User-Focused Design

Safety features such as emergency stop, overload indication, and safety guards create a secure testing environment. The low-noise operation and robust mild steel body with hardened platens ensure durability and comfort during repeated use. The memory retains the last 100 tests, while the USB/RS232 interface enables convenient data transfer for efficient reporting and record-keeping.

Comprehensive Standards Compliance

This compression testing machine meets prominent international standardsIS:516, ASTM C39, and BS1881guaranteeing globally recognized accuracy and reliability. Each machine comes factory calibrated with a certificate, ensuring consistent performance right from installation. Onsite installation and training support empower users to maximize productivity and maintain compliance throughout the equipment lifespan.

FAQs of Compression Testing Machine Digital:

Q: How is the calibration of the compression testing machine performed and documented?

A: The compression testing machine is factory calibrated before delivery, ensuring precise measurement accuracy within 1% of indicated load. Each unit is accompanied by an official calibration certificate compliant with IS:516, ASTM C39, and BS1881 standards, verifying its performance and calibration status.

Q: What types of samples can this machine test, and which applications is it best suited for?

A: This machine is designed to test a variety of construction materials, including cubes, cylinders, prisms, bricks, and blocks. It is ideally used in concrete laboratories, construction sites, and educational institutions for assessing compressive strength and material performance.

Q: When does the machine provide overload indication, and how does it enhance safety?

A: The machines digital LCD display offers real-time overload indication whenever the applied load exceeds safe operational limits. Combined with emergency stop and safety guards, this feature ensures immediate risk mitigation and operator safety during critical testing operations.

Q: Where can the stored test data be accessed, and how is data transferred?

A: Test data, including results from the last 100 tests, are auto-stored in the machines memory. Users can retrieve this data via the machines USB or RS232 ports, facilitating straightforward transfer to computers or other devices for further analysis and reporting.

Q: What is the process for operating the machine and customizing test parameters?

A: Operation is managed through panel-mounted tactile keys on the digital LCD console. Users can set test parameters such as rate of loading (0.15 mm/min) and select the desired sample type. The multilingual menu ensures accessibility for a diverse range of operators.

Q: How does the machines compliance with international standards benefit users?

A: By meeting IS:516, ASTM C39, and BS1881 standards, the machine delivers test results recognized by regulatory bodies, quality assurance programs, and construction clients worldwide. This ensures credibility, consistency, and acceptance in professional and legal contexts.
