Metallurgical Microscope Specification

Usage
Laboratory

Product Type
Metallurgical Microscope

Spare Parts
Halogen bulb, fuse, immersion oil, cleaning cloth, dust cover.

Application
Research Microscope

View Head
Binocular/Trinocular inclined at 30 , rotatable 360 .

Focus System
Coaxial coarse and fine focusing adjustment knobs.

Dimension (L*W*H)
Approx. 380 x 220 x 450 mm (L x W x H). Millimeter (mm)

Material
Mild steel

Features
Rigid metallic stand, anti-fungal optics, smooth focusing, ergonomic design, suited for metallography and industrial labs.

Theory
Other

Drawtube
Other

Sensor
Compatible with digital imaging systems (camera adapter optional).

Resolution
Optical, up to 1000x total magnification; camera up to 5MP (optional).

Interface
USB (with camera, optional), mechanical/micrometric controls.

Frame Rate
Up to 30 fps (with digital camera, optional).

Focal Distance
45 mm (with standard objectives). Millimeter (mm)

Magnification
Overall: 100x, 200x, 400x, 1000x (with supplied objective and eyepiece lenses).

Dimensions
Approx. 380 x 220 x 450 mm (L x W x H). Millimeter (mm)

Focus Range
Coarse: 30mm; Fine: 0.002mm per division. Millimeter (mm)

Eyepieces
Wide Field 10x (paired), with diopter adjustment.

Eyepiece Tube
Inclined; Interpupillary adjustment available.

Illumination
6V/20W halogen lamp with field diaphragm; adjustable brightness; incident and transmitted illumination.

Coarse Adjustment Range
30 mm coarse stroke.

Fine Adjustment Range
0.002 mm per division.

Working Stage
Rectangular mechanical stage, size approx. 135x140 mm, movement range 70x30 mm; low-position coaxial controls. Square Millimeter (mm2)

Still Image Capture Resolution
Up to 5MP (with digital camera, optional).

Video Capture Resolution
HD 720p/1080p (with digital camera, optional).

Image Format
JPEG, BMP, PNG (when digital camera attached, otherwise direct observation).

Interpupillary Distance
55-75 mm adjustable. Millimeter (mm)

Objective Achromatic
Achromatic objectives 10x, 20x, 40x, 100x (oil immersion).

Condenser
Not required (reflected light); optional Abbe condenser for transmitted light.

Light Source
Halogen 6V/20W (with step-up transformer); long service life.

Body Material
Heavy-duty die-cast metal frame with anti-rust finish.

Optional Accessories
Digital camera, image analysis software, measurement calibration slide.

Packed Weight
Approximately 9 kg.

Operating Temperature
10C to 40C; non-condensing humidity.

Power Supply
AC 220V/110V, 50Hz/60Hz, with built-in transformer.

Color Filter
Blue, green, and neutral density filters included.

Nosepiece
Quadruple, revolving, ball bearing mechanism.

Stage Movement
Coaxial X-Y mechanical movement with graduations.

Dust Cover
Provided for protection during storage.

Metallurgical Microscope Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Metallurgical Microscope

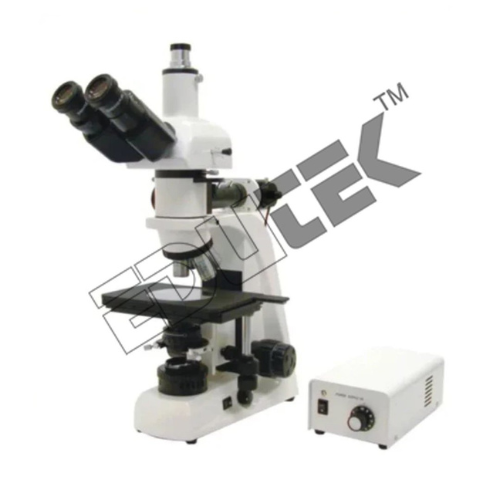

Metallurgical Microscope ETMS-138

has bright field vertical illuminator with high intensity low voltage lamp 6V-15W with adjustable field and aperture, iris-diaphragm with slots for dropping coloured filters.

It provides excellent bright field in incident illumination of opaque and semi-opaque specimen. The same can be used as normal Pathological microscope. Provided with triple revolving nose piece, built-in co-axial mechanical stage. Supplied in Plywood box.

ETMS-138 :
Monocular inclined observation at 45 rotatable through 360 with wide field eyepiece 10X and huygenian eye pieces 15X or 5X paired (2 Nos.) and objectives : M10X, M40X (spring loaded).

Magnification : 50X to 600X.

ETMS-138(i)
Binocular observation head inclined at 45 rotatable through 360with wide field eyepiece 10X and huygenian eyepieces 15X or 5XPaired-(2 Nos.) Objectives : M10X, M40X (spring loaded).

Magnification : 50X to 600X.

ETMS-138(ii)
Trinocular observation head inclined at 45 rotatable through360 with wide field eye piece 10X and huygenian eyepieces 15Xor 5X (Paired)-(2 Nos.) and objectives : M5X, M10X, M45X(spring loaded).

Magnification : 25X to 675X.

ETMS-138(iii)
Trinocular observation head seidentopf rotatable through 360 with wide field eye piece 10X and objectives : M5X, M10X, M45X (spring loaded). Coaxial Focussing

Magnification : 25X to 675X.

Engineered for Metallographic Precision

Specially designed for metallurgical research, this microscope ensures clear visualization of microstructural details in metals and alloys. The advanced optical system and anti-fungal optics provide distortion-free images at high magnification, helping professionals identify structural characteristics crucial for quality control and research in metallurgy.

Robust Construction and Ergonomic Features

Built on a heavy-duty, anti-rust metal frame, the microscope boasts durability and stability even during demanding use. Its ergonomic, inclined viewing and low-position coaxial controls enhance user comfort, while smooth focusing mechanisms ensure accurate and fatigue-free operation during extended sessions in industrial or educational labs.

Versatile Imaging and Documentation

Equipped with options for digital camera integration and image analysis software, the microscope captures high-definition (HD 720p/1080p) images and videos for detailed measurements, reporting, or archiving. The system supports a variety of image formats and USB connectivity, making documentation and data sharing efficient and convenient.

FAQs of Metallurgical Microscope:

Q: How does the coaxial X-Y stage movement benefit metallurgical examinations?

A: The coaxial X-Y mechanical stage allows for precise and smooth movement of specimens in both the horizontal and vertical directions with calibrated graduations. This enables users to systematically scan and analyze specific areas of metal samples with high accuracy, essential for detailed metallographic studies and quality assurance.

Q: What is the purpose of the included color filters in this microscope?

A: The microscope is supplied with blue, green, and neutral density filters. These filters enhance contrast and optimize lighting conditions for different specimen types, which helps in distinguishing subtle differences in the microstructure of metals and alloys during reflected light observation.

Q: When should the optional digital camera and image analysis accessories be used?

A: The optional digital camera and image analysis software are ideal for applications that require documentation, quantitative measurements, or sharing results. Use these accessories when you need high-resolution imaging (up to 1080p, 5MP stills), archiving findings, or performing calibrated measurements for reporting and research.

Q: Where can this microscope be effectively utilized?

A: This metallurgical microscope is best suited for industrial quality control labs, metallography research centers, educational institutions, and manufacturing facilities. Its robust construction and advanced optical features cater to a range of environments where metallurgical sample examination is required.

Q: What kinds of samples can be observed with this metallurgical microscope?

A: This microscope is specifically designed for reflected light observation of polished metal and alloy samples. With the optional Abbe condenser, it can also be used for transmitted light applications, making it versatile for examining various opaque and transparent specimens.

Q: How does the ergonomic design enhance user experience?

A: The inclined binocular/trinocular head, adjustable interpupillary distance, and low-position focusing and stage controls reduce operator fatigue during prolonged use. The smooth focusing system and well-placed mechanical controls ensure comfortable and precise manipulation, making the instrument user-friendly for professionals and students alike.
