Trinocular Microscopes

Get a Price/Quote
MOQ : 1 Piece

Trinocular Microscopes Specification

  • Application
  • Research Microscope
  • Material
  • Mild Steel
  • Product Type
  • Trinocular Microscopes
  • Features
  • Anti-fungal coating, ergonomic handle, anti-skid base, dust cover
  • Usage
  • Laboratory
  • Focus System
  • Coaxial coarse & fine focus
  • View Head
  • Trinocular, inclined & rotatable
  • Spare Parts
  • Lamp, fuse, eyepiece, objectives available
  • Theory
  • Other
  • Drawtube
  • Trinocular
  • Sensor
  • CMOS Sensor (for camera attachment)
  • Resolution
  • Up to 1080p (Camera dependent)
  • Interface
  • USB 2.0/3.0 (for camera)
  • Frame Rate
  • Up to 30 fps (camera dependent)
  • Focal Distance
  • 160 mm (standard optical tube length) Millimeter (mm)
  • Magnification
  • 40x 1000x (with objectives 4x, 10x, 40x, 100x)
  • Dimensions
  • Approx. 370 mm x 280 mm x 170 mm Millimeter (mm)
  • Focus Range
  • Coarse and fine adjustment, up to 20 mm Millimeter (mm)
  • Eyepieces
  • WF10x/18 mm
  • Eyepiece Tube
  • 45 inclined, 360 rotatable
  • Illumination
  • LED, adjustable brightness
  • Coarse Adjustment Range
  • 30 mm
  • Fine Adjustment Range
  • 0.002 mm division
  • Working Stage
  • Double-layer mechanical, 125x115 mm Square Millimeter (mm2)
  • Still Image Capture Resolution
  • Up to 1920 x 1080 pixels
  • Video Capture Resolution
  • 1080p (camera dependent)
  • Image Format
  • JPEG, BMP (camera dependent)
  • Interpupillary Distance
  • 55 75 mm adjustable Millimeter (mm)
  • Objective Achromatic
  • 4x, 10x, 40x (S), 100x (S, Oil)
  • Condenser
  • Abbe N.A. 1.25 with iris diaphragm
  • Light Source
  • Built-in LED with variable intensity
  • Power Supply
  • Universal AC 110/220V, 50/60Hz
  • Stage Movement
  • X-Y mechanical movement, precision controls
  • Color
  • White and black finish
  • Body Material
  • Metal die-cast frame with baked enamel finish
  • Camera Compatibility
  • Supports digital camera (not included as standard)
  • Sample Applications
  • Educational, Research, Clinical Laboratory
  • Environmental Conditions
  • 0-40C, <85% RH
  • Sample Holder
  • Spring-loaded clips


Trinocular Microscopes Trade Information

  • Minimum Order Quantity
  • 1 Piece
  • Payment Terms
  • Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
  • Sample Available
  • Yes
  • Sample Policy
  • Sample costs shipping and taxes has to be paid by the buyer
  • Packaging Details
  • carton box, export quality also available
  • Main Export Market(s)
  • Asia, Eastern Europe, Western Europe, Middle East, Africa
  • Main Domestic Market
  • All India
  • Certifications
  • ISO 9001, 14001 ,CE


About Trinocular Microscopes

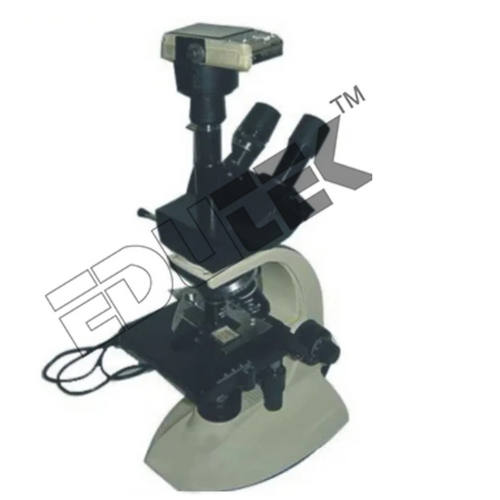

Trinocular Microscopes ETMS-133B

Trinocular Microscopes have structural specifications same as inclined and binocular microscopes but provided with a trinocular observation head which combines a binocular observation head and a vertical single tube for photomicrography. Complete with a built-in coaxial mechanical stage With paired eye-pieces wide field 10x, huygenian eyepieces 5x, 15x, achromatic objectives 5x, 10x, 45x, 100x - oil immersion (spring loaded) with periplan eyepieces P-10x for
photomicrography.



Ergonomic Trinocular Viewing

The trinocular design features an inclined, 360 rotatable head, allowing for comfortable viewing by multiple users and simultaneous camera attachment. Adjustable interpupillary distance (5575 mm) ensures adaptability to different users, while the ergonomic handle and anti-skid base provide safe, stable operation in busy lab environments.


High-Quality Imaging and Versatility

Achieve crisp, detailed images with achromatic objectives (4x, 10x, 40x S, 100x S oil) and a working focal distance of 160 mm. The compatibility with modern digital cameras (supporting up to 1080p and 30 fps) via USB interfaces ensures seamless documentation and analysis, making it ideal for laboratory, research, and educational settings.


Reliable and Durable Construction

Constructed from a metal die-cast frame with baked enamel finish, this microscope promises lasting performance and resistance to laboratory wear. Its anti-fungal coating and dust cover add extra protection, while spare parts like lamps, fuses, and lenses are readily available to maintain uninterrupted operation.

FAQs of Trinocular Microscopes:


Q: How does the trinocular design benefit users during imaging or teaching?

A: The trinocular head enables simultaneous viewing by an operator and a camera, making it possible to project images for teaching or digital recording, ensuring effective demonstrations and documentation without interrupting observation.

Q: What camera systems are compatible with this microscope, and how do I connect them?

A: This microscope supports digital cameras with CMOS sensors (not included), allowing image capture up to 1080p resolution and USB 2.0/3.0 connection. Attach the camera to the trinocular port, then connect it directly to your computer for image acquisition and analysis.

Q: Where can this microscope be used, and for which sample applications is it suitable?

A: Designed for educational, research, and clinical laboratories, it effectively handles biological and prepared specimens. Its versatile magnification and robust build make it ideal for schools, universities, and professional labs in India and abroad.

Q: What are the steps for adjusting focus and positioning samples?

A: Use the coarse adjustment for rapid focus, followed by fine adjustment (up to 0.002 mm division) for precision. The double-layer mechanical stage and X-Y controls, along with spring-loaded sample clips, allow for precise sample placement and movement.

Q: When should I replace spare parts like the lamp or objectives?

A: Replace spare parts when illumination dims significantly, or if objectives or eyepieces show signs of damage or cloudiness. Routine checks and prompt replacement ensure consistent performance and longevity.

Q: How does the built-in illumination system enhance image clarity?

A: The built-in LED light with variable intensity provides consistent, adjustable illumination, permitting detailed observation across various specimen types. The Abbe condenser with iris diaphragm further refines light delivery, enhancing contrast and clarity.

Q: What environmental conditions are required for optimal operation?

A: Operate the microscope in environments between 040C and below 85% relative humidity to ensure stable performance and prevent component degradation.
