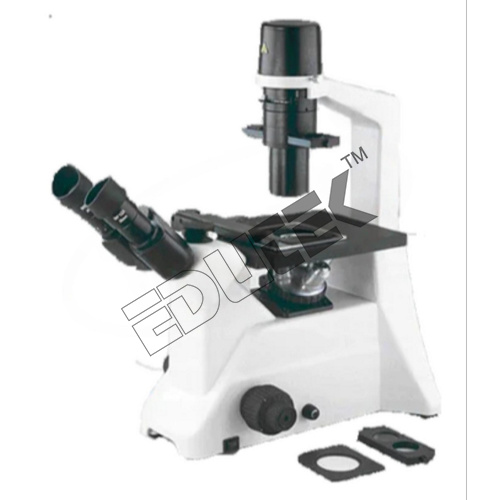

Inverted Tissue Research Culture Microscopes

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Inverted Tissue Research Culture Microscopes Specification

Spare Parts
Dust cover, fuse, and immersion oil

Features
Ergonomic design, anti-fungal optics, suitable for live cell and tissue culture studies

Product Type
Inverted Tissue Research Culture Microscopes

View Head
Siedentopf type trinocular head

Material
Aluminium

Usage
Laboratory

Focus System
Coaxial coarse and fine focusing

Application
Research microscope

Theory
Other

Drawtube
Trinocular

Sensor
High performance color CMOS sensor

Resolution
1920 x 1080 Pixels (Full HD)

Interface
HDMI, USB

Frame Rate
30 fps

Focal Distance
75mm (Standard Working Distance) Millimeter (mm)

Magnification
40x, 100x, 200x, 400x

Dimensions
Approx. 510mm x 280mm x 400mm Millimeter (mm)

Focus Range
Up to 24mm Millimeter (mm)

Eyepieces
Wide field 10x/22mm

Eyepiece Tube
Inclined at 45 , rotatable 360

Illumination
LED illumination with adjustable intensity

Coarse Adjustment Range
23mm

Fine Adjustment Range
0.2mm per rotation

Working Stage
Mechanical stage, size 230x230mm, travel 75x30mm Square Millimeter (mm2)

Still Image Capture Resolution
Up to 5MP

Video Capture Resolution
Full HD 1080p

Image Format
JPEG (still image), MP4 (video)

Interpupillary Distance
48mm 75mm adjustable Millimeter (mm)

Objective Achromatic
Plan Achromatic 4x, 10x, 20x, 40x (spring)

Condenser
ELWD (Extra Long Working Distance) condenser, N.A. 0.3

Light Source
6V 30W halogen lamp (or LED optional)

Stage Plate
Glass and metal stage inserts included

Stage Movement
X-Y mechanical movement with precision controls

Power Supply
AC 220V/50Hz or 110V/60Hz

Camera Port
Integrated trinocular port for digital camera attachment

Operating Environment
Temperature 5C - 40C, Humidity < 80%

Safety Compliance
CE certified

Weight
Approx. 13kg

Color Correction
Infinitely corrected optical system

Inverted Tissue Research Culture Microscopes Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash in Advance (CID), Cheque

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Inverted Tissue Research Culture Microscopes

Inverted Tissue Research Culture Microscopes ETMS-140

Inverted Tissue Research Culture Microscopes (Superier Quality)

nverted microscope is equipped with wide field eyepieces, long working distance plan achromatic objectives and very long working distance condenser and phase contrast unit. It can be observed transparent and unfinished living specimen in culture bottle or culture utensil. It is the
ideal instrument suitable for research of living specimen structure, liquid, and deposits and so on. It also can be used in research institutes, universities, medical treatment, agriculture and animal husbandry, etc.

Features:

Equipped with wide field eyepiece, long working distance plan achromatic objectives.
Equipped with phase contrast unit, include very long working distance condenser, phase contrast objective and centering telescope
Coaxial coarse/fine focus system with tensional adjustable and up stop, minimum division of fine focusing: 2m
6V20W halogen lamp with brightness control

SPECIFICATIONS

Body Type:
All aluminum Body type.

Eyepiece:
Paired WF10X-20mm

Objectives:

LWD Plan Achromat Objective LPL10X/0.25
LWD Plan Achromat Objective LPL25X/0.40
LWD Plan Achromat Objective LPL40X/0.65
LWD Plan Phase Contrast Objective LPL Ph+ 10X/0.25
Condenser N.A.0.35 (W.D. 45/102mm

Head Type:
Seidentopf Trinocular Head (Inclined 45)

Mechanical Stage:
Fixed Stage (With Clips)170mm216mm

Filters:
Filter (Blue) & Filter (Green)

Illumination:
Halogen Lamp 6V/20W

Advanced Visualization for Live Cell Studies

This microscope combines a high-resolution color CMOS sensor with an ergonomic trinocular viewing system, offering superior imaging for live cells and tissue cultures. The incorporated LED or halogen illumination, with adjustable intensity, maintains optimal lighting for sensitive biological samples, providing vivid, clear images.

Precision Mechanics and Optical Correction

Engineered for accuracy, the microscope includes coarse and fine focusing with wide adjustment ranges, as well as X-Y mechanical movement for smooth navigation. Its plan achromatic objectives and infinitely corrected optical system minimize distortions and enhance color fidelity, crucial for research-grade results.

User-Friendly and Safe Research Experience

Featuring an ergonomic, rotatable head, anti-fungal coatings, and a sturdy build, this microscope promotes lasting comfort and safety for all-day lab sessions. CE certification ensures equipment reliability, while a full suite of stage inserts and spare parts supports effortless maintenance and operation.

FAQs of Inverted Tissue Research Culture Microscopes:

Q: How do I attach a digital camera to the trinocular port of the inverted tissue culture microscope?

A: The microscopes integrated trinocular port is designed for seamless digital camera attachment. Simply connect your compatible camera using the camera port, which supports standard interfaces, such as HDMI or USB. Ensure the camera is securely fastened for stable imaging during observations.

Q: What is the process for adjusting the focus and stage movement during cell culture observation?

A: Utilize the coaxial coarse and fine focusing knobsproviding up to 23mm coarse movement and 0.2mm per rotation on fine adjustmentfor precise focus control. The X-Y mechanical movement stage allows accurate specimen navigation, ideal for examining specific culture areas without disrupting the setup.

Q: When should I use the different objective magnifications available on this microscope?

A: Select from plan achromatic objectives of 4x, 10x, 20x, or 40x (spring) depending on your required level of detail. Lower magnification is best for broad sample overviews, while higher options reveal cellular or subcellular structures. Switching objectives is easy and can be done mid-session.

Q: Where should the inverted tissue research culture microscope be operated for optimal performance?

A: For best results, use the microscope in a laboratory environment maintained at 5C to 40C with humidity below 80%. This ensures both optical integrity and user safety, aligning with its CE certification requirements.

Q: What are the benefits of using an inverted microscope for tissue and cell culture research?

A: Inverted microscopes permit direct observation of living cells in transparent culture containers, reducing disturbance to specimens and improving imaging of adherent layers. Their ergonomic design, anti-fungal optics, and bright field illumination provide reliable, clear results for advanced cell biology studies.

Q: How do I capture and save images or videos from the microscopes camera system?

A: Connect the HDMI or USB interface to your imaging device or computer. Capture still images in JPEG format (up to 5MP resolution) or record full HD 1080p videos in MP4 at up to 30 frames per second. Simple controls ensure efficient documentation of experimental observations.
