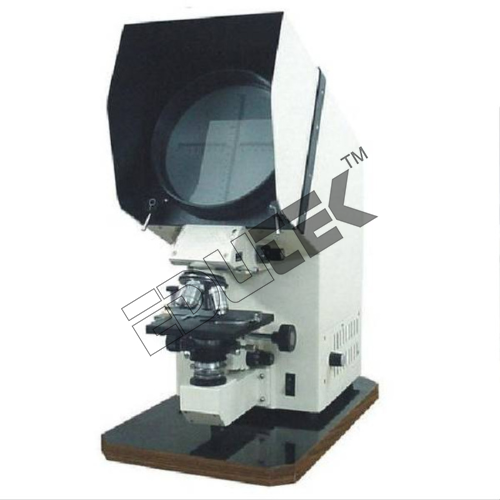

Send InquiryAdvance Projection Microscope
Price 2000.0 INR/ Piece
MOQ : 1 Piece
Advance Projection Microscope Specification
- Features
- Bright and sharp screen image, rugged body, precision focusing, suitable for group viewing and demonstration
- Spare Parts
- Lamp, fuse, projection bulb, stage clips, objectives, eyepiece
- View Head
- Inclined monocular projection head
- Focus System
- Coarse and fine coaxial knobs
- Theory
- The Advance Projection Microscope is designed for enlarged viewing of microscopic specimens, allowing projection onto a screen for group observations, demonstrations, and teaching purposes.
- Drawtube
- Monocular projection tube
- Sensor
- Not applicable (Optical projection system)
- Resolution
- Depends on projection optics; typically up to 0.2 micron with standard achromatic objectives
- Interface
- Manual controls; no digital output
- Frame Rate
- Not applicable (optical projection only)
- Focal Distance
- Adjustable, typically 45mm
- Magnification
- 100x, 200x, 400x, 600x, 1000x (depending on objective and eyepiece combination)
- Dimensions
- Approx. 430mm x 230mm x 210mm (H x W x D)
- Focus Range
- Coarse and fine focus, range up to 20mm total
- Eyepieces
- Projection eyepiece 10x wide field
- Eyepiece Tube
- Inclined monocular projection head (60 inclination)
- Illumination
- Built-in incandescent lamp with condenser for bright field illumination
- Coarse Adjustment Range
- Approximately 30mm
- Fine Adjustment Range
- Approximately 2mm
- Working Stage
- Large mechanical stage with slide clips, stage size approx. 120mm x 120mm
- Still Image Capture Resolution
- Not applicable (no camera hardware)
- Video Capture Resolution
- Not applicable (no camera hardware)
- Image Format
- Projected optical image; suitable for screen sizes up to 150mm diameter
- Interpupillary Distance
- Not applicable (monocular head)
- Objective Achromatic
- Achromatic objectives 10x, 40x, 100x (oil immersion)
- Condenser
- Abbe condenser with iris diaphragm and filter holder
- Light Source
- 6V/20W halogen lamp, adjustable intensity
Advance Projection Microscope Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Sample Available
- Yes
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Packaging Details
- carton box, export quality also available
- Main Export Market(s)
- Asia, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001 ,CE
About Advance Projection Microscope
Advance Projection Microscope ETMS-148Projection Microscope is very useful for routine observation and complex type measurements of specimen magnified on screen, group observations, discussions and teaching.
Specifications:-
- Equipped with a 195 mm diameter
- Special material graduated screen
- Built-in base illuminator & diaphragm which is directed to the condenser which again is reflected through a mirror to the objective and compensating eyepiece for projection on to the screen again by a reflector
- Graduated Mechanical stage is also provided on the large stage for backward and forward movements within 30mm& 40mm scales read by verniers to 0.1mm
- Screen-head is rotatable through 360o with cross scales vertically and horizontally within 140mm
A quadruple nose-piece carries has four objectives : 5X, 10X, 20X & 40X giving magnification from 125X to 1000X.
Crystal-Clear Group Demonstrations
Designed specifically for educational and laboratory environments, this microscope transforms microscopic observation into a visual group experience. Its bright, sharp projected image enables students and professionals to simultaneously view specimens, making demonstrations, teaching, and collaborative analysis significantly more engaging and effective.
Rugged Design for Reliable Usage
With its sturdy metallic die-cast body and baked enamel finish, the Advance Projection Microscope is built to withstand the demanding conditions of daily laboratory use. The integrated carrying handle enhances portability, while precision components like the rack and pinion stage movement ensure smooth specimen navigation and extended equipment longevity.
Adjustable Illumination and Optics
Equipped with a 6V/20W halogen lamp and multiple filters, users can fine-tune lighting for optimal clarity and contrast under various ambient conditions. Its coarse and fine focusing system accommodates different slide thicknesses and objectives, delivering high-resolution projection for anything from standard slides to challenging samples requiring oil immersion.
FAQs of Advance Projection Microscope:
Q: How does the Advance Projection Microscope facilitate group viewing during laboratory demonstrations?
A: The built-in 150mm ground glass projection screen enables enlarged viewing of microscopic specimens, allowing multiple viewers to observe details simultaneously. This design is ideal for teaching, demonstrations, and collaborative learning situations.Q: What types of specimens or applications is this microscope suitable for?
A: It is designed for use in biology laboratories, educational institutions, and pathology labs. You can observe stained tissue slides, cell preparations, and microorganisms, making it versatile for teaching, demonstration, and routine group analysis.Q: When is it necessary to use the blue and neutral filters provided with the microscope?
A: The included blue and neutral filters are used to enhance image contrast and reduce glare during bright field illumination. Use them when viewing color-sensitive specimens or when optimal contrast is essential for observation or teaching purposes.Q: Where can the projection distance be adjusted, and why is this useful?
A: Projection distance is adjusted to focus onto the built-in screen depending on specific ambient lighting conditions. This allows you to achieve a crisp, clear image regardless of room brightness or specimen type, making the microscope adaptable to varied environments.Q: What is the process for focusing and adjusting the stage for observation?
A: Begin by selecting the desired objective, position the specimen slide on the stage, and use the coarse and fine coaxial knobs to bring the image into focus. The rack and pinion X-Y stage allows smooth and precise movement of the slide for detailed examination.Q: How does the robust construction benefit users in high-usage environments?
A: Engineered from metallic die-cast materials with a baked enamel finish, the microscope resists wear and damage, ensuring reliable and durable performance in busy laboratories. The integrated handle also makes it safe and convenient to transport between classrooms or lab stations.
