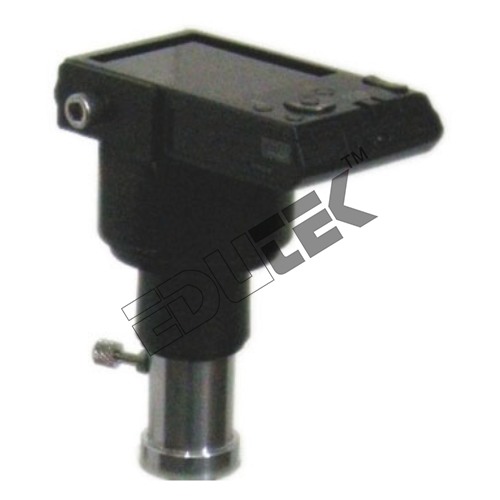

PHOTOMICROGRAPHY .

Get a Price/Quote

MOQ : 1 Piece

PHOTOMICROGRAPHY . Specification

View Head
Binocular head with 360 rotatable feature.

Features
High-resolution imaging, ergonomic design, easy USB/HDMI connectivity, software-enabled image capture and measurement.

Focus System
Coaxial coarse and fine focusing mechanism.

Spare Parts
Supplied: spare lamp, fuse, dust cover, immersion oil.

Theory
Photomicrography involves capturing images through a microscope to reveal minute details of specimens.

Drawtube
Removable drawtube compatible with digital camera adapters.

Sensor
High-resolution CMOS sensor.

Resolution
Up to 12 Megapixels (4000 x 3000).

Interface
USB 2.0 and HDMI output for direct connectivity.

Frame Rate
30 fps (live view mode).

Focal Distance
Adjustable, typically 50-80 mm depending on objective used.

Magnification
40x to 1000x with objective and eyepiece combinations.

Dimensions
Standard instrument: approx. 380 x 250 x 180 mm.

Focus Range
Coarse: 25 mm, Fine: 0.002 mm graduations.

Eyepieces
WF10x/18mm standard, compatible with widefield eyepieces.

Eyepiece Tube
Dual binocular inclined at 45.

Illumination
LED transmitted light, adjustable intensity.

Coarse Adjustment Range
25 mm total travel.

Fine Adjustment Range
0.002 mm per division.

Working Stage
Mechanical stage, 125 x 140 mm, X-Y movement 70 x 28 mm.

Still Image Capture Resolution
4000 x 3000 pixels.

Video Capture Resolution
1920 x 1080 pixels (Full HD).

Image Format
JPEG/BMP/TIFF, selectable in software.

Interpupillary Distance
Adjustable 55-75 mm.

Objective Achromatic
Achromatic objectives 4x, 10x, 40x(S), 100x(Oil).

Condenser
Abbe condenser NA 1.25 with iris diaphragm.

Light Source
3W LED with variable intensity control.

Power Supply
AC 220V/50Hz

Safety Compliance
CE certified

Stage Clips
Built-in

Diopter Adjustment
+/- 5 diopters

Body Material
Metal alloy

Display Mode
Live screen view via PC

Stage Movement
X/Y axis movement, 75mm x 50mm

Usage
For laboratory and academic photomicrography

Camera Software Compatibility
Compatible with Windows and MacOS

Data Output
Real-time image transmission

Color Temperature
Adjustable (6000K - 6500K)

PHOTOMICROGRAPHY . Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About PHOTOMICROGRAPHY .

Discover the illustrious world of PHOTOMICROGRAPHY with our advanced systemnow available with a notable price cut and instant checkout Offer! Engineered with a robust metal alloy body and CE-certified safety, this device brings ineffable image clarity for laboratory and academic use. Experience dual binocular viewing, 360 adjustable head, impeccably precise X/Y stage movement (75mm x 50mm), and high-resolution real-time image transmission. Compatible with Windows and MacOS, it offers USB 2.0/HDMI output for seamless connectivity. LED illumination, ergonomic design, and wide magnification (40x to 1000x) make it one of the best solutions for detailed, high-resolution photomicrography imaging.

Why PHOTOMICROGRAPHY Rises Above the Rest

Crafted from a premium metal alloy for durability, this microscopes ergonomic design ensures comfortable, extended use in laboratories, academia, and research institutions. Key competitive advantages include high-resolution imaging with up to 12 Megapixels, real-time data output, adjustable illumination, and extensive compatibility with both Windows and MacOS systems. The robust mechanical stage and superior achromatic objectives empower users to capture precise, detailed micro-images, surpassing standard models supplied in the market.

Sample Accessibility, Delivery, and Global Market Reach

We provide premium sample units for evaluation, shipped goods via major Indian FOB Ports at a nominal charge. For international clients, samples are readily available for prompt dispatch. Our export markets include Europe, North America, Asia, and Africa, making our photomicrography system a favored choice globally. Each shipment guarantees comprehensive after-sales support and documentation, ensuring customers experience efficiency and quality post-purchase.

FAQs of PHOTOMICROGRAPHY:

Q: How do I connect the PHOTOMICROGRAPHY system to my computer?

A: Simply use the USB 2.0 or HDMI interface to connect the system to a Windows or MacOS PC. Install the compatible camera software, and access live-view imaging and real-time data transmission.

Q: What applications is this photomicrography system best suited for?

A: This system is ideal for laboratory research, academic teaching, medical diagnostics, and industrial quality control, enabling detailed study and documentation of microscopic specimens.

Q: Where can I obtain spare parts for the system?

A: Spare parts such as lamps, fuses, dust covers, and immersion oil are supplied with every unit. Additional parts can be requested from the manufacturer or supplier in India.

Q: What competitive advantages does your system provide compared to standard models?

A: Our photomicrography system boasts ergonomic design, high-resolution imaging up to 12 Megapixels, superior build quality, and versatile compatibility, ensuring precision and ease-of-use for demanding applications.

Q: How does the image capture process work?

A: Capture high-resolution still images (4000 x 3000 pixels) or Full HD video (1920 x 1080 pixels) in selectable formats (JPEG/BMP/TIFF) with effortless software-enabled measurement and image management.

Q: When is the best time to request a sample unit?

A: Samples can be requested at any time. They are typically shipped within a short lead time via Indian FOB ports, enabling clients to evaluate system performance prior to bulk orders.
