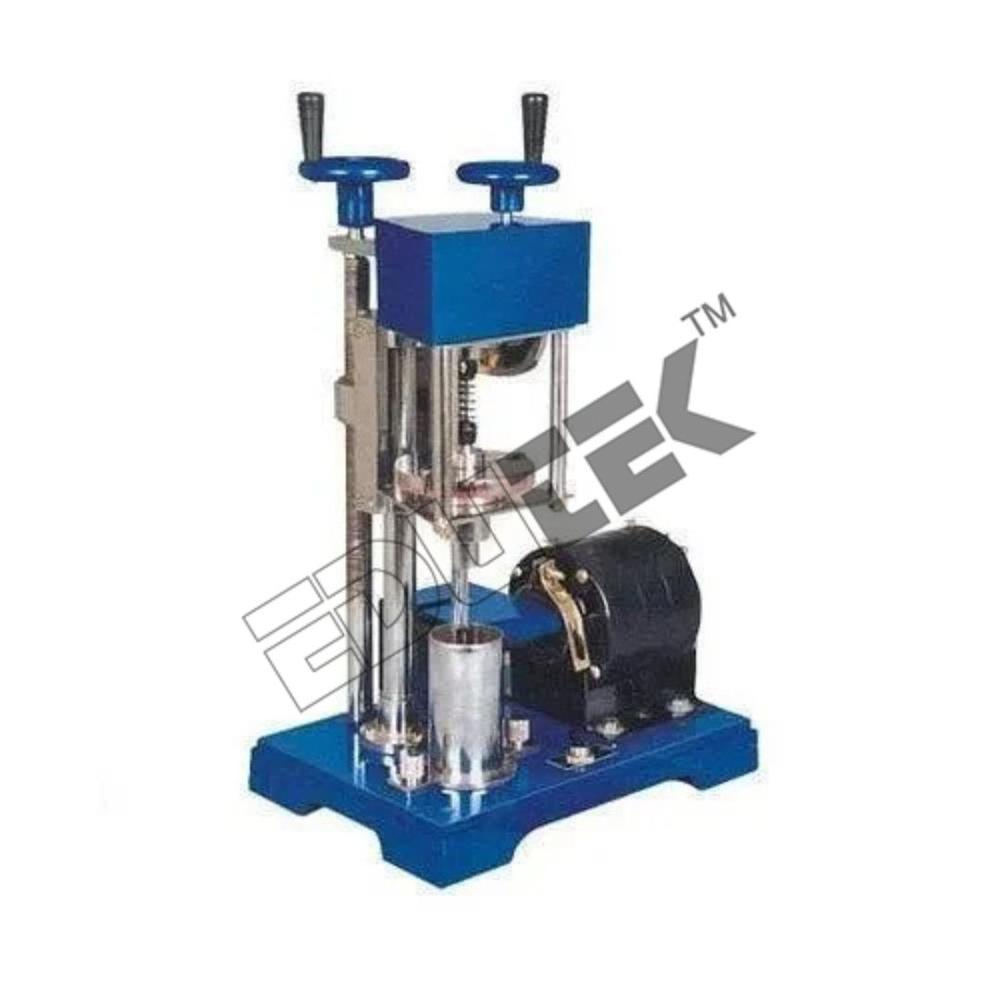

Laboratory Vane Shear

Price 5000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Laboratory Vane Shear Specification

Frequency
50 Hz Hertz (HZ)

Model No

Color
Select (Typically Blue/Grey Frame)

Automation Grade
Manual

Feature
Highly Efficient

Usage
Critical for foundation design, stability analysis of slopes, and determination of sensitivity of clays

Classification
Geotechnical Engineering / Soil Mechanics Testing

Accuracy
100 % %

Core Components
Motor, Vane, Stainless Steel Container

Voltage
220 V Volt (v)

Application
Civil Engineering, Geotechnical Labs, Research Facilities

Product Type
Soil Strength Tester / Cohesion Tester

Measurement Range
0-2 kg/cm

Operate Method
Controlled Rotation: The vane is inserted into the sample, and the motorized head slowly rotates it; the peak torque before failure is measured, and the shear strength is calculated

Power Source
Electric

Temperature Range
Ambient Celsius (oC)

Material
Steel, Aluminum, Stainless Steel

Capacity
2 kg/cm Kg/day

Equipment Materials
Mild Steel (Body), Stainless Steel (Vanes)

Type
Vane Shear Apparatus

Display Type
Analog/Dial Gauge

Dimension (L*W*H)
320 x 250 x 400 mm Millimeter (mm)

Weight
Approx. 12 kg Kilograms (kg)

Motor Type
Synchronous Motor

Container Diameter
60 mm

Container Height
90 mm

Rotation Speed
1 rpm (approx.)

Application
Determination of Undrained Shear Strength of Soil

Shear Vanes Variable Size
Available (12.5, 25, 37.5, 50 mm)

About Laboratory Vane Shear

Laboratory Vane Shear Motorized

Consists of a torque head adjustable in height by means of a lead screw rotated by a drive wheel to enable the vane to be lowered into the specimen. Rotation of the vane is by means of a hand wheel which operates a worm gear arrangement turning the upper end of a calibration torsion spring, vane dia, rod dia, vane size & vane height are as per IS specifications. The vane shaft is attached through the hollow upper shaft to a resettable pointer, which indicates the angle indicates the angle of torque on a dial graduated in degree the dial reading multiplied by spring factor gives the torque a container for soil sample is also supplied & a sampling tube of 38mm. i.d. & 150mm long can also be used as container . Supplied with set of four springs, one each of approx. 2 kgs/cm sq., 4kgs/cm sq., 6 kgs/cm sq. & 8kgs/cm sq. complete as above in a wooden carrying case. Electrically operated rate of rotating is 1/60 R.P.M. Suitable for operation on 230 V A.C. Single Phase.

Versatile Design for Targeted Soil Testing

The Laboratory Vane Shear Apparatus is tailored for flexible usage, offering multiple vane size options to suit diverse soil conditions. Its 60 mm diameter and 90 mm height container provide ample space for various sample sizes, ensuring accurate and repeatable results. This versatility makes it suitable for both standard and specialized laboratory applications.

Precision and Efficiency Combined
With a rotation speed of 1 rpm, powered by a synchronous motor, the apparatus delivers highly consistent shear testing. Its analog/dial gauge offers straightforward readings, while the robust construction ensures durability and ease of maintenance. This blend of precision and efficiency streamlines the assessment process in any laboratory environment.

Engineered for Professional Laboratory Use
Engineered using quality mild steel and stainless steel, this vane shear apparatus is crafted for longevity and reliability. Weighing approximately 12 kg and measuring 320 x 250 x 400 mm, it is compact yet sturdy. The equipments automation grade is manual, ensuring user control and adaptability in a range of soil strength determination scenarios.

FAQs of Laboratory Vane Shear :

Q: How does the Laboratory Vane Shear Apparatus determine the undrained shear strength of soil?

A: The apparatus employs a set of stainless steel vanes inserted into a soil sample within a stainless steel container. The synchronous motor rotates the vanes at a constant speed of 1 rpm. The resistance encountered by the vanes as they rotate is measured using the analog/dial gauge, providing the undrained shear strength of the soil.

Q: What types of soil samples can be tested with this vane shear apparatus?

A: This instrument is suitable for cohesive soils, such as clay, where undrained shear strength testing is essential. Variable vane sizes (12.5, 25, 37.5, and 50 mm) allow for testing small to moderately large samples, accommodating a variety of laboratory requirements.

Q: When should I use this apparatus in my soil analysis process?

A: Use the Laboratory Vane Shear Apparatus during site investigation, quality control in construction, academic research, or any instance where evaluating the undrained shear strength of soil is necessary. It is especially relevant before the construction of foundations or earthworks to ensure soil stability.

Q: Where can the Laboratory Vane Shear Apparatus be operated?

A: This equipment is designed for laboratory use only. It should be set up on a stable workstation within environments where ambient temperature conditions prevail, ensuring reliable performance and accurate readings.

Q: What is the typical process for using this apparatus?

A: To use, place the soil sample in the container, select the appropriate vane size, and insert the vanes into the sample. Initiate the motor to rotate the vanes at 1 rpm. Read the measured resistance from the analog/dial gauge, which reflects the undrained shear strength. Clean and maintain the apparatus after use for optimal longevity.

Q: How does the apparatus benefit users in research and industry?

A: By providing 100% accuracy, efficient operation, and robust construction, the Laboratory Vane Shear Apparatus supports reliable data collection for geotechnical analysis. This efficiency and dependability enhance decision-making in building design, soil research, and educational settings.
