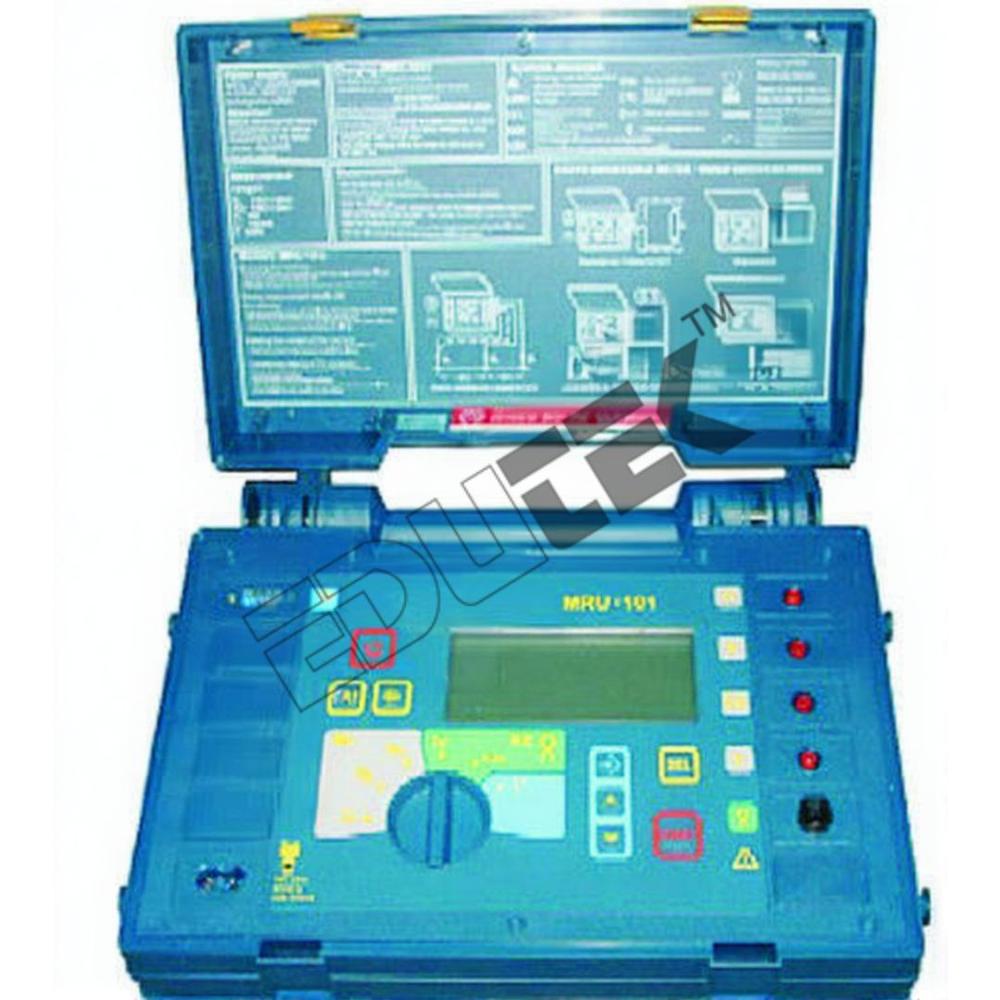

Send InquiryEarth Resistivity Meter
MOQ : 1 Unit
Earth Resistivity Meter Specification
- Feature
- High accuracy User-friendly interface
- Classification
- Geotechnical Engineering / Corrosion Engineering / Electrical Engineering
- Operate Method
- Four-Point Measurement: Four electrodes are driven into the ground; the meter injects current through the outer pair and measures the resulting voltage drop across the inner pair to calculate resistivity
- Application
- Civil Engineering, Electrical Utilities, Environmental Consulting
- Temperature Range
- 0-15 Celsius (oC)
- Automation Grade
- Automatic
- Usage
- Corrosion protection design, geological surveys for construction, and locating underground features
- Power Source
- Battery-operated
- Accuracy
- 0.1 %
- Voltage
- 12V Volt (v)
- Color
- Select (Typically Blue/Black Casing)
- Material
- ABS Plastic, Electronic Components
- Capacity
- Up to 1000 Ltr
- Frequency
- 50/60 Hertz (HZ)
- Product Type
- Electrical/Geophysical Field Tester
- Core Components
- Microprocessor LCD Display Control Buttons
- Warranty
- 1 year manufacturer
- Equipment Materials
- Plastic Electronic Components
- Type
- Portable Resistivity Meter
- Display Type
- Digital LCD
- Dimension (L*W*H)
- 300x200x100 Millimeter (mm)
- Weight
- 2.5 Kilograms (kg)
About Earth Resistivity Meter
Earth Resistivity Meter
Capable of measuring earth voltage (V A.C.) 2mA measuring current permits the testing of earth resistance without tripping earth leakage current circuit breakers in the circuit.
Auto power off function. The timer operates auto power off function. The time operates the "PUSH BUTTON SWITCH" and "TIMER ON BUTTON' are pressed together.
This will keep the test "NO" for about three to five minutes.
Then auto power off.
- Battery operated
- Data hold function
- Small and light weight
- Calibration performed with supplied test leads
Specification
- Measurement Ranges
- Earth Resistance: 0-20W/0-200W/0-2000W
- Earth Voltage: 0-200V AC (40-500Hz)
FAQs of Earth Resistivity Meter:
Q: What is the measurement range of the Earth Resistivity Meter (Model No: ERM-105)?
A: The Earth Resistivity Meter (Model No: ERM-105) has a measurement range from 0.01 to 100 k.Q: What is the power source of the Earth Resistivity Meter (Model No: ERM-105)?
A: The Earth Resistivity Meter (Model No: ERM-105) is battery-operated and runs on a 12V DC power source.Q: What is the capacity of the Earth Resistivity Meter (Model No: ERM-105)?
A: The Earth Resistivity Meter (Model No: ERM-105) has a capacity of up to 1000 measurements.Q: What type of display does the Earth Resistivity Meter (Model No: ERM-105) have?
A: The Earth Resistivity Meter (Model No: ERM-105) features a digital LCD display.Q: What is the warranty period for the Earth Resistivity Meter (Model No: ERM-105)?
A: The Earth Resistivity Meter (Model No: ERM-105) comes with a 1-year manufacturer warranty.
