Send InquiryLinear Shrinkage Mould
MOQ : 1 Unit
Linear Shrinkage Mould Specification
- Color
- Select (Typically Galvanized/Gold/Brass)
- Automation Grade
- Manual
- Accuracy
- 0.1 mm %
- Feature
- High dimensional accuracy, corrosion resistance
- Material
- Metal (Brass or Steel)
- Temperature Range
- Ambient to 110 C (as per test requirements) Celsius (oC)
- Product Type
- Soil Index Property Tester / Soil Classification Tool
- Usage
- Characterizing soil plasticity, complementing the Liquid Limit and Plastic Limit tests for soil classification
- Capacity
- 3 specimens at a time Pcs/hr
- Classification
- Geotechnical Engineering / Soil Index Testing
- Application
- Civil Engineering Labs, Agricultural Engineering
- Measurement Range
- 0 to 120 mm (length of specimen)
- Operate Method
- Moulding and Drying: Soil paste (at liquid limit) is molded into the trough and oven-dried; the length of the resulting dry soil bar is measured
- Core Components
- Base Plate, Mould Body, End Plates, Clamping Screws
- Equipment Materials
- Mild Steel / Gunmetal / Brass
- Type
- Linear Shrinkage Mould
- Display Type
- Manual/Analog
- Dimension (L*W*H)
- 140 mm x 40 mm x 40 mm (standard) Millimeter (mm)
- Weight
- Approx 1.5 to 2 kg Kilograms (kg)
- Surface Finish
- Smooth polished surface for easy specimen removal
- Application
- Civil Engineering, Soil Testing, Geotechnical Laboratory
- Clamping Mechanism
- Screwed clamping system
- Mould Cavity
- Three grooves for three test samples
- Specimen Size
- Length 140 mm x Width 25 mm x Height 25 mm
Linear Shrinkage Mould Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cheque, Days after Acceptance (DA), Delivery Point (DP), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash in Advance (CID)
- Delivery Time
- 2 Week
- Sample Available
- No
- Sample Policy
- If order is confirmed we will reimburse the sample cost
- Main Export Market(s)
- Asia, Western Europe, Middle East, Africa, Eastern Europe, Australia, Central America, North America, South America
- Main Domestic Market
- All India, East India, South India, Central India, North India
- Certifications
- AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.
About Linear Shrinkage Mould

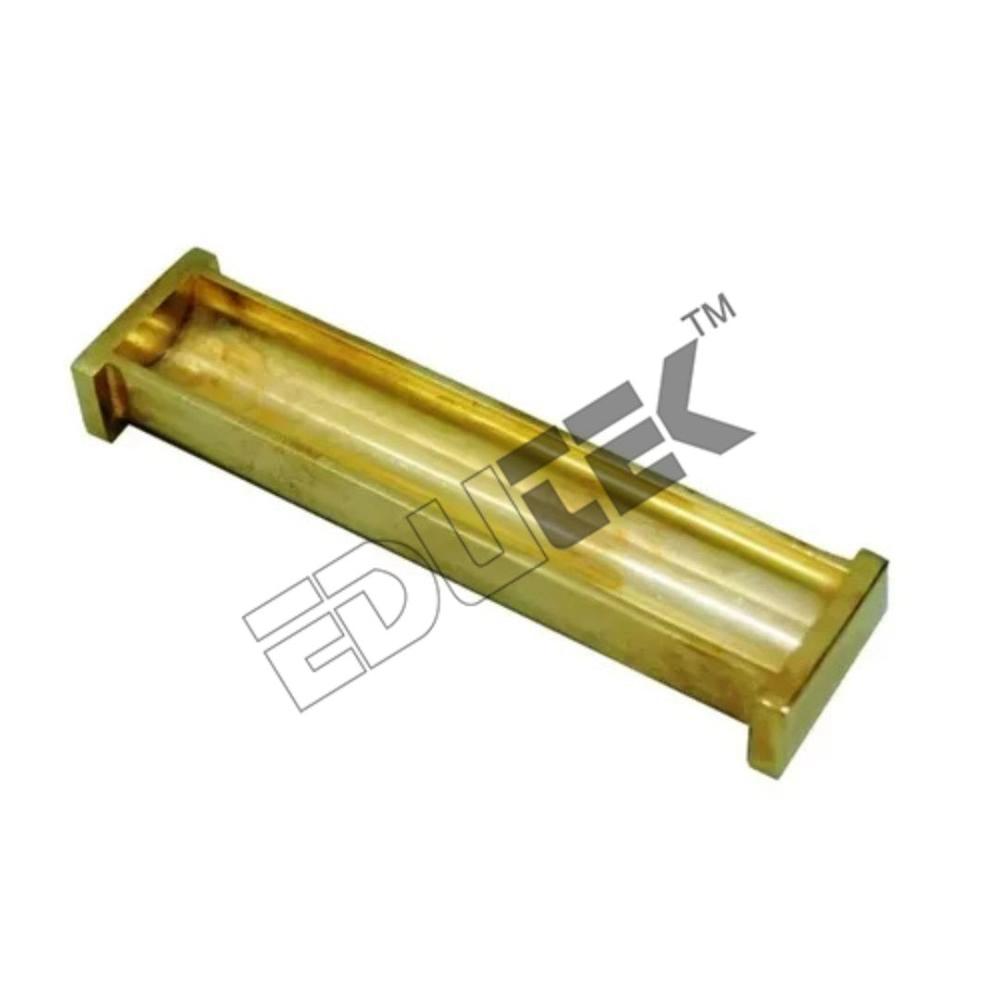

Linear Shrinkage Mould
A simple mould which is filled with the soil under test. This is then dried and the resulting decrease os length of the specimen measured is expressed as the linear shrinkage. It is 25mm Dia. x 12.5mm Height x 140mm Length.
Robust Construction and Reliable Performance
Crafted from premium mild steel, gunmetal, or brass, the Linear Shrinkage Mould offers exceptional durability and corrosion resistance. Its smooth, polished surface ensures effortless specimen removal, while the screwed clamping mechanism secures consistent specimen preparation for accurate and repeatable results.
Versatile Laboratory Applications
Designed for use in civil engineering, soil testing, and geotechnical laboratories, this mould accommodates up to three specimens simultaneously. Its standardized dimensions and measurement accuracy make it an essential tool for evaluating soil behavior and quality, supporting a wide variety of engineering and research projects.
FAQs of Linear Shrinkage Mould:
Q: How does the Linear Shrinkage Mould assist in soil testing applications?
A: The Linear Shrinkage Mould enables the precise measurement of shrinkage in soil specimens, which is a critical parameter in civil engineering and geotechnical studies. By accurately documenting length changes as the soil dries, it aids professionals in assessing soil quality and suitability for construction projects.Q: What is the process of using the mould to prepare test specimens?
A: To use the mould, fill each of the three polished grooves with soil and secure the end plates using the screwed clamping system. After the specimen is set, remove it easily thanks to the smooth polished surface. The mould accommodates simultaneous preparation of three samples for efficient laboratory workflow.Q: When should the Linear Shrinkage Mould be used during geotechnical investigations?
A: The Linear Shrinkage Mould is typically employed when assessing the shrinkage characteristics of soils, often during the classification phase of site investigations or material quality control to predict potential soil movement post-construction.Q: Where can this mould be utilized effectively?
A: This Linear Shrinkage Mould is ideal for use in civil engineering research facilities, geotechnical laboratories, soil testing centers, and academic institutions involved in material analysis and quality control.Q: What are the main benefits of using this Linear Shrinkage Mould?
A: Key advantages include high dimensional accuracy (0.1 mm), the capacity to prepare three specimens at once, robust material construction for reliability, and a polished surface for easy specimen removal, facilitating repeated and consistent tests.Q: How accurate are the measurements provided by this equipment?
A: The Linear Shrinkage Mould provides measurement accuracy up to 0.1 mm, ensuring results you can depend on for critical engineering analyses and compliance with relevant testing standards.
