Electrical Installation In Refrigeration Systems

Send Inquiry

Request To Call Back

Electrical Installation In Refrigeration Systems

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Electrical Installation In Refrigeration Systems Specification

Automation Grade
Semi-Automatic / Fully Automatic

Power Source
AC Electric

Feature
Highly Efficient

Core Components
Contactor, Overload Relay, Timer, MCCB, Cable

Measurement Range
Precise monitoring as per sensor selection

Frequency
50 Hz / 60 Hz Hertz (HZ)

Temperature Range
-45 C to +60 C Celsius (oC)

Accuracy
100 % %

Capacity
Customizable as per system requirement Ltr

Model No

Voltage
220V / 415V Volt (v)

Equipment Materials
High-quality copper, PVC, Stainless Steel, and Insulation materials

Type
Electrical Installation for Refrigeration

Usage
Laboratory

Display Type
Analog & Digital options available

Dimension (L*W*H)
Custom-built per project; typically 450mm x 650mm x 2100mm Millimeter (mm)

Weight
Varies based on installation: 20 kg to 250 kg Kilograms (kg)

About Electrical Installation In Refrigeration Systems

ELECTRICAL INSTALLATION IN REFRIGERATION SYSTEMS

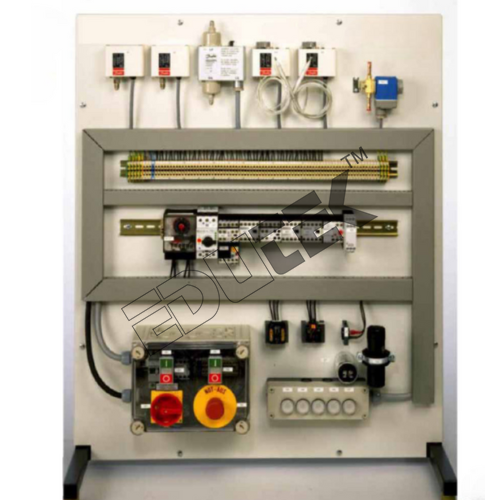

The wiring of electrical components is a typical task in the field of refrigeration. Besides the design and operation of the individual components, knowledge about the interaction of the components in circuits is an important learning objective. Safety aspects also play an important role. With this knowledge and these skills can be acquired. The electrical components are arranged clearly visible. All components are connected on terminal blocks. Using the cables included in the scope of delivery it is possible to set up different circuits correctly and operationally. Lamps simulate the consumers. All components are operated and tested with mains voltage to provide high relevance for practice.

There are electrical components for the start and operation of refrigerant compressors, such as e.g. electromagnetic start-up relay and capacitor. With a timer, circuits can be designed and examined for cyclical defrosting in refrigeration systems. This also includes the correct programming of the timer. Typical safety components, such as pressure switches, thermostats and circuit breakers are also included in the scope of delivery. These components enable the design and examination of a

typical safety chain for refrigeration.

The well-structured instructional material sets out the fundamentals and provides a step-by-step guide through the experiments.

The unit shall perform the following experiments and investigations:

Learning Objectives / Experiments

Read, understand, wire and test electric circuit diagrams
Design and operation of electrical components from refrigeration
Start-up capacitor
Operating capacitor
Start-up relay
Time relay
Timer
Circuit breaker
Start-up current limiter
Contactors
Pressure switch
Thermostat
Solenoid valve
Design and testing of a safety chain
Star / delta connection
Change of direction of rotation in an alternating
Current circuit
Safety aspects when handling mains voltage

Specification

Experimental unit from the practical series for the training of mechatronics engineers for refrigeration
Design and investigation of circuits with electrical components from refrigeration
Electrical components mounted clearly visible and connected on terminal blocks
1 set of cables with wire end ferrules for wiring electrical components on terminal blocks
3 pressure switches, 2 thermostats, 1 solenoid valve, 1 timer, 4 circuit breakers, 5 contactors, 3 relays, 2 capacitors
5 lamps to simulate consumers

Technical Data

3 pressure switches
High pressure: 8...32bar
Low pressure: -0,9...7bar
Differential pressure: 0,3...4,5bar
2 thermostats: -5...20C
1 timer
2 switchable outputs
Switching time: 1...60min
4 circuit breakers
Bimetallic circuit breaker
Thermistor circuit breaker
Circuit breaker with start-up current limiter
Adjustable protection relay
5 contactors
2x: 3 NO, 1 NC
3x: 4 NO
3 relays
Electromagnetic start-up relay
PTC start-up relay
Time relay
Start-up and operating capacitor: 15F, 80F

Dimensions and Weight

LxWxH: 820x420x1010mm
Weight: approx. 42kg

Versatile and Reliable Installation

Our refrigeration electrical installation services cover various sectors, including industrial, commercial, and laboratory environments. The sheet metal enclosures, coated with a durable powder finish and offered in grey or custom colors, ensure protection thanks to IP54 classification. High-quality copper wiring and robust insulation deliver reliable operation for heavy-duty cooling requirements.

Custom-Built for Every Project

We customize installations based on specific system requirements, offering cable sizes from 1.5mm to 50mm and core components like contactors, overload relays, timers, and MCCBs. Built to handle ambient temperatures ranging from -10C to +50C, units are suitable for chillers, freezers, and cold rooms. Each control panel can be wall or floor-mounted and tailored to project dimensions.

FAQs of Electrical Installation In Refrigeration Systems:

Q: How does your electrical installation service for refrigeration systems operate nationwide?

A: Our experienced team provides electrical installation services across India, ensuring efficient setup and commissioning of refrigeration systems in industrial, commercial, and research facilities. We coordinate closely with clients for on-site installation, following safety protocols and project timelines.

Q: What safety features are included in the refrigeration electrical installation?

A: The system is equipped with earth leakage, overload, and short circuit protection mechanisms. These built-in safety features safeguard equipment and personnel against electrical hazards and potential failures throughout the systems service life.

Q: When should I consider electrical installation for my refrigeration project?

A: Electrical installation is recommended when constructing new facilities, upgrading existing refrigeration systems, or expanding capacity. Early engagement allows for tailored solutions that ensure compatibility, system protection, and compliance with industry standards.

Q: Where can these installations be used and mounted?

A: Our installations are suitable for industrial plants, commercial buildings, laboratories, and research areas. Control panels are designed for both wall and floor mounting, allowing flexibility based on facility layout and operational needs.

Q: What is the process for customizing electrical installations based on project requirements?

A: Upon receiving project specifications, we assess requirements such as capacity, operating current, cable size, and environmental conditions. We then design and fabricate control panels and select compatible components, ensuring precise fit and integration with refrigeration systems.

Q: How does system integration with PLC, SCADA, and relay logic benefit users?

A: Integration with PLC, SCADA, and relay logic allows automated monitoring and control, improving system efficiency, accuracy, and responsiveness. Users can choose analog or digital display options for real-time data visualization and enhanced operational management.

Q: What are the main benefits of choosing your electrical installation service for refrigeration systems?

A: Key advantages include nationwide reach, customizable solutions, robust safety measures, long service life, and seamless automation support. High-quality materials and adaptable design ensure maximum efficiency and reliability for diverse refrigeration applications.
