Impact Of A Jet Specification

Feature
Durable, corrosion-resistant, easy to operate, transparent panel for observation

Automation Grade
Manual

Measurement Range
0-10 N (Force Displacement)

Frequency
50 Hz

Temperature Range
Ambient to 90C

Power Source
Electric or Manual Supply (as required)

Model No
IMJ-01

Voltage
220 V AC

Accuracy
2%

Capacity
10 Liters

Core Components
Nozzle, Impact Plate, Collecting Tank, Measuring Scale

Equipment Materials
Stainless Steel, Mild Steel, Acrylic

Type
Hydraulic Laboratory Apparatus

Usage
Hydraulic laboratory experiment, Measuring force and impact of fluid jets

Display Type
Analog Scale

Dimension (L*W*H)
600 x 400 x 800 mm

Weight
Approx. 18-22 kg

Impact Of A Jet Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T), Cash in Advance (CID), Letter of Credit (L/C), Cash Advance (CA), Cheque

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Eastern Europe, Middle East, Western Europe, Africa, Asia

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Impact Of A Jet

Impact Of A Jet Apparatus

Edutek Instrumentation are offering a wide range of Impact Of A Jet.

Description :

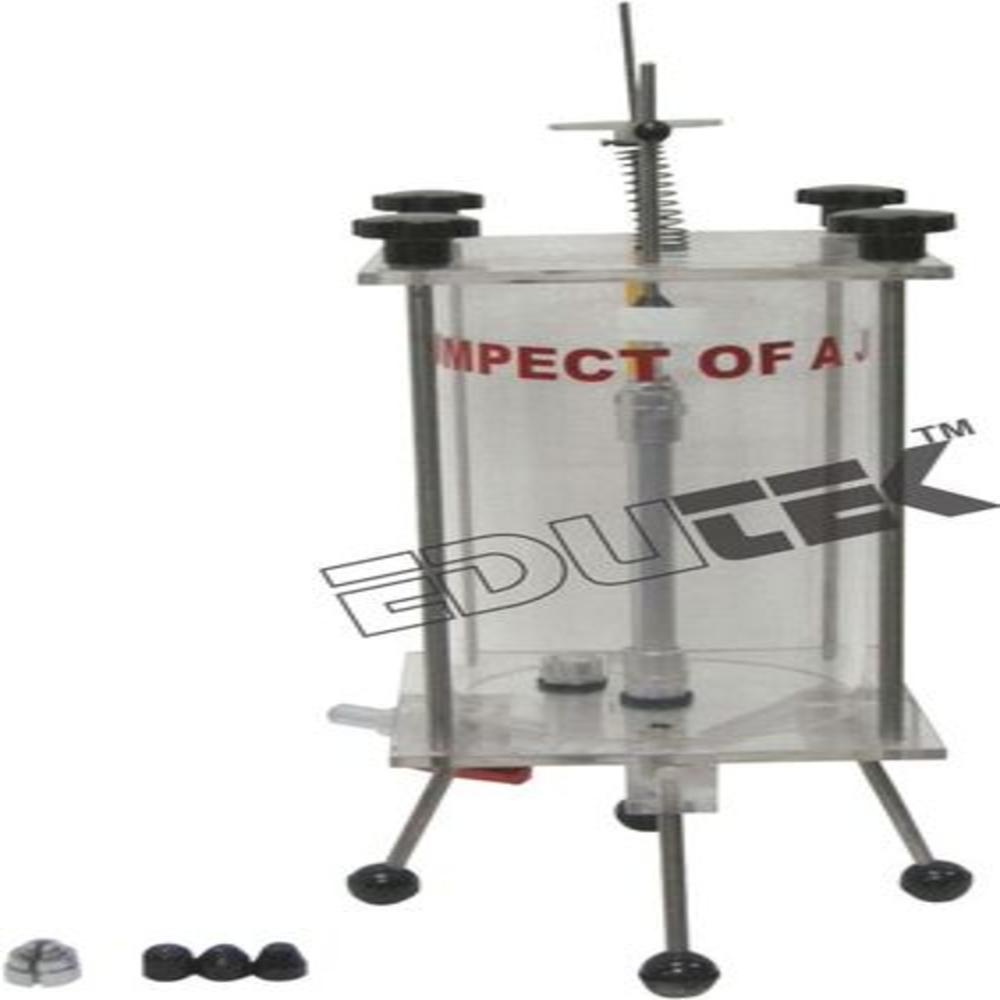

The Impact Of A Jet setup consists of a two sided clear fabrication section. Water is fed through a nozzle and discharged vertically to strike a target carried on a stem which extends through the cover. A weight carrier is mounted on the upper end of the stem. The dead weight of the moving parts is counter balanced by a compression spring. The vertical force exerted on the target plate is measured by adding the weights supplied to the weight pan until the mark on the weight pan corresponds with the level gauge. A total of two targets are provided, a flat plate and a Semi spherical cup.

Experimentation :

To measure the force developed by a jet of water impinging upon a stationary object and comparison with the forces predicted by the momentum theory.

High-Quality Jet Impact Testing

Engineered for precise hydraulic experimentation, the Impact of a Jet apparatus features three nozzle types and various plate configurations. Its transparent panel enables clear observation of fluid dynamics, enhancing learning and analysis. Robust construction ensures longevity and corrosion resistance, making it suitable for repeated laboratory use.

Flexible Operation and Accurate Measurements

Equipped with a manual flow control ball valve, analog scale, and pressure gauge, operators can achieve exact testing parameters. The apparatus handles force displacement measurements from 0-10 N with 2% accuracy, ideal for detailed jet impact studies. Interchangeable nozzles and plates broaden testing versatility.

Easy Installation and Maintenance

Designed for table-top use, the apparatus incorporates durable PVC fittings and leak-proof joints, facilitating simple setup and maintenance. Export-grade packaging protects the instrument during transit, ensuring reliable performance upon delivery.

FAQs of Impact Of A Jet:

Q: How is the Impact of a Jet apparatus installed and set up for use?

A: The apparatus is designed for easy table-top installation, utilizing PVC fittings with leak-proof joints for quick assembly. Simply connect the supply and collection tanks, ensure the ball valve and measuring scale are set, and power up using either manual or electric supply as required.

Q: What process does the equipment follow to measure the impact force of water jets?

A: Water is directed through one of three nozzle types (flat, hemispherical, or conical) onto a selected plateflat, curved, or semi-sphericalpositioned inside the collection tank. The analog scale records the force displacement (010 N) as the jet strikes the plate, while the ball valve allows precise control of water flow.

Q: When should different impact plates and nozzles be used during experiments?

A: Different plates and nozzles are utilized to study how jet shape and plate geometry affect impact force measurements. Selection depends on the experimental objectivesflat plates show direct impacts, curved and semi-spherical plates illustrate dispersing effects. Nozzle variations enable analysis of jet velocity and pattern influence.

Q: Where is the data from jet impact experiments displayed and analyzed?

A: Force measurements from each test are displayed on the analog scale attached to the apparatus. Observers can visually monitor fluid behavior through the transparent acrylic panel and record results for further analysis using standard laboratory methods.

Q: What are the main benefits of using this hydraulic laboratory apparatus?

A: This apparatus offers durable, corrosion-resistant construction, high measurement accuracy (2%), and versatile configurations for exploring fundamental jet impact physics. Its transparent panel and easy operation enhance user experience, while export quality packaging ensures safe delivery worldwide.

Q: How does the flow control system contribute to experiment accuracy?

A: The ball valve allows the operator to regulate water flow, ensuring stable and repeatable jet conditions. This improves the reliability of force and impact measurements, making experimental results consistent and precise.

Q: What usage scenarios and applications does the Impact of a Jet apparatus support?

A: Primarily found in hydraulic laboratories, the device is ideal for educational demonstrations, research experiments, and supplier quality assurance. Its adaptability and robust build suit continuous usage in academic and industrial settings across India and for export.
