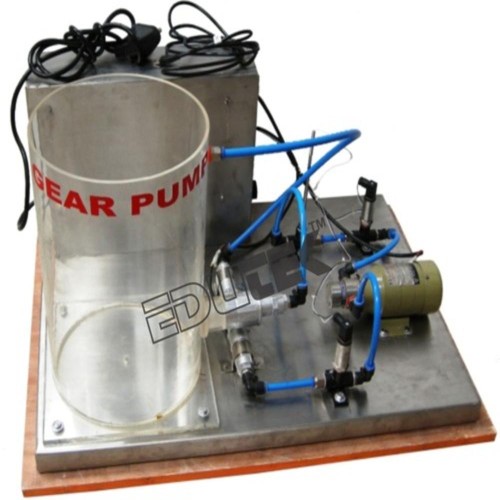

Experiments With A Gear Pump

About Experiments With A Gear Pump

• Gear pumps belong to the group of positive displacement pumps with a continuous flow.
• Two counter-rotating gears transport the medium.
• The transported medium is between the housing and the tooth spaces.
• The pulsation-free flow increases linearly with speed.
• These pumps are particularly suitable for the generation of medium-high pressure at low flow rates.
• The experimental unit provides the basic experiments to get to know the operating behaviour and the most important characteristic variables of gear pumps features a closed circuit with a tank and a gear pump with variable speed via frequency converter.
• The pump gears are mounted in a transparent housing and can be observed during operation.
• Flow rate and head are adjusted via a needle valve and an overflow valve.
• Oil is used as the medium.
• The experimental unit is fitted with sensors for pressure and temperature.
• The oval wheel meter is especially used for the accurate flow measurement of viscous liquids.
• Oval wheel meters operate on the positive displacement principle with two precise oval gear wheels.
• The microprocessor-based measuring technique is well protected in the housing.
• All the advantages of software-supported experiments and evaluation are offered by the software and the microprocessor.
• The connection to a PC is made by USB.
• The well-structured instructional material sets out the fundamentals and provides a step-by-step guide through the experiments.

Reliable Laboratory Performance

This gear pump experiment unit is crafted for high efficiency and 100% accuracy, making it ideal for laboratory use. Its electric motor ensures consistent performance, while the robust temperature range allows for a variety of experiments. With a compact build and sturdy design, it facilitates easy integration into academic or research labs.


Precise Temperature Control

Engineered to operate at up to 100 Celsius, the gear pump unit provides stable conditions for fluid dynamics studies. Its dependable electric motor ensures accurate and repeatable results, supporting advanced learning and research objectives. This makes it a trusted choice for institutions focusing on experimental engineering.
