DUAL RANGE MOVING COIL DC PORTABLE AMMETER

Send Inquiry

Request To Call Back

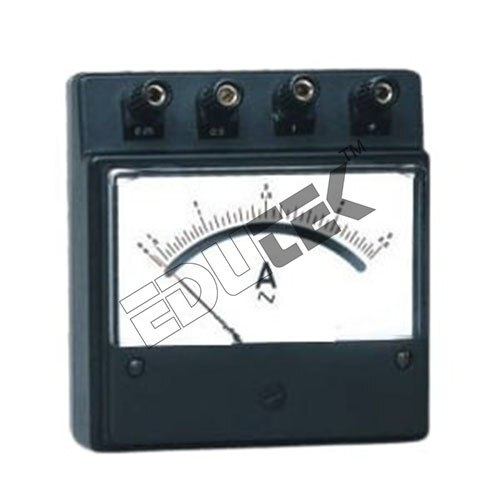

DUAL RANGE MOVING COIL DC PORTABLE AMMETER

Get a Price/Quote

MOQ : 1 Piece

DUAL RANGE MOVING COIL DC PORTABLE AMMETER Specification

Operating Temperature
0C to 50C

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

IP Rating
IP20, indoor use

Power Source
Self-powered (no external supply required)

Input
Direct current (DC)

Power Supply
Self-powered via measured circuit

Display Type
Analog scale with needle pointer

Sensors Specification
Moving coil with precision shunt resistors

Response Time
Less than 1 second

Interface
Direct terminal connections

Features
Portable, durable, dual range, clear analog display

Resolution
0.02A (fine scale division)

Components
Moving coil mechanism, dual range selector, transparent cover, input terminals

Output
Analog needle display

Product Type
DUAL RANGE MOVING COIL DC PORTABLE AMMETER

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
Suitable for low voltage DC measurements

Supply Voltage
Up to 30 V DC (across measured terminals)

Size
Standard portable meter housing

Dimension (L*W*H)
120 mm x 90 mm x 50 mm

Function
Measures direct current in two selectable ranges

Color
White front with black markings and clear casing

Weight
Approximately 400 grams

Current Rating
Dual range (e.g., 0-1A and 0-5A DC)

Thickness
Approximately 50 mm

Capacity
Dual range: e.g. 0-1A, 0-5A DC

Frequency
DC only (0 Hz)

Polarity
Clearly marked input terminals for DC polarity

Pointer Type
Balanced knife-edge pointer for clear readings

Material
Impact resistant plastic body with glass window

Package Contents
Ammeter, instruction manual, test leads

Overload Protection
Internal shunt design for brief overloads

Connection Type
Screw terminals for reliable connection

Accuracy
2% of full scale

Scale Length
85 mm effective scale length

Zero Adjustment
Front panel screw for zero adjustment

Insulation Resistance
Greater than 1 M at 500V DC

Mounting Type
Portable, benchtop use

DUAL RANGE MOVING COIL DC PORTABLE AMMETER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About DUAL RANGE MOVING COIL DC PORTABLE AMMETER

Utilise this distinguished Dual Range Moving Coil DC Portable Ammeter to capitalise on precise current measurements in superior engineering electronics applications. Procure a device equipped with a ravishing 85 mm effective scale, clear analog display, and an impact resistant plastic body with a glass window. This superior ammeter offers 2% full-scale accuracy, balanced knife-edge pointer, and reliable screw terminals. Its dual range selector allows seamless switching between 0-1A and 0-5A, while its robust overload protection and noteworthy insulation resistance establish it as a leading choice for professionals seeking reliability and clarity in measurement.

Advantages & Users: Distinguished Material Selection

Experience the advantage of rapid, precise current measurement with our Dual Range Moving Coil DC Portable Ammeter, ideal for engineering professionals and educational laboratories. Esteemed for its robust impact-resistant plastic body and clear glass window, this ammeter ensures durability and long-term superior performance. Used by engineers, technicians, and students alike, its balanced knife-edge pointer and clearly marked terminals facilitate effortless, accurate readings, making it an indispensable asset for advanced electronics instrumentation.

Sample, Packing, and Order Processing Information

Sample units of the Dual Range Moving Coil DC Portable Ammeter can be requested for preliminary evaluation. Each instrument is meticulously packed and dispatched in secure packaging with all relevant accessories for immediate usability. Order processing is streamlined for efficiency, with payments accepted via standard industry terms. Delivered products are accompanied by an instruction manual, test leads, and comprehensive packaging that assures integrity during transit.

FAQs of DUAL RANGE MOVING COIL DC PORTABLE AMMETER:

Q: How do I connect the Dual Range Moving Coil DC Portable Ammeter for accurate measurements?

A: Connect the input terminals to the DC circuit using the provided screw terminals, ensuring polarity is observed as clearly marked. Use the test leads included in the package for reliable connection.

Q: What is the benefit of having a dual range selector in this ammeter?

A: The dual range selector allows you to switch between two current ranges (e.g., 01A and 05A DC), enhancing versatility and precision in various measurement scenarios.

Q: What process should be followed for adjusting the zero on the device?

A: Zero adjustment is conveniently managed via the front panel screw. Simply turn the screw until the pointer rests at the zero mark on the scale before measurement.

Q: Where is this ammeter most commonly used?

A: This portable ammeter is widely utilised in engineering electronics instrumentation laboratories, educational settings, and technical workshops for direct current measurements.
