Send InquiryLINEAR IC TRAINER
Price 50.0 INR/ Piece
MOQ : 1 Piece
LINEAR IC TRAINER Specification
- Components
- Includes sockets, patch cords, switches, and potentiometers
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Interface
- Banana sockets and IC base interfaces
- Power Source
- AC mains via DC Adapter
- Input
- Multiple input terminals for IC connection
- Features
- Inbuilt DC regulated power supply, Breadboard for prototyping, Fitted with protective plastic body, Simple connections and replaceable IC sockets
- Power Supply
- External AC to DC Adapter
- Response Time
- Instantaneous
- Operating Temperature
- 0C to 50C
- Output
- Multiple output terminals for experiment observation
- Product Type
- LINEAR IC TRAINER
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Rated Voltage
- 12V DC
- Supply Voltage
- 12V DC
- Size
- Medium Size
- Dimension (L*W*H)
- 410 mm x 260 mm x 140 mm
- Function
- Training and experimentation with linear integrated circuits
- Color
- Blue and White
- Weight
- Approx. 2.5 kg
- Current Rating
- Up to 500 mA
- Capacity
- Supports multiple linear ICs like 741, 555, 723, etc.
- Thickness
- Standard Bench-top Unit (approx. 4 cm)
- Frequency
- DC/Low Frequency Applications (up to 100kHz)
- Compatible ICs
- Op-amps (IC-741/IC-318), Timer (IC-555), Voltage Regulator (IC-723), and similar linear ICs
- IC Sockets Included
- 8-pin and 14-pin dual-inline sockets
- External Adapter Input
- 100-240V AC, 50/60Hz
- Instructions Manual
- Comes with detailed manual and experiment examples
- Control Knobs
- Available for variable voltage and resistance
- Finish
- Matt finish, easy to clean
- User Level
- Suitable for students and laboratory demonstrations
- Construction
- Heavy-duty MS powder coated case
- Patch Cords
- Supplied for easy connections
- Assembly
- Ready-to-use, no assembly required
- Protection
- Short circuit and overload protected
LINEAR IC TRAINER Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About LINEAR IC TRAINER
Specification:

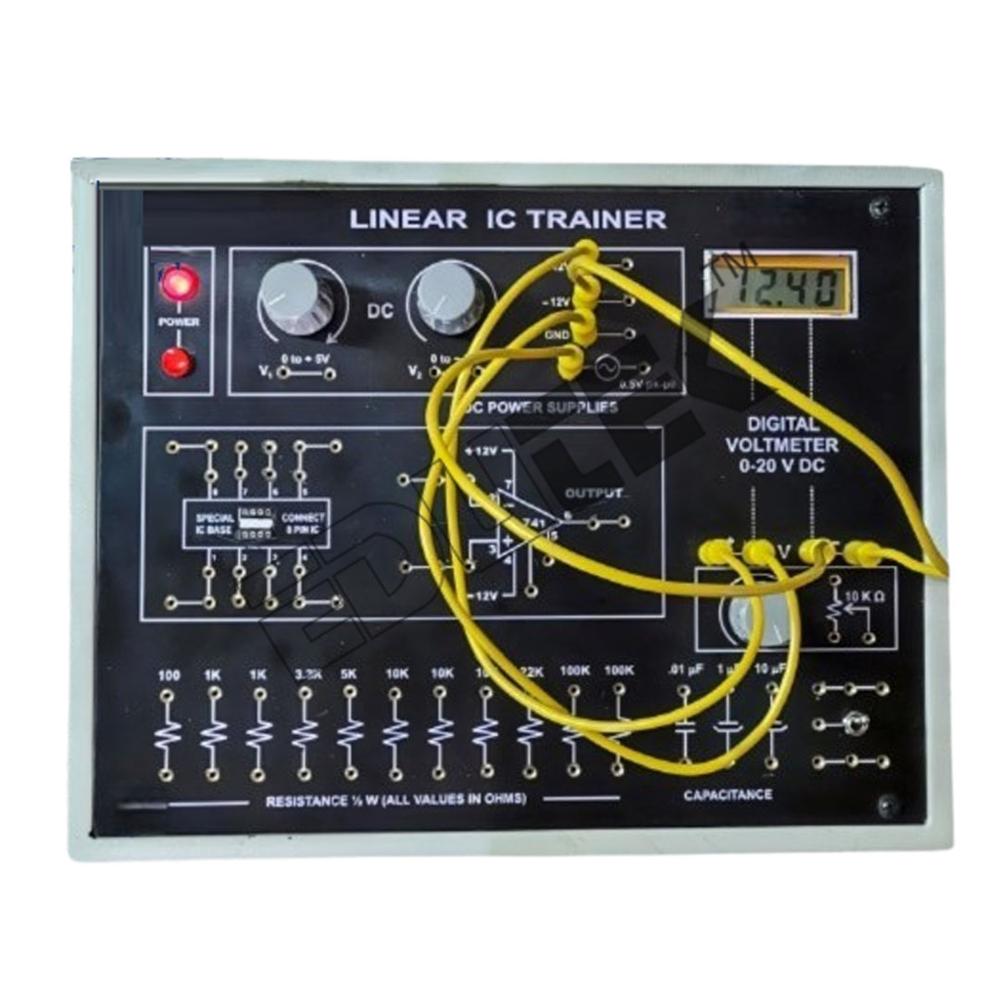

LINEAR IC TRAINER
The regulated power supply of 12 V / 250 mA.
Variable 0 to 5 V / 250 mA.
Sine wave oscillation of 1 KHz
Digital Voltmeter of 0-20 V DC, LCD display, 3 Digit.
The functional diagram of IC 741 is printed with 2 mm sockets.
One extra 8-pin IC Base with 2 mm sockets.
Potentiometer of 10K Ohms.
Required Resistance and Capacitances mounted on board.
Interconnection leads and manual to perform 15 experiments on IC 741
Comprehensive Training Platform
This trainer enables students and engineers to explore the fundamentals of linear integrated circuits through safe and structured experimentation. Its included sockets, patch cords, breadboard, and detailed instruction manual simplify the learning process and encourage hands-on engagement with operational amplifiers, timers, voltage regulators, and more.
Robust Construction and User-Friendly Design
Built with a heavy-duty powder-coated MS case and fitted with a protective plastic body, the trainer withstands frequent use in busy laboratories. Its matt finish makes cleaning effortless, while control knobs for voltage and resistance adjustments allow precise manipulation during experiments. Assembly-free, the unit is immediately ready for use on delivery.
FAQs of LINEAR IC TRAINER:
Q: How do I use the LINEAR IC TRAINER for experimentations in educational settings?
A: Simply connect your chosen linear IC (such as IC-741, IC-555, or IC-723) into the provided sockets, follow the instructions in the manual, and use the control knobs to set desired voltage and resistance. Patch cords and multiple terminals allow easy circuit connections and observations during practical experiments.Q: What safety features are included in the LINEAR IC TRAINER?
A: The trainer incorporates short circuit and overload protection, ensuring both user safety and device longevity during operations. Its sturdy case and protective plastic body further guard against accidental damage.Q: When is the LINEAR IC TRAINER most beneficial for students and professionals?
A: The trainer is ideal during laboratory sessions, classroom demonstrations, and self-guided learning. It is particularly valuable for students in electronics or engineering programs, as it provides hands-on experience with essential analog ICs and circuit concepts.Q: Where can the LINEAR IC TRAINER be safely operated?
A: This device is suitable for use on bench-tops in laboratories, classrooms, training centers, and other regulated educational environments within its specified operating temperature range of 0C to 50C.Q: What types of experiments can be performed with this trainer?
A: Users can perform a variety of analog experiments including op-amp configurations, timer circuits, voltage regulation tests, and prototype development, thanks to the breadboard, patch cords, and control features provided.Q: How does the external adapter and regulated power supply benefit device operation?
A: The included AC-DC adapter ensures a stable 12V DC supply, compatible with worldwide voltages (100-240V AC), delivering reliable operation for linear ICs and consistent experiment results.Q: What advantages does the trainer offer for laboratory demonstrations and student projects?
A: With its comprehensive set of featuresready-to-use assembly, multiple IC compatibility, easy connections, real-time observation terminals, and detailed manualit supports effective demonstration, encourages active learning, and streamlines project execution for aspiring engineers.
