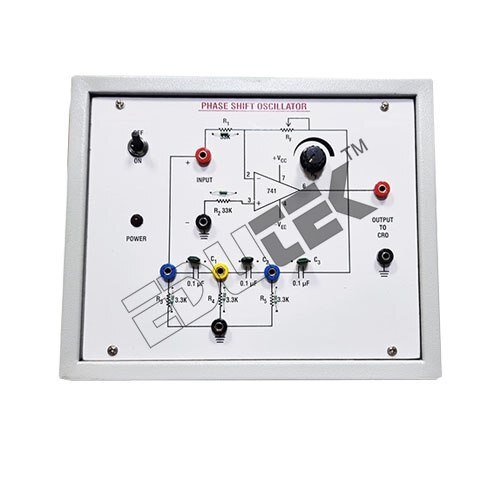

Send InquiryPHASE SHIFT OSCILLATOR
Price 1200.0 INR/ Piece
MOQ : 1 Piece
PHASE SHIFT OSCILLATOR Specification
- Power Source
- External DC adapter
- Power Supply
- External DC supply
- Interface
- Pin connectors for input/output
- Components
- Transistors, resistors, capacitors, connectors, PCB
- Input
- DC power input
- Features
- Stable frequency output, compact size, suitable for lab and R&D use
- Resolution
- Analog output, not digitized
- Thermal Conductivity
- Standard for epoxy FR4 PCB
- Output
- Sinusoidal waveform output
- IP Rating
- Not rated (open PCB)
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Operating Temperature
- 0C to 50C
- Display Type
- No display
- Response Time
- Immediate after power-up
- Product Type
- PHASE SHIFT OSCILLATOR
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Rated Voltage
- 5V DC
- Supply Voltage
- 5V DC nominal
- Size
- Standard small-sized PCB module
- Dimension (L*W*H)
- Approx. 70 mm x 40 mm x 18 mm
- Function
- Generates sinusoidal output signals by creating a phase shift through RC networks.
- Color
- Blue PCB with silver/white components
- Weight
- Approx. 50 g
- Capacity
- Single channel output
- Thickness
- Approx. 1.6 mm (PCB)
- Current Rating
- <100 mA
- Frequency
- Approx. 1 kHz (adjustable within RC limits)
- Mounting Method
- Tabletop or breadboard compatible
- Number of Stages
- Three-stage RC network
- PCB Material
- FR4 epoxy
- Suitable For
- Educational demonstration, laboratory, and DIY projects
- Load Compatibility
- Works with standard audio testing equipment
- Adjustment
- Trimmer/preset for frequency adjustment
- Output Amplitude
- Approx. 2V peak-to-peak (depends on supply and load)
- Waveform Type
- Sinusoidal, low distortion
- Oscillator Type
- Transistor-based RC phase shift oscillator
