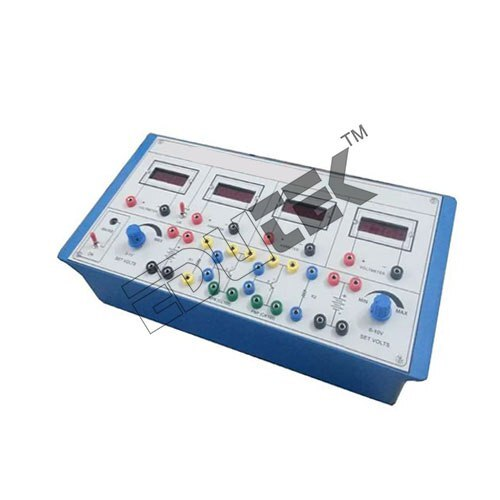

TRANSISTOR CHARACTERISTICS (CB, CE, CB IN NPN & PNP)

Name: TRANSISTOR CHARACTERISTICS (CB, CE, CB IN NPN & PNP)
Brand: EDUTEK INSTRUMENTATION
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

TRANSISTOR CHARACTERISTICS (CB, CE, CB IN NPN & PNP) Specification

Interface
4mm banana sockets for electrical connections

Components
NPN and PNP transistors (BC107, BC177 or equivalent), resistors, potentiometers, switches, test terminals

Features
Easy terminals, demonstration panel, experiment manuals included, simultaneous CB and CE study, rugged enclosure

Sensors Specification
No separate sensors, direct electrical measurement

Display Type
Analog or digital meter display (depends on model variant)

Power Source
Mains powered (AC 220V, 50Hz)

Input
Variable voltage and current input terminals

Output
Measurement terminals for output current and voltage

Response Time
Instantaneous meter response

Operating Temperature
0C to 40C

Resolution
Analog meter accuracy up to 0.1 units

IP Rating
Not rated for water/dust resistance

Power Supply
AC 220V, 50Hz

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Product Type
TRANSISTOR CHARACTERISTICS (CB, CE, CB IN NPN & PNP)

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
Up to 30V (varies by circuit configuration)

Supply Voltage
Dedicated regulated power supply 0-30V DC

Size
Panel size approx. 340 mm x 210 mm

Dimension (L*W*H)
Approx. 340 mm x 210 mm x 100 mm

Function
Transistor characteristic analysis for CB and CE configurations in both NPN and PNP types

Color
Black panel with white markings and silver/gray hardware

Weight
Approx. 3 kg

Capacity
Suitable for simultaneous CB and CE configuration experiments

Thickness
Panel thickness approx. 3 mm, components vary

Current Rating
Max 10 mA output current for test procedures

Frequency
DC to low-frequency operation

Mounting Type
Portable desktop instructional unit

Test Points
Clearly labeled test points for measurement

Accessories
Includes connecting leads and power cord

Training Manual
Comprehensive instruction/experiment manual included

Build Quality
Durable MS/ABS powder coated case

Transistor Types
Includes both NPN and PNP transistors

Transistor Configuration
Supports Common Base (CB) and Common Emitter (CE) modes

Meter Type
High-sensitivity moving coil meter or digital readout (model-specific)

Protection
Overload and short-circuit protected output

Educational Level
Ideal for undergrad/diploma engineering and technical institutes

Adjustments
Multi-turn potentiometer for fine voltage setting

TRANSISTOR CHARACTERISTICS (CB, CE, CB IN NPN & PNP) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About TRANSISTOR CHARACTERISTICS (CB, CE, CB IN NPN & PNP)

Discover first-rate engineering with our TRANSISTOR CHARACTERISTICS (CB, CE, CB IN NPN & PNP) instructional unit-crafted for precision and built for durability with a robust powder-coated MS/ABS case. Achieve instant savings with our lowest price offer and limited stock! This uncommon educational instrument supports both Common Base and Common Emitter configurations, accommodates simultaneous experiments with NPN and PNP transistors, and provides virtuoso-level safety through overload and short-circuit protection. Clearly labeled test points, a multi-turn potentiometer, and high-sensitivity meter ensure seamless operation. Ideal for undergraduate and diploma courses, this portable, user-friendly desktop solution includes an exhaustive training manual and all essential accessories.

Outstanding Features & Practical Uses

This highly durable unit excels in demonstrating the fundamental characteristics of NPN and PNP transistors through Common Base (CB) and Common Emitter (CE) configurations. It is meticulously designed for engineering electronic experiments, making it perfect for both specific laboratory work and general instructional use. With simultaneous CB and CE study capabilities, instant meter response, and intuitive controls, it delivers exceptional hands-on learning and in-depth understanding for students and educators alike.

Serving the Indian Market: Fast Quotes & Reliable Service

Serving the main domestic market with an unwavering commitment to quality, we offer express shipping options and a flexible quotation policy. Our sample policy supports academic institutions seeking trial units for evaluation or exchange programs. With a strong supply ability, we ensure rapid fulfillment of bulk orders, making us a choice exporter, manufacturer, and supplier of educational electronics across India.

FAQ's of TRANSISTOR CHARACTERISTICS (CB, CE, CB IN NPN & PNP):

Q: How can the TRANSISTOR CHARACTERISTICS unit benefit students and instructors in electronics labs?

A: This instructional unit enables hands-on analysis of transistor behavior in both CB and CE configurations, enhancing conceptual clarity and practical skills for both students and instructors in undergraduate and diploma-level electronics courses.

Q: What is the process for setting up CB and CE experiments using this unit?

A: Setup is straightforward; connect the required NPN or PNP transistor, select the desired configuration, use the labeled test points for measurement, and adjust the variable supply and potentiometer to observe transitory characteristics instantly via the analog or digital meter.

Q: Where can this product be used for optimal results?

A: It is best suited for engineering electronics labs in colleges, technical institutes, and universities, as well as for general demonstrations and teaching purposes in classroom environments.

Q: What kind of protection features does the unit offer?

A: The unit is engineered with overload and short-circuit protection to ensure user safety and safeguard the internal components during experimental use.

Q: When should technical institutions consider requesting a quotation for bulk orders?

A: Institutions should seek a quotation before academic sessions begin, especially when upgrading lab facilities or expanding student access to hands-on electronic experimentation.
