Digital Universal Testing Machine

Get a Price/Quote

Digital Universal Testing Machine Specification

Resolution
0.01 kN

Speed Range
0.5 to 500 mm/min

Screw Size
Acme threaded screw 50 mm

Machine Speed
Variable, digitally controlled

Power Consumption
1.5 kW

Control System
Digital microprocessor based

Phase
Single

Product Type
Digital Universal Testing Machine

Operating Temperature
10C 35C

Power Source
Electric

Frequency
50 Hz

Accuracy
1% of indicated load

Features
Digital load & displacement display, automatic stop, multiple test modes, RS232 interface

Load Capacity
200 kN (20 Ton)

Color
Blue and White

Sensor
High-precision Load Cell

Capacity
200 kN max

Weight
Approx. 680 kg

Stroke Length
0 800 mm

Voltage
220-240V AC, Single Phase

Dimension (L*W*H)
Approx. 1100 x 650 x 1800 mm

Application
Tensile, Compression, Bending, Shear testing on metal, rubber, plastic, etc.

Power
220V AC

Automatic Grade
Semi-Automatic

Material
Heavy-duty steel

Digital Universal Testing Machine Trade Information

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Digital Universal Testing Machine

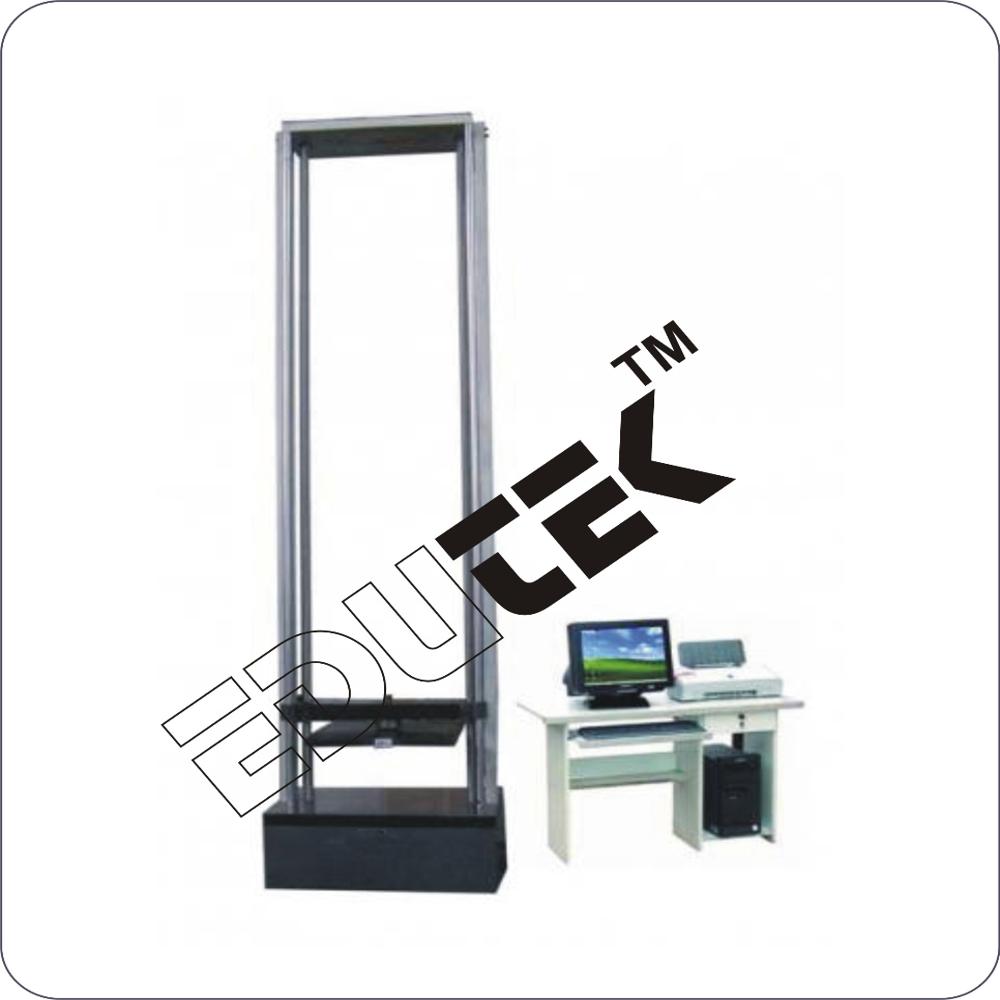

Digital Universal Testing Machine

This tester was ergonomically designed to provide a compact, low-cost, functional unit which is quick and easy to operate. It gives extremely high accuracy and yet is robust enough for routine quality control testing. The single and twin column designs permit all-round access to the specimen and grips.
The basic frame allows a total jaw separation of 1000 mm. However, extended frame having jaw separation upto 2000 mm may be supplied at additional cost.
The machine is operated on 230 volts. 1-ph, 50 c/s. A. C. Mains or as desired.
A comprehensive range of grips, attachments/fixtures, cutting dies are available to suit the testing needs of many different industries.
Capacities available: 20 Kgf to 10000 Kgf

Advanced Digital Testing Capabilities

Equipped with a digital LCD/LED display and microprocessor-based controls, the testing machine ensures accurate load and displacement measurements. With pre-loaded IS, ASTM, DIN, and ISO test standards, it supports a variety of material testing needs. The integrated digital extensometer (optional) enables precise elongation measurement, enhancing versatility and effectiveness for diverse applications.

Flexible & Reliable Data Management

Seamlessly connect to PCs using USB and RS232 ports for efficient data transfer and report generation. The systems software compatibility simplifies analysis, storage, and presentation of test results. The digital interface streamlines workflow for quality assurance teams, meeting the needs of manufacturers and testing laboratories who require detailed documentation and compliance with international standards.

Robust Safety and User Comfort

Built with heavy-duty steel and a powder-coated finish, the machine is durable and low-maintenance. It incorporates overload protection and an emergency stop button for operator safety. The noise level remains below 60 dB, ensuring a comfortable working environment. The semi-automatic design and interchangeable grips make operation simple, efficient, and adaptable to various sample types.

FAQs of Digital Universal Testing Machine:

Q: How can the machine accommodate different types of samples?

A: The testing machine utilizes interchangeable grips, allowing users to quickly switch between fixtures suitable for metals, plastics, rubber, and other materials. This flexibility supports a wide range of testing applications including tensile, compression, bending, and shear tests.

Q: What is the process for generating test reports using this equipment?

A: Test data can be easily transferred to a PC via USB or RS232 ports. The machines software interface supports detailed report generation, data analysis, and export, meeting laboratory documentation and quality assurance requirements.

Q: When should overload protection and emergency stop features be used?

A: Overload protection automatically safeguards both operator and equipment when excessive loads are detected. The emergency stop button should be engaged in any unexpected or hazardous situation during operation, immediately halting all machine activity for enhanced safety.

Q: Where is this Universal Testing Machine most effectively used?

A: This machine is ideally suited for quality control and material testing laboratories in manufacturing, research, and industrial environments within India and globally. Its adherence to IS, ASTM, DIN, and ISO standards supports a broad spectrum of testing protocols.

Q: What are the benefits of the digital LCD/LED display and advanced sensors?

A: The digital display provides real-time, high-resolution readouts of load and displacement values, while the high-precision load cell ensures measurement accuracy within 1%. This helps users obtain reliable, repeatable test results with minimal room for error.

Q: How does the machine maintain quiet operation?

A: With a noise level below 60 dB and a digitally controlled motor, the testing process remains unobtrusive, promoting a better workplace environment without compromising high performance.
