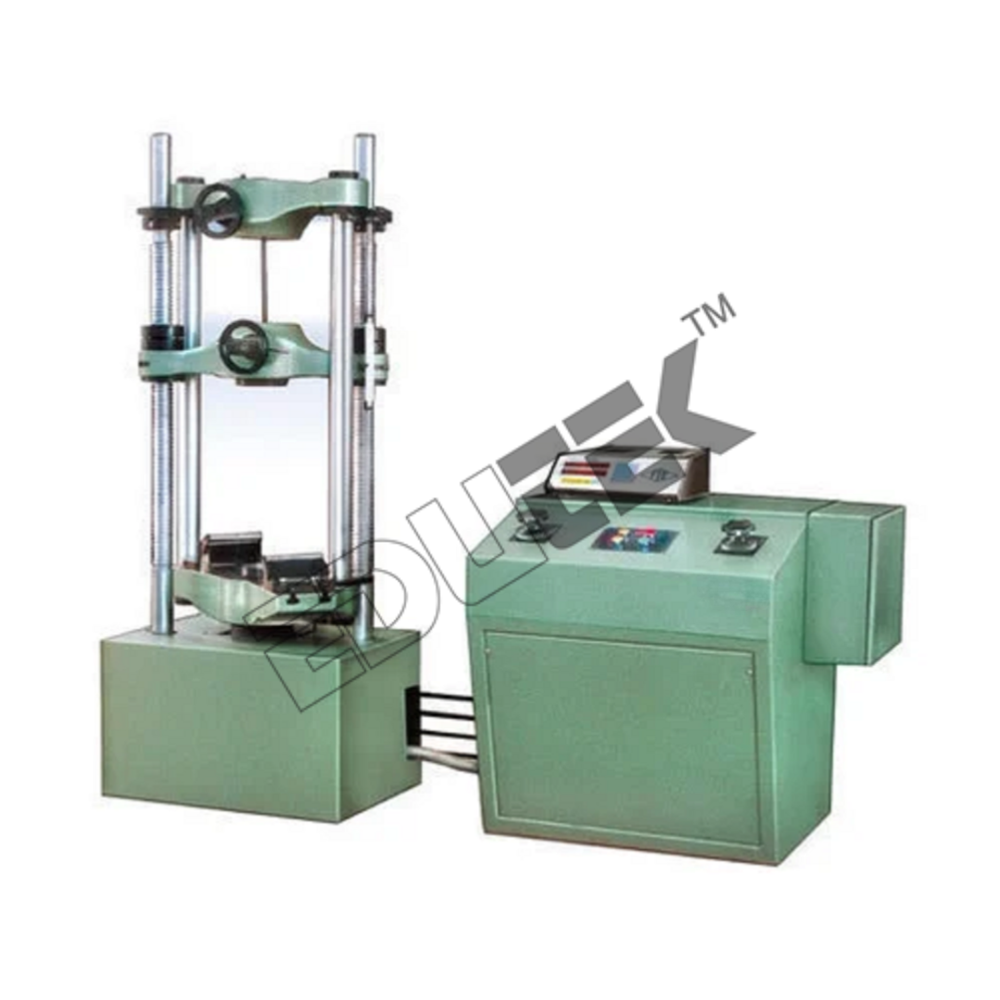

Standard Universal Testing Machine - Digital

Price 1000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Standard Universal Testing Machine - Digital Specification

Speed Range
0.5 to 50 mm/min

Phase
Single Phase

Capacity
100 kN

Weight
Approx. 1100 kg

Dimension (L*W*H)
850 x 600 x 1950 mm

Voltage
230 V AC

Sensor
Strain gauge load cell

Operating Temperature
10C to 40C

Stroke Length
700 mm

Accuracy
1% of indicated value

Application
Tensile, Compression, Bending, Shear Testing

Power Consumption
2 kW/hr

Resolution
0.01 kN

Control System
Microprocessor based digital control

Power Source
Electric

Color
Blue & Silver

Machine Speed
Variable, programmable

Product Type
Universal Testing Machine - Digital

Features
Digital display, Auto-stop at break, Overload protection, Data storage capability

Power
2 kW

Frequency
50 Hz

Load Capacity
100 kN (10 Ton)

Screw Size
45 mm lead screw

Automatic Grade
Semi-automatic

Material
Heavy-duty steel frame

Display Type
Digital LCD/LED

Test Modes
Tensile, Compression, Flexural, Shear

Test Speed Accuracy
±1% of set value

Frame Construction
Welded rigid structure

Crosshead Travel
700 mm

Gripping Range
Up to 30 mm flat and 15 mm round specimens

Lubrication
Automatic

Hydraulic Power Pack Capacity
15 liters

Data Output
USB/RS232 interface

Operator Interface
Touch keypad

Safety Features
Overload and over-travel protection

Test Standards
Conforms to IS, ASTM, DIN standards

Noise Level
Less than 70 dB

Software
Analysis and report generation software included

Emergency Stop
Provided

Standard Universal Testing Machine - Digital Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Letter of Credit (L/C), Telegraphic Transfer (T/T), Cash in Advance (CID), Cheque, Cash Advance (CA)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Middle East, Africa, Eastern Europe, Western Europe

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Standard Universal Testing Machine - Digital

Standard Universal Testing Machine - Digital

FEATURES:

Loading Accuracy as high as + 1%.
Straining at variable speeds to suit a wide range of materials.
Manual adjustment of cross-head. (Motor driven threaded columns for quick effortless adjustment of lower cross head-to facilitate rapid fixing of test specimen.(optional).
Simplicity in load reading because of digital readouts.
Wide range of standard and special accessories.
Easy change from plain to threaded and screwed specimens.
Large effective clearance between columns enables testing of standards specimens as well as structures.
Simple controls for easy of operation.
Robust staining frame of an extremely rigid construction.
Safe operation ensured by means of safety devices.
No pendulum is used.
Optional serial port to transfer data to computer for analysis /storage etc.
Control and Printer are supplied as option to enable obtain test data & load-vs-elongation curve for studying the behavior of the materials.(optional).
Capacities available : from 5T(50KN) to 200T(2000KN).

Versatile Testing Capabilities

This digital universal testing machine supports a broad spectrum of tests, including tensile, compression, bending, and shear, accommodating both flat (up to 30 mm) and round (up to 15 mm) specimens. Conforming to international testing standards like IS, ASTM, and DIN, it ensures consistent, accurate assessment of material properties for quality assurance and research purposes.

Advanced Digital Control and Safety

Equipped with a microprocessor-based digital control system, the machine provides precise control over test modes, speed, and data output. Safety is paramount, with features like emergency stop, overload, and over-travel protection, ensuring operator and equipment security during operation. Automatic lubrication and a noise level under 70 dB also enhance the working environment.

Efficient Data Management

The user-friendly digital display and touch keypad interface enable straightforward test setup and monitoring. Test data can be easily exported via USB/RS232 ports, while the included software offers comprehensive analysis and report generation, streamlining workflow for manufacturers, suppliers, and laboratories seeking documentation and traceability.

FAQs of Standard Universal Testing Machine - Digital:

Q: How do I operate the Standard Universal Testing Machine safely during testing?

A: To operate the machine safely, ensure specimens are correctly gripped using the appropriate jaws for flat or round samples. Activate the emergency stop in case of any unexpected event, and rely on built-in overload and over-travel protection for additional security. Regularly check that the automatic lubrication system is functioning.

Q: What types of material tests can be performed with this universal testing machine?

A: The machine is designed to conduct tensile, compression, flexural, and shear tests. It is ideal for various materials, and supports both flat specimens up to 30 mm and round specimens up to 15 mm in diameter. Testing conforms to IS, ASTM, and DIN industry standards.

Q: When is it appropriate to use the digital analysis and report generation software?

A: Use the analysis and report generation software after completing each test to evaluate parameters and generate detailed reports for quality control, research, or archival purposes. The software is included and works with data exported through the USB/RS232 interface.

Q: Where can I utilize this universal testing machine effectively?

A: This machine is best suited for laboratories, manufacturing units, research centers, and quality assurance departments where material strength, durability, and performance need to be assessed according to globally recognized standards.

Q: What is the process for setting up and conducting a material test on this machine?

A: The process involves preparing the specimen, loading it into the grip, selecting the desired test mode (tensile, compression, etc.) via the touch keypad, setting the test speed, and starting the procedure. The microprocessor-based control system manages all operational parameters, while results are displayed digitally and stored for analysis.

Q: How does using this machine benefit my material testing workflow?

A: The machine offers precise measurement, programmable speed control, automatic data management, and comprehensive safety features. Its robust construction and compliance with international standards enhance reliability, while the digital interface and software support efficient workflow from testing to report generation.
