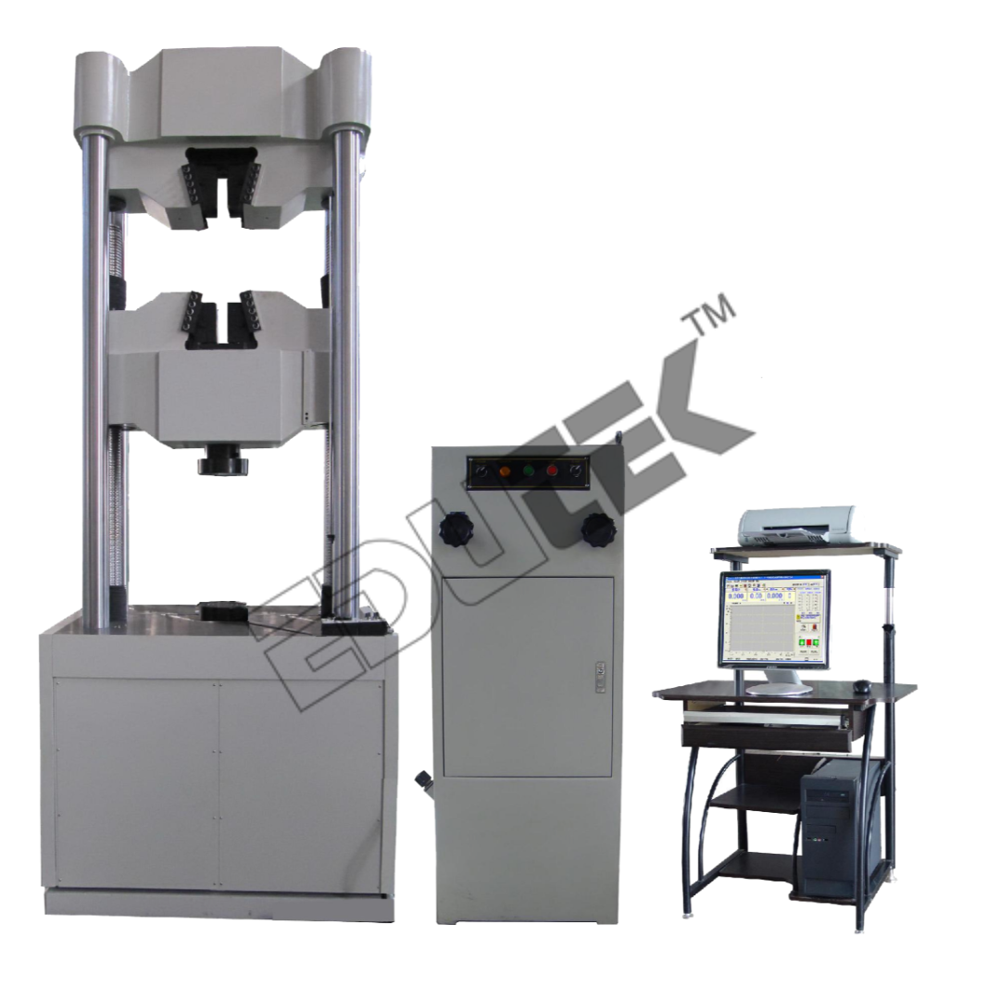

Computerized Universal Testing Machine

Get a Price/Quote

MOQ : 1 Unit

Computerized Universal Testing Machine Specification

Sensor
Load Cell & Encoder

Phase
Single Phase

Control System
Microprocessor-based with computer interface

Power
220V AC, 50Hz

Resolution
0.01 mm displacement, 0.01 kN force

Speed Range
0.5 to 500 mm/min

Features
Computerized control, Digital display, Data acquisition, Overload protection

Dimension (L*W*H)
1200 x 700 x 2100 mm

Product Type
Computerized Universal Testing Machine

Application
Tensile, Compression, Bending, Shear Tests for metals, plastics, rubber etc.

Color
Blue & White

Power Consumption
2.2 kW

Accuracy
1% of indicated load

Capacity
10000 kg

Frequency
50 Hz

Operating Temperature
10C to 40C

Load Capacity
100 kN (other capacities available)

Machine Speed
0.05 to 500 mm/min (variable)

Voltage
220 V

Screw Size
40 mm (lead screw type)

Weight
approx. 1200 kg

Power Source
Electric

Stroke Length
800 mm

Automatic Grade
Automatic

Material
Heavy-duty steel structure

Data Output
USB and RS232 interfaces

Crosshead Travel
800 mm (excluding grips)

Display Type
7-inch TFT Color Touchscreen & PC software

Software Features
Real-time graphic display, Report generation, Auto-calculation of test parameters

Calibration
Supplied with calibration certificate

Crosshead Positioning Accuracy
0.5 mm

Language Support
English (other language options available)

Standards Compliance
IS, ASTM, BS & DIN

Gripping Devices
Inclusive: Wedge, Compression, and Bending Grips

Safety Interlocks
Emergency Stop, Over travel, and Overload auto cut-off

Operating Humidity
Up to 90% RH, non-condensing

Machine Frame
Two column, rigid welded construction

Operating Environment
Laboratory / Industrial

Test Modes
Tensile, Compression, Flexural, Shear

Computerized Universal Testing Machine Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Computerized Universal Testing Machine

Computerized Universal Testing Machine

Specifications:

Effective Column Interval(mm): 300 to 750 depending upon machine capacity.
Crosshead Speed(mm/min): from 50 to 100 depending upon machine capacity.
Testing Speed(mm/min): from 50 to 250 depending upon machine capacity.
Machine weight : 1500 to 4000kg depending upon machine capacity.
Power: 220/440V, 50HZ or as desired by customers.
Tension (mm): Max.Space:700, Grip for Rod: 10 ~ 70, Grip for Plate: 13~ 65x90.

Advanced Testing Versatility

This universal testing machine is engineered to handle a broad spectrum of test types, including tensile, compression, flexural, and shear tests. With a wide capacity range (10000 kg) and multiple gripping devices included, it accommodates a diverse range of materials and testing standards, making it an ideal choice for laboratory and industrial testing needs.

Comprehensive Data Management

Data acquisition is streamlined via USB and RS232 outputs, providing flexibility for documentation and analysis. The systems dedicated PC software enables automated calculation of test parameters, real-time curve display, and professional report generation, enhancing productivity and traceability in quality control processes.

Safety and Precision Built-In

Featuring essential safety interlocks such as emergency stop, over travel, and automatic overload cut-off, this machine prioritizes operator protection. Precise crosshead positioning (+/-0.5 mm), high sensitivity sensors (0.01 mm displacement, 0.01 kN force), and a robust steel frame guarantee accurate and repeatable results for every test.

FAQs of Computerized Universal Testing Machine:

Q: How does the computerized universal testing machine ensure accurate test results?

A: The machine delivers high accuracy through advanced load cells, encoders, a rigid welded frame, and fine crosshead positioning of 0.5 mm. Automated data acquisition and auto-calculation of parameters through dedicated software further enhance reliability and precision for all test types.

Q: What gripping devices are included, and what tests can be performed?

A: This universal testing machine comes with wedge, compression, and bending grips, allowing it to perform tensile, compression, bending, and shear tests on various materials such as metals, plastics, and rubber.

Q: When should the emergency stop and overload protection features be used?

A: The emergency stop and automatic overload cut-off should be activated whenever there is a risk to operator safety or potential equipment damage, such as during unexpected specimen failure or mechanical issues during testing. These safety interlocks are built-in and ensure rapid response to hazards.

Q: Where can this machine be operated, and what are its environmental requirements?

A: The machine is suitable for laboratory and industrial environments and operates efficiently within 10C to 40C and up to 90% relative humidity (non-condensing conditions). Its robust construction supports stable use in demanding settings.

Q: What data output and report capabilities does the system offer?

A: Test data can be exported via USB and RS232 interfaces. The included PC software provides real-time graphical analysis, automated calculation of test results, and customizable report generation, facilitating comprehensive documentation and data sharing.

Q: How is calibration handled, and is the machine standardized?

A: Each machine is supplied with a calibration certificate and conforms to international standards such as IS, ASTM, BS, and DIN, ensuring it meets rigorous quality and accuracy requirements for professional testing applications.

Q: What are the benefits of the 7-inch TFT color touchscreen and PC interface?

A: The 7-inch TFT color touchscreen provides intuitive local control, quick parameter input, and immediate data visualization. When connected to a PC, advanced analysis, graphical display, and report management are accessible, enhancing user experience and laboratory efficiency.
