Compression Testing Machine

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Compression Testing Machine Specification

Accuracy
1% of indicated load

Dimension (L*W*H)
1100 x 500 x 1400 mm

Power
3 Phase, 1.5 kW

Color
Blue/White (as shown in image)

Speed Range
0.5 to 5 mm/min (variable)

Capacity
Up to 2000 kN

Weight
Approx. 750 kg

Phase
Three Phase

Power Source
Electric

Operating Temperature
5C to 50C

Stroke Length
150 mm

Frequency
50 Hz

Features
Digital display, Automatic Peak Hold, Overload Protection

Resolution
0.1 kN

Power Consumption
1.5 kW

Voltage
380V AC

Screw Size
M36

Application
Concrete, Cement, Building Materials, Construction Industry

Control System
Digital / Microprocessor Based

Load Capacity
2000 kN (optional ranges available)

Machine Speed
Adjustable, digital control

Product Type
Compression Testing Machine

Sensor
Load Cell

Automatic Grade
Semi-Automatic

Material
Mild Steel Body

Display Type
Digital LCD

Platen Size
225 mm diameter

Display Units
kN and kgf selectable

Frame Type
Four Pillar Type

Hydraulic System
Double acting, high pressure

Surface Finish
Powder Coated

Calibration
Standard with calibration certificate

Oil Reservoir Capacity
30 liters

Data Output
RS232 / USB interface

Standards Compliance
IS:516, BS1881 & ASTM C39/C39M

Data Storage
USB and onboard memory

Safety
Emergency stop switch, Limit switch protection

Compression Testing Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Compression Testing Machine

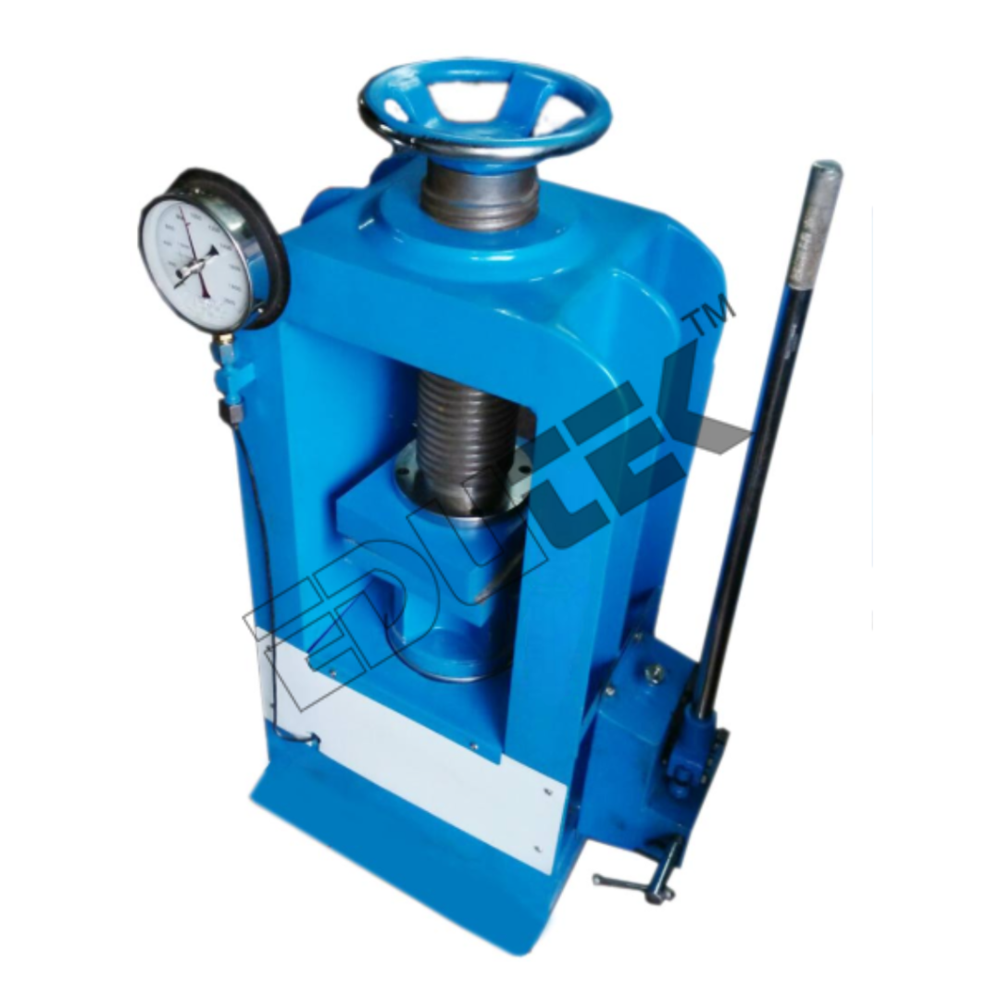

Compression Testing Machine

Compression Testing Machine 1000KN (100 Tons) Capacity (Economy Channel Model) Hand Operated fitted with 15 cm dia load gauge. Designed for testing of Cement, Concrete Moulds of Various sizes 15cm x 15cm x cubes, 10cm x 10cm x cubes, 7.06 cm x 7.06 cm cubes, 15cm x 30cm cylindrical mould, bricks can also be tested by the help of adjustable hand wheel.
The Machine is calibrated against NPL/NCCBM certified Proving Ring.

Reliable and Accurate Testing for Construction Materials

Equipped with a precision load cell sensor, this machine ensures accurate compression testing of cement, concrete, and other building materials. The machine provides 1% accuracy, automatic peak hold, and overload protection to support dependable quality analysis, making it an essential tool for research laboratories and industrial quality control.

User-Friendly Digital Control and Data Management

Managing results is seamless with an intuitive LCD digital display and microprocessor-based control system. Operators can store test data directly onboard or export via USB and RS232 for extensive reporting and analysis. The selectable display units, adjustable testing speeds, and automatic features simplify operation and reduce manual intervention.

Built-in Safety and Compliance

This machine prioritizes safety with an emergency stop switch, limit switch protection, and robust design. It complies with major global standards, including IS:516 and ASTM specifications, ensuring accurate, standardized testing outcomes every time. Its powder-coated, mild steel body withstands heavy industrial usage while maintaining operator safety.

FAQs of Compression Testing Machine:

Q: How is the compression testing process performed using this machine?

A: The machine uses a four-pillar, double-acting hydraulic frame to apply controlled force to material samples placed between 225 mm diameter platens. The test speed, ranging from 0.5 to 5 mm/min, is digitally adjustable. Results are displayed on the LCD and stored, ensuring precise load application and measurement.

Q: What are the primary benefits of the digital LCD display and data storage options?

A: The digital LCD display allows for clear, real-time viewing of test results in selectable kN or kgf units. Data can be conveniently stored on onboard memory or exported via USB/RS232, simplifying record-keeping, analysis, and compliance documentation.

Q: When does the machine provide overload protection during testing?

A: Overload protection is automatically activated if the applied load exceeds the machines safety threshold. This, combined with an emergency stop switch and limit switch protection, ensures safety for both the operator and the equipment throughout all testing stages.

Q: Where can this compression testing machine be installed?

A: Designed with a compact footprint (1100 x 500 x 1400 mm), this machine is suitable for installation in industrial laboratories, construction material testing sites, and manufacturing plants. Its robust build allows it to operate reliably in environments from 5C to 50C.

Q: What standards does this machine comply with and why is it important?

A: The machine is designed according to IS:516, BS1881, and ASTM C39/C39M standards, which ensures that test results are recognized internationally for quality assurance, regulatory compliance, and construction safety purposes.

Q: How is calibration handled and documented for this machine?

A: Calibration is performed to standard specifications and each unit is supplied with an official calibration certificate. This guarantees measurement accuracy and supports traceability for quality management systems.
