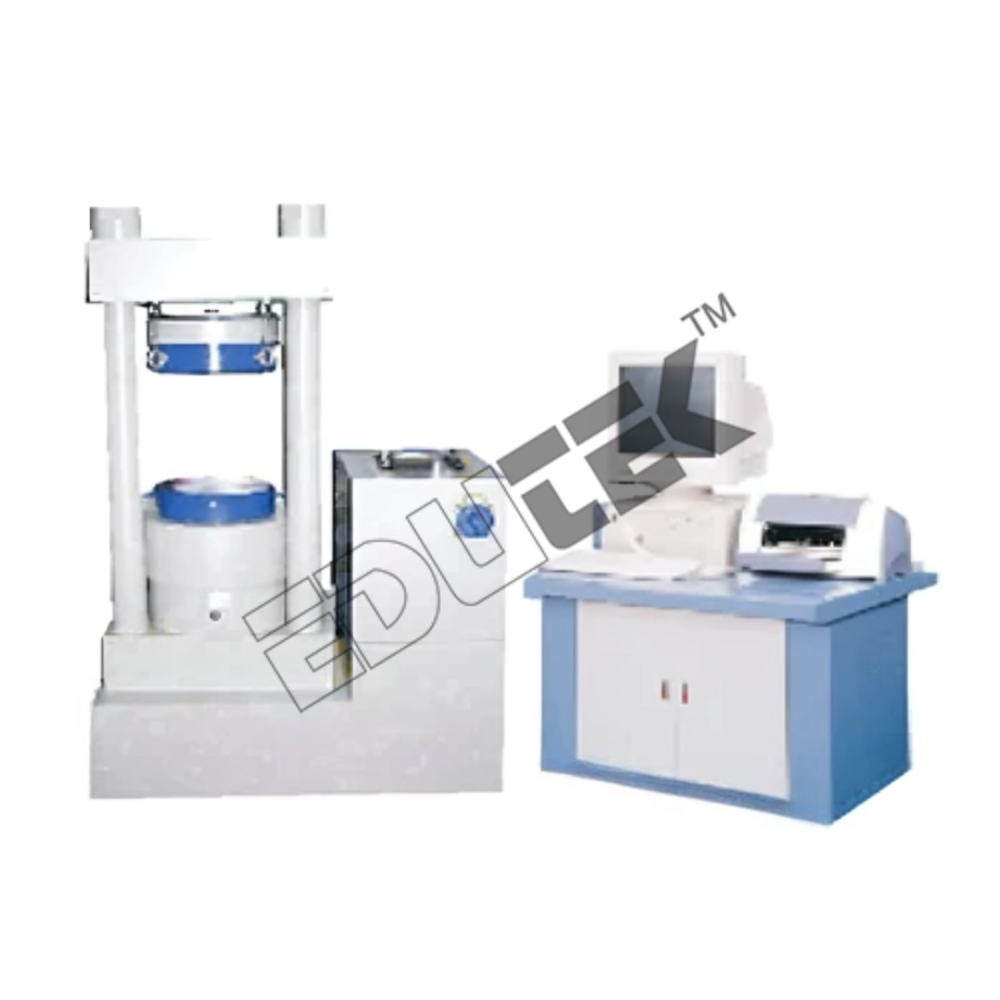

Computerized Compression Testing Machine

Get a Price/Quote

MOQ : 1 Piece

Computerized Compression Testing Machine Specification

Stroke Length
120 mm

Application
Concrete cube and cylinder compression testing

Accuracy
±1% of indicated load

Product Type
Computerized Compression Testing Machine

Power
3 Phase, 415V AC

Machine Speed
Variable, programmable

Speed Range
0.1 mm/min to 50 mm/min

Dimension (L*W*H)
Approx. 1200 mm x 700 mm x 1700 mm

Control System
Computer Control with dedicated software

Power Source
Electric

Screw Size
50 mm

Operating Temperature
+5°C to +40°C

Features
Motorized piston movement, Digital display, Data logging, Automatic overload protection

Voltage
415 V AC

Phase
Three Phase

Resolution
0.01 kN

Sensor
High precision Load Cell

Frequency
50 Hz

Load Capacity
2000 kN (2,000,000 N)

Weight
Approx. 650 kg

Capacity
Up to 2000 kN

Color
Blue/Grey

Power Consumption
1.5 kW

Automatic Grade
Automatic/Computerized

Material
Mild steel with powder coated finish

Software Compatibility
Windows compatible operating software included

Data Output
USB, RS232, and network connectivity

Data Storage
Internal memory and export to external drives

Backup Power
Optional UPS for data protection

Displacement Transducer
Included for accurate stroke measurement

Oil Reservoir Capacity
15 liters

Hydraulic Pump
High efficiency, low noise oil pump

Standards Conformity
IS: 516, BS 1881, EN 12390 and ASTM C39 compliant

Safety
Emergency stop, overload safety, alarm system

Display Interface
LCD digital display with graphical user interface

Frame Construction
Robust welded steel frame for high stability

Surface Finish
Corrosion resistant, powder coated

Language Support
Multi-language interface

Ambient Humidity
Up to 85% RH non-condensing

Platen Size
220 mm x 220 mm

Calibration
Supplied with calibration certificate

Noise Level
Below 70 dB during operation

Computerized Compression Testing Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Computerized Compression Testing Machine

Computerized Compression Testing Machine :

Applications :

High performances, high resolution test for routine and complex tests and calculation with measurement of sample strain.

Main features:

High precision and resolution.
Control system by PC and keyboard.
User friendly software for management of the console also for non-expert users
Performance of many types of tests.
Software calibration and linear station facilities(optional).
Real time monitoring of test data (load, stress, strain, time) either in graphic format or as data.
Real time processing of test data (e.g. determination of E-modulus) either in graphic format or as data (optional).
Input of dimensions and descriptions of the sample: age, preparation, etc.
Input of descriptive and administrative test data: client, test centre, place of test, etc.
Input of test parameters and settings: load rate, peak, sensitivity, etc.
Input of data after test completion: type of failure, etc.
Single and/or batch storage of test data in ASCII and/or other defined formats.
Printout of customisable certificates.

Advanced Digital Interface

Equipped with an intuitive LCD digital display and graphical user interface, this machine provides real-time data visualization, customizable in multiple languages. The software is Windows compatible, ensuring smooth integration, and is supplied with each unit for immediate operation.

Robust and Reliable Construction

The welded steel frame, combined with a corrosion-resistant, powder-coated finish, offers high stability and durability even in challenging testing environments. Precision measurement is assured thanks to a high-accuracy displacement transducer and load cell.

Efficient Data Management

Store and export test results easily through internal memory and multiple connectivity options, including USB, RS232, and Ethernet. Data can be backed up with optional UPS support, ensuring integrity even during power interruptions.

Safety and Compliance Assured

With built-in safety features such as emergency stop, overload protection, alarm systems, and CE-standard compliance (IS: 516, BS 1881, EN 12390, ASTM C39), the machine prioritizes both operator safety and testing accuracy.

FAQs of Computerized Compression Testing Machine:

Q: How does the machine ensure accurate compression testing for concrete samples?

A: The machine utilizes a high-precision load cell and displacement transducer for accurate load and stroke measurement, achieving a testing accuracy of 1%. The programmable speed range and stable steel frame further enhance precision.

Q: What data management options are available for test results?

A: Users can store test data in the internal memory or export results via USB drives, RS232, and Ethernet connectivity. The included software enables direct data analysis and reporting on Windows computers.

Q: When is calibration required, and how is it managed?

A: Calibration is performed prior to shipping, and each unit is supplied with a calibration certificate. Periodic recalibration can be undertaken as per usage frequency or quality protocols to maintain testing accuracy.

Q: Where can this machine be used, and under what environmental conditions?

A: The machine is suitable for laboratories, construction sites, and research facilities. It operates effectively within +5C to +40C and up to 85% RH non-condensing humidity.

Q: What safety features are included to protect operators and equipment?

A: Emergency stop, overload safety mechanisms, and integrated alarm systems minimize risks during operation. Automatic overload protection and a noise level below 70 dB ensure a safe and comfortable testing environment.

Q: What is the process for exporting test results to external devices?

A: After completing a test, results can be saved internally and exported to external drives using USB or RS232 ports. The software also allows network transfer for efficient data sharing.

Q: What are the key benefits of using this computerized compression testing machine?

A: The system offers superior accuracy, versatile data handling, advanced safety, ease of use with its multi-language interface, and compliance with global testing standards, making it an ideal choice for quality control and research.
