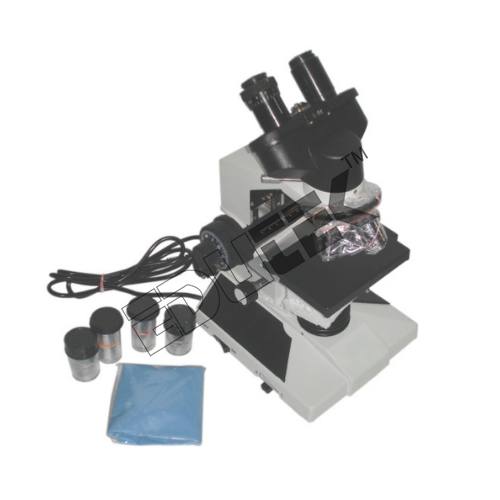

Send InquiryBinocular Microscope
MOQ : 1 Piece
Binocular Microscope Specification
- Application
- Research Microscope
- Focus System
- Coarse and fine coaxial focusing system.
- View Head
- Binocular, 360 rotatable.
- Product Type
- Binocular Microscope
- Spare Parts
- Eyepiece, objectives, bulb, fuse, stage clips available as spares.
- Features
- Wide field eyepieces, precise focusing, sturdy construction, anti-fungal optical coatings.
- Usage
- Laboratory
- Material
- Mild Steel
- Theory
- Other
- Drawtube
- Other
- Sensor
- Not applicable (optical microscope).
- Resolution
- N/A (visual optical resolution dependent on eyepiece and objective combination).
- Interface
- Not applicable (standard optical use); optional camera port available in some models.
- Frame Rate
- N/A for standard optical use; camera optional.
- Focal Distance
- Working distance varies, typically 7.6 mm with 40x objective. Millimeter (mm)
- Magnification
- 40X to 1000X (with standard objectives and eyepieces).
- Dimensions
- Approx. 360 x 280 x 180 mm (H x L x W). Millimeter (mm)
- Focus Range
- Coarse and fine adjustments available; range typically 15 mm for coarse. Millimeter (mm)
- Eyepieces
- Wide field 10X (WF10x) paired eyepieces.
- Eyepiece Tube
- Binocular, inclined 45 , 360 rotatable.
- Illumination
- LED or halogen bulb, built-in, adjustable brightness.
- Coarse Adjustment Range
- 15 mm travel approximately.
- Fine Adjustment Range
- 0.002 mm per graduation, precise focusing.
- Working Stage
- Mechanical stage 125 x 115 mm with x-y movement. Square Millimeter (mm2)
- Still Image Capture Resolution
- N/A unless optional camera attached.
- Video Capture Resolution
- N/A unless optional camera attached.
- Image Format
- N/A (visual observation); optional camera supports JPG/PNG.
- Interpupillary Distance
- 55-75 mm adjustable. Millimeter (mm)
- Objective Achromatic
- 4X, 10X, 40X (spring), 100X (spring, oil immersion) included.
- Condenser
- Abbe condenser, N.A. 1.25, with iris diaphragm and filter holder.
- Light Source
- LED or halogen lamp, 220V/110V AC.
- Nosepiece
- Quadruple revolving nosepiece with ball bearings.
- Power Supply
- AC 220V/50Hz or 110V/60Hz as per region.
- Filter Holder
- Yes, with standard blue filter included.
- Weight
- Approximately 7.5 kg (net weight).
- Stage Movement Range
- 70 mm X-axis, 30 mm Y-axis.
- Stage Graduation
- 0.1 mm for accurate specimen positioning.
- Color
- White with black stage and accents.
- Stage Clips
- Yes, provided for slide holding.
- Anti-Fungal Coating
- Optics treated to prevent fungal growth.
- Diopter Adjustment
- Provided on left eyepiece tube for individual adjustment.
- Body Material
- Die-cast metal body with powder coated finish for durability.
Binocular Microscope Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA), Cash in Advance (CID)
- Sample Available
- No
- Sample Policy
- Sample costs shipping and taxes has to be paid by the buyer
- Packaging Details
- carton box, export quality also available
- Main Export Market(s)
- Asia, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001 ,CE
About Binocular Microscope
Binocular Microscope ETMS-133A
Binocular Microscope: Specifications of body as above but provided with Binocular observation head inclined at 45° rotatable through 360° and with interpupillary adjustment.
With Hygenian eye-pieces 10X, 15X (Paired) Achromatic
Objectives 5X, 10X, 45X & 100X - oil immersion (spring
loaded) detachable mechanical stage
Magnification 50X to 1500X
Precision Engineering for Reliable Observation
This microscope is constructed with a durable die-cast metal frame, ensuring longevity in rigorous lab environments. The mechanical stage, equipped with graduations and stage clips, allows for meticulous and repeatable specimen placement. Quadruple nosepiece supported by ball bearings and high-quality, anti-fungal treated optics contribute to dependable, high-resolution viewing of samples.
Comfortable Binocular Viewing Experience
The binocular head is inclined at 45, reducing eye and neck strain, and rotates a full 360 for collaborative work. Adjustable interpupillary distance (5575 mm) and diopter settings on the left eyepiece permit personalized visual comfort for extended use during academic or research activities.
Versatile Illumination With Advanced Optics
Choose between LED or halogen illumination for optimal lighting, with adjustable brightness to suit various sample types. The integrated Abbe condenser with iris diaphragm enhances contrast and resolution. Achromatic objectives and wide field eyepieces provide sharp, detailed views at magnifications from 40X to 1000X.
FAQs of Binocular Microscope:
Q: How does the mechanical stage enhance specimen positioning?
A: The mechanical stage offers a 70 mm range along the X-axis and 30 mm along the Y-axis, with 0.1 mm graduations. This allows users to precisely move and position slides, ensuring accurate examination and repeatable specimen location.Q: What are the primary benefits of the anti-fungal coatings used in the microscopes optics?
A: Anti-fungal coatings on all optical components safeguard against fungal growth, preserving image quality and extending the microscopes longevity, especially in humid laboratory or classroom environments.Q: When should the oil immersion objective be used, and what is its benefit?
A: The 100X oil immersion objective should be used when observing very fine specimen details at high magnification. Oil immersion enhances image resolution and clarity by increasing the numerical aperture and reducing light refraction at high magnifications.Q: Where can spare parts like eyepieces or bulbs be obtained for this microscope?
A: Spare parts, such as eyepieces, objectives, bulbs, fuses, and stage clips, are available from authorized suppliers, exporters, or directly from the manufacturer in India, ensuring ongoing usability and maintenance.Q: How does the microscope accommodate different users for comfortable viewing?
A: The binocular head is adjustable for interpupillary distance (5575 mm) and includes individual diopter adjustment on the left eyepiece. The 45 inclination and 360 rotation facilitate comfortable and ergonomic viewing for various users.Q: What power options and illumination sources are available?
A: The microscope operates on either AC 220V/50Hz or 110V/60Hz power, as required for your region. It offers built-in LED or halogen illumination with adjustable brightness, ensuring optimal lighting for diverse specimens and viewing needs.
