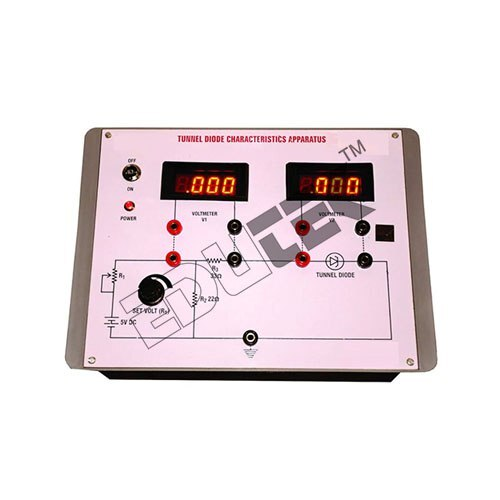

Send InquiryTUNNEL DIODE CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & DIGITAL PANEL METERS
Price 50.0 INR/ Piece
MOQ : 1 Piece
TUNNEL DIODE CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & DIGITAL PANEL METERS Specification
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Display Type
- Digital Panel Meters
- Power Source
- AC Mains
- Resolution
- Digital panel meters: 3/2 digit display
- Output
- Tunnel Diode voltage and current readings
- Interface
- Direct knob operation, panel connections
- Input
- Variable DC Input (via inbuilt supply)
- Components
- Tunnel diode, precise digital meters, potentiometer, resistors, fuses, etc.
- Response Time
- Instantaneous digital readout
- Power Supply
- 230V 10% AC, 50Hz
- Operating Temperature
- 10C to 40C
- Features
- Rugged Bakelite enclosure, digital readout, onboard tunnel diode, clearly labeled panel
- IP Rating
- Not rated
- Sensors Specification
- Inbuilt for current and voltage measurement
- Product Type
- TUNNEL DIODE CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & DIGITAL PANEL METERS
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Rated Voltage
- 220V AC
- Supply Voltage
- 230V AC
- Size
- Standard Lab Bench Size
- Dimension (L*W*H)
- 310 mm x 225 mm x 110 mm (approx.)
- Function
- To study and plot the V-I Characteristics of a Tunnel Diode.
- Color
- Black & Gray (Bakelite Panel)
- Weight
- Approx. 3 kg
- Capacity
- Suitable for laboratory use
- Current Rating
- Typically up to 10 mA DC
- Thickness
- Panel thickness approx. 6 mm
- Frequency
- 50 Hz
TUNNEL DIODE CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & DIGITAL PANEL METERS Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About TUNNEL DIODE CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & DIGITAL PANEL METERS
Specification:
TUNNEL DIODE CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & DIGITAL PANEL METERS
Inbuilt variable DC regulated power supply (0-5VDC)
On Board two Digital meters
4mm Banana Type Sockets on front panel
Symbol diagram printed on Bakelite Front Panel
Power Requirements: 230V AC 10%, 50Hz
Exceptional Measurement Accuracy
Equipped with digital voltmeter and ammeter, the Tunnel Diode Characteristics Apparatus offers instant, precise digital readings with a 3/2 digit display. Factory calibration ensures reliable data, making it a trustworthy tool for plotting accurate V-I curves and conducting thorough diode analyses in laboratory environments.
Safety and Reliability Built-In
Safety is paramount: the apparatus includes an inbuilt fuse for protection against short circuits and overloads. High-grade Bakelite construction and compliance with educational standards enhance durability, while benchtop mounting ensures stability. All connections are clearly labeled, allowing users to operate confidently and securely.
User-Friendly Controls and Accessories
Fine and coarse adjustment potentiometers grant meticulous control over variable DC input settings. The apparatus features banana sockets for easy external measurements. Supplied with patch cords and a comprehensive instruction manual, its ready to use, streamlining the experimental process for students and educators alike.
FAQs of TUNNEL DIODE CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & DIGITAL PANEL METERS:
Q: How do I use the Tunnel Diode Characteristics Apparatus in laboratory experiments?
A: To use the apparatus, connect the tunnel diode and measurement meters using the supplied patch cords and banana sockets. Adjust the variable DC input via fine and coarse potentiometers to study different voltage and current values, then record the readings on the digital panel meters for plotting V-I characteristics.Q: What are the benefits of the built-in fuse protection in this system?
A: The built-in fuse offers safety by protecting the apparatus against short circuits and overload conditions. This ensures the longevity of the equipment and reduces the risk of damaging integral components during experiments, making the device both safe and reliable.Q: When should I recalibrate the digital panel meters on the apparatus?
A: The apparatus is factory calibrated and ready for use upon delivery. Routine recalibration isnt necessary unless you observe discrepancies in readings or after prolonged usage. If recalibration is needed, it is recommended to refer to the instruction manual or consult with technical support.Q: Where can this Tunnel Diode Characteristics Apparatus be installed?
A: Designed for benchtop mounting, the apparatus is suitable for standard laboratory environments in engineering colleges and research facilities. Its size and rugged build make it ideal for placement on laboratory benches or workstations.Q: What process is followed to generate the V-I characteristics of the tunnel diode?
A: Begin by providing a variable DC input to the tunnel diode using the potentiometers. As you adjust settings, measure the diodes voltage and current using the digital meters, then plot these values to observe the diodes characteristic curve, including regions of negative resistance unique to tunnel diodes.Q: How does the apparatus aid in engineering education?
A: This apparatus allows hands-on study of tunnel diode properties, helping students visualize and plot V-I characteristics accurately. Its straightforward controls, digital readout, and comprehensive documentation foster understanding of semiconductor devices, supporting laboratory curricula and practical electronics training.Q: What accessories come with the Tunnel Diode Characteristics Apparatus for convenient usage?
A: The package includes patch cords for connections, an instruction manual for guidance, and all necessary componentssuch as the tunnel diode, meters, potentiometers, and protective fusesensuring users have everything required for immediate setup and operation.
