COLPIT OSCILLATOR

Name: COLPIT OSCILLATOR
Brand: EDUTEK INSTRUMENTATION
Price: 1000.0 INR
Availability: InStock

Price 1000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

COLPIT OSCILLATOR Specification

Components
Transistor, Capacitors, Inductors, Variable Resistor (Potentiometer), PCB Base

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Power Supply
External DC Source

IP Rating
Not Rated

Input
DC Power Supply

Features
Easy-to-use, Educational, Compact, Adjustable frequency

Operating Temperature
0C to 70C

Power Source
Battery or external DC supply

Interface
Terminal Block output

Output
High Frequency Sine Wave

Response Time
Instantaneous

Thermal Conductivity
Standard PCB material

Product Type
COLPIT OSCILLATOR

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
9V DC

Supply Voltage
9V DC

Size
85mm (L) x 55mm (W)

Dimension (L*W*H)
85mm x 55mm x 25mm

Function
Colpitt Oscillator used for generating sinusoidal oscillations at high frequencies.

Color
Green and Black (PCB Mount)

Weight
125 grams

Capacity
General laboratory use

Current Rating
60mA (Max)

Thickness
Standard PCB thickness approx. 1.6mm

Frequency
Adjustable, typically 100kHz - 1MHz

Package Includes
Assembled Oscillator Module, User Manual

Tuning Method
Variable Capacitor/Resistor

Signal Type
Analog

Transistor Type
NPN bipolar junction transistor

Mounting Type
PCB Mount

Enclosure
None (Open PCB Design)

Oscillator Type
RF Oscillator (Colpitt Design)

Output Form
Sine Wave (Analog)

Build Quality
Durable, Educational Grade

Power Connection
2 Pin Terminal for DC Input

PCB Material
FR4 Standard

COLPIT OSCILLATOR Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About COLPIT OSCILLATOR

Specification:

COLPIT OSCILLATOR

Objective: To study the Frequency and Wave shape generatedby a Colpitts Oscillator.

Features:

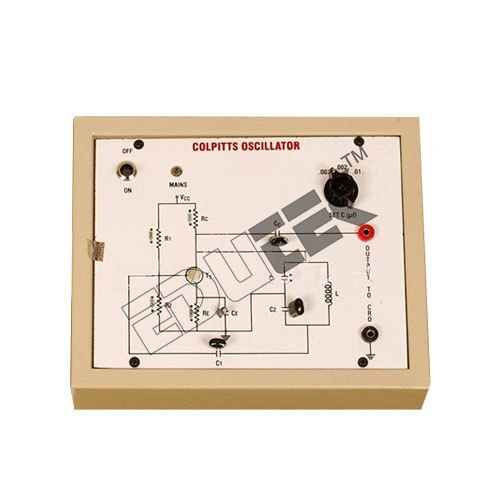

Instrument comprises of 12 V DC Regulated Power Supply,Circuit diagram printed & components mounted on front panel.

High-Quality Educational Instrument

This Colpitt Oscillator module is tailored for engineering electronics education and laboratory experiments. Its rugged FR4 PCB ensures long-lasting use, and its well-labeled design supports hands-on learning in workshops or classroom settings. The included user manual further enhances understanding for both students and educators.

Versatile Frequency Adjustment

The module allows for smooth and precise tuning of oscillation frequencies between 100kHz and 1MHz using its variable capacitor and potentiometer. This flexibility makes it suitable for diverse analog and RF signal generation tasks, giving users direct control over output characteristics.

Simple Integration and Power Supply

Designed for straightforward setup, the oscillator operates from a 9V DC input via a 2-pin terminal block. Its compact, mountable profile ensures hassle-free integration into laboratory systems. The modular build supports both battery and external DC power sources, adapting to various experimental environments.

FAQ's of COLPIT OSCILLATOR:

Q: How do I power the Colpitt Oscillator module?

A: The module is powered by a 9V DC source, which can be supplied using a battery or an external DC adapter through the supplied 2-pin terminal block.

Q: What benefits does the adjustable frequency range offer?

A: The adjustable frequency range (typically 100kHz to 1MHz) allows the oscillator to adapt to different experimental needs, making it ideal for studying analog RF circuits and testing electronic equipment that requires variable frequency inputs.

Q: Where is this oscillator typically used?

A: This assembled Colpitt Oscillator is mainly used in engineering educational laboratories, electronic workshops, and prototyping setups for generating high-frequency analog sine waves.

Q: How is frequency tuning performed on the module?

A: Users can adjust the oscillation frequency using the built-in variable capacitor and resistor (potentiometer), enabling precise frequency control within the specified range.

Q: What is included in the package?

A: Each package contains a fully assembled oscillator module mounted on an FR4 PCB, along with a user manual for quick setup and operation guidance.

Q: Can I integrate this module with other experimental setups?

A: Yes, the module is designed for easy PCB mounting and can be integrated into various laboratory setups or electronic test boards via its terminal block interface.

Q: What makes this Colpitt Oscillator suitable for educational use?

A: Its robust build, straightforward design, detailed user documentation, and adjustable analog output make it ideal for students learning about oscillators, analog signal generation, and RF electronics.
