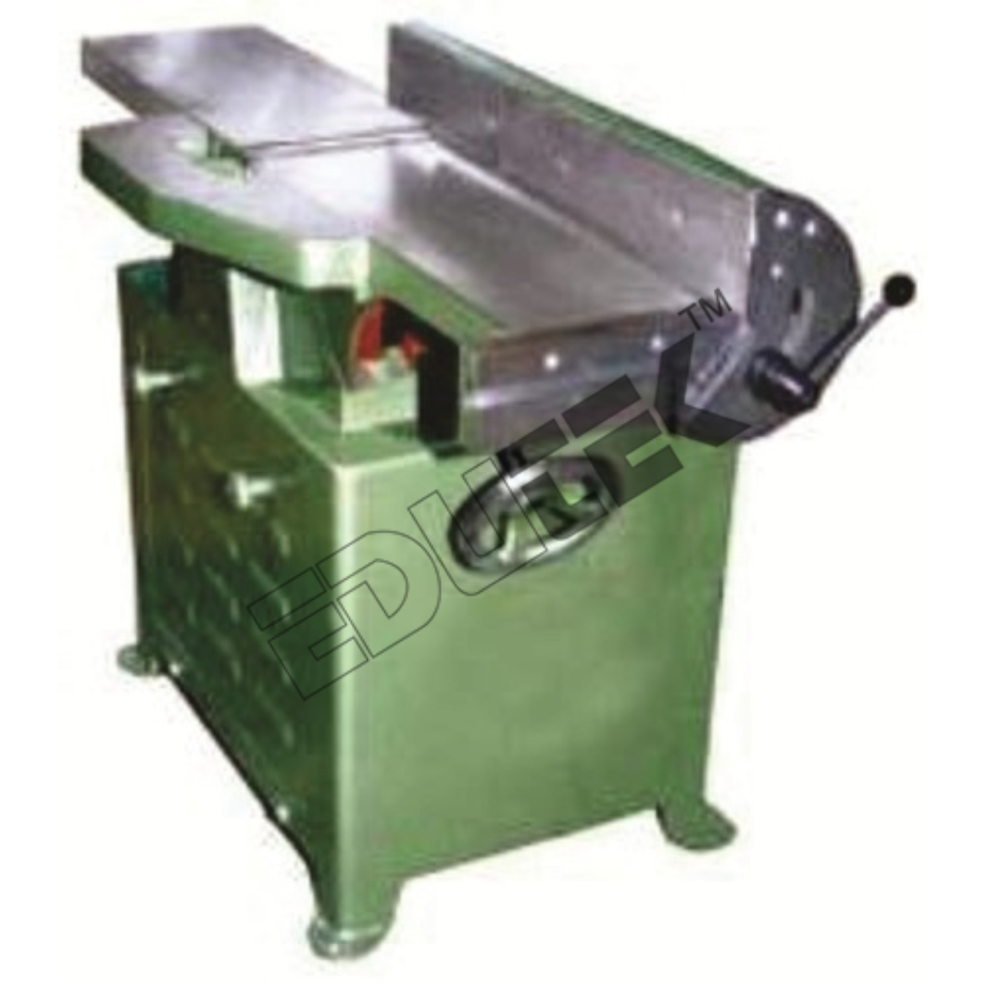

Surface Planer

Get a Price/Quote

MOQ : 1 Piece

Surface Planer Specification

Power Supply
3 Phase, 415V, 50Hz

Accuracy
±0.1 mm

Frequency
50 Hz

Display Type
Analog Scale

Equipment Type
Surface Planer

Measuring Range
0 - 400 mm

Number of Specimens
1 (Single Piece Operation)

Specimen Size
Up to 410 mm (Width)

Resolution
0.1 mm

Operating Voltage
415V

Response Time
Instantaneous

Mounting Type
Floor Mounted

Port Size
Customizable

Test Range
Up to 400 mm thickness

Application
Wood Surface Planing

Max Height
400 mm

Hardness
Standard (Planer Blade)

Temperature
Ambient

Automation Grade
Manual

Interface Type
Manual

Features
Heavy Duty Cast Iron Body, Replaceable Planer Blades

Usage
Industrial Woodworking

Capacity
3 HP

Machine Weight
1500 kg

Test Speed
10000 RPM

Test Width
410 mm

Test Stroke
800 mm

Control Mode
Manual

Table Length
2200 mm

Main Motor Power
3 HP

Table Material
Cast Iron

Cutter Speed
5200 RPM

Number of Blades
3

Color
Green or as per order

Noise Level
<85 dB

Packaging Type
Wooden Box

Safety Features
Emergency Stop Button, Blade Guard

Feed Speed
8 m/min

Cutter Diameter
95 mm

Surface Planer Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Surface Planer

SURFACER PLANER

Voltage : 380V
Phase : 3
Motor : 7.5 HP
blades length : 400/450mm
Blades length cast iron body
Working width : 460mm
Working table length : 2750 (max)
Surfacefence tilting : From 90deg to 45deg
Cutterblock size : 120mm
Knives : 4
Spindle speed : 5000rpm

Precision & Heavy Duty Performance

Ensuring meticulous results, the Surface Planer features a 3 HP motor and a 2200 mm long cast iron table. The combination of manual controls and replaceable planer blades allows users to achieve highly accurate surface finishes, making it an essential choice for industrial woodworking applications requiring consistent, high-volume output.

Reliable Safety & Robust Construction

Built with user safety in mind, the planer includes essential protective features: an emergency stop button and a blade guard. Its heavy-duty cast iron body ensures long-lasting durability and minimizes vibration, offering stable operation even in demanding environments, further supported by a noise level below 85 dB.

Versatile Application & Customization

This surface planer accommodates specimens up to 410 mm in width and 400 mm in thickness, processed with single-piece operation. Customizable port sizes and color options ensure flexibility for various industrial setups, while its reliable three-phase power supply caters to heavy-duty, continuous use.

FAQs of Surface Planer:

Q: How does the manual control mode benefit users during operation?

A: The manual control mode provides operators with direct oversight, enabling precise adjustments during surface planing. This hands-on approach is ideal for intricate woodwork or when handling unique specimen requirements, ensuring optimal surface quality and user safety.

Q: What is the process for replacing planer blades on this machine?

A: To replace the planer blades, first ensure the machine is switched off and disconnected from power. Remove the blade guard and carefully extract the worn blades from the cutter head. Insert the new blades, secure them in place, reinstall the guard, and perform a thorough safety check before restarting operation.

Q: When should routine maintenance be performed on the planer?

A: Routine maintenance, such as blade inspection, lubrication, and checking fasteners, is recommended after every significant operation or at weekly intervals during continuous use. Regular maintenance helps retain precision, prolongs component life, and sustains optimal performance.

Q: Where is this surface planer most effectively used?

A: This machine is best used in industrial woodworking environments, such as furniture manufacturing units, carpentry workshops, and veneer processing facilities, where high-precision, heavy-duty surface planing is essential.

Q: What are the key safety features incorporated into the design?

A: The surface planer is equipped with an emergency stop button and a blade guard. These features minimize the risk of accidental injuries, allowing immediate shutdown in emergencies and shielding the operator from direct blade contact during use.

Q: How does the analog scale display support the operator?

A: The analog scale display delivers instantaneous measurement feedback, allowing users to monitor planing progress and ensure that all surfaces meet the required thickness and accuracy specifications, enhancing operational control.

Q: What benefits does the heavy-duty cast iron construction offer?

A: The robust cast iron body reduces operational vibrations and increases machine stability, ensuring precise and smooth planing results, while extending the service life of the equipment even under continuous industrial use.
