DIMENSIONING CIRCULAR SAW

Get a Price/Quote

MOQ : 1 Piece

DIMENSIONING CIRCULAR SAW Specification

Application
Dimensioning of wood, plywood, MDF, particle board, and similar materials

Automation Grade
Semi-automatic

Display Type
Analog / Ruler Scale

Specimen Size
Max. panel size: 3200 x 3200 mm

Features
Heavy-duty frame, stable operation, precise angle adjustment, large cutting table

Port Size
Standard (Consult manufacturer)

Interface Type
None (manual control)

Power Supply
380V / 50Hz

Measuring Range
3200 mm (cross cut)

Temperature
5C to 40C

Resolution
0.1 mm

Test Range
Thickness: up to 100 mm

Response Time
Instantaneous (manual operation)

Humidity
Up to 80% RH (non-condensing)

Mounting Type
Floor Mounted

Operating Voltage
380V

Max Height
Panel thickness up to 100 mm

Frequency
50 Hz

Equipment Type
Industrial Panel Saw

Accuracy
0.3 mm

Usage
Industrial woodworking and panel cutting

Capacity
Heavy Duty, up to 100 mm thick panels

Machine Weight
1020 kg

Test Speed
4800 RPM

Test Width
3200 mm

Control Mode
Manual

Noise Level
85 dB(A)

Saw Blade Tilt Angle
0-45 Degrees

Sliding Table Length
3200 mm

Main Motor Power
5.5 kW

Saw Blade Diameter
350 mm

Colour
Standard Industrial Grey

Dust Extraction Port
Yes, 120 mm diameter

Scoring Motor Power
0.75 kW

Safety Features
Emergency stop, blade guard, riving knife

DIMENSIONING CIRCULAR SAW Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About DIMENSIONING CIRCULAR SAW

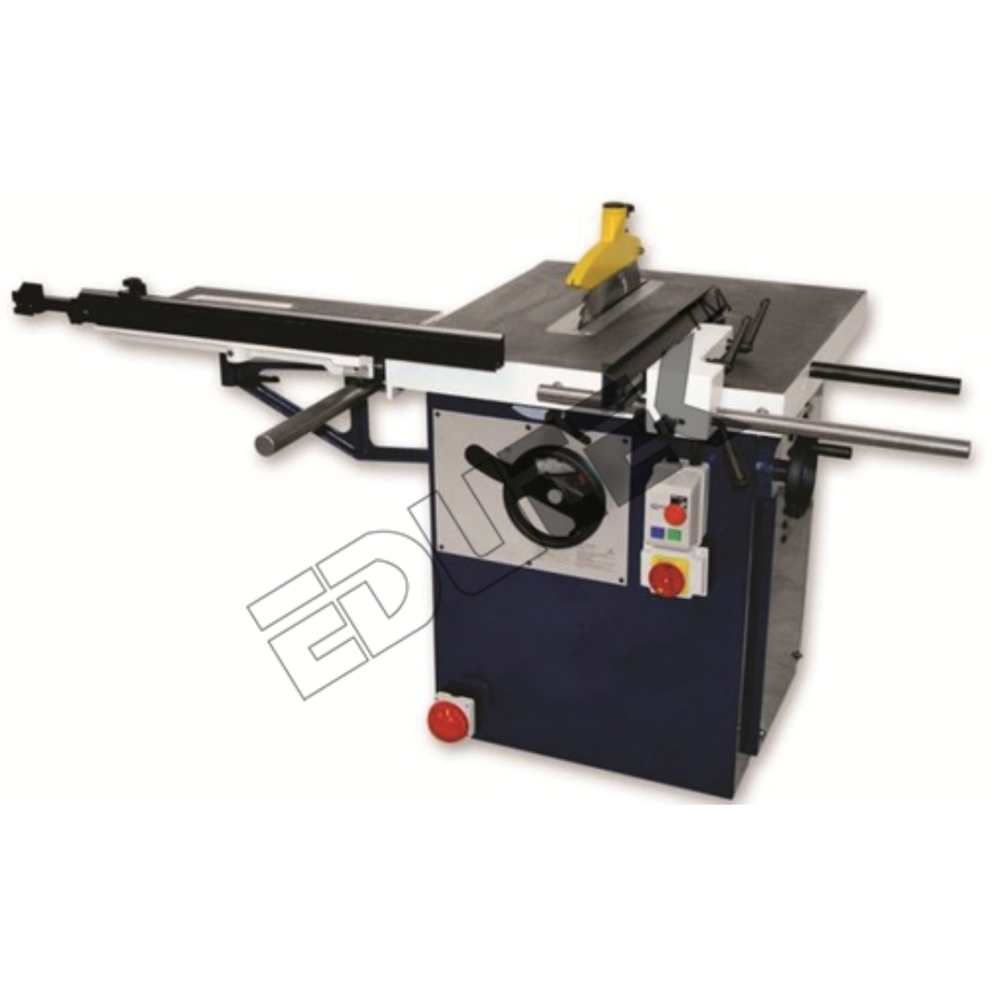

DIMENSIONING CIRCULAR SAW

Voltage : 340 Volts
Phase : 3
Motor : 5HP
Width : 1470mm
Speed : 2850 rpm
Width : 14.70 mm
Speed : 700 mm
Slidingtable return : 3200 mm
Maximumblade diameter : 315mm d=30 mm
Scoringblade diameter : 120 mm d=20 mm
Mainmotor power : 7 hp
Scoringmotor power : 1.0 hp
Rippingcapacity : 1270 mm
Slidingtable return : 3200 mm
Mainblade speed : 4000 rpm
Scoringblade speed : 8500 rpm
Bladetilt : 0 - 45 degree
Maxcutting height : @ 90 100 mm(315 mm blade)
Maxcutting height : @ 45 70 mm(315 mm blade)
Diameterof base exhaust : 120 mm
Diameterof saw guard exhaust : 60 mm on riving knife
Overheadguard opt. Extra : 80 mm
Machineweight : 800kg
Overheadguard
Diameterof guard exhaust tba

Efficient Panel Dimensioning

With its 3200 mm sliding table and large cutting capacity, this panel saw streamlines production for industrial woodworking shops. Its robust design ensures long-term, consistent performance, handling up to 100 mm thick panels effortlessly. The wide test width and cross cut capabilities help ensure efficiency and precise dimensioning for various materials.

Precision and Stability Assured

The machines heavy-duty frame, adjustable blade tilt (045 degrees), analog ruler scale, and high-quality components ensure accurate cutting with a resolution of 0.1 mm. Its ideally suited for jobs requiring consistently reliable and precise results, supported by secure clamping and a stable cutting platform.

Commitment to Operator Safety

Safety is paramount, with a blade guard, riving knife, and emergency stop included as standard features. The low operational noise level (85 dB(A)) and dust extraction port (120 mm) foster a healthier workplace. These measures, combined with manual control, help minimize accidents and enhance user confidence.

FAQs of DIMENSIONING CIRCULAR SAW:

Q: How do I operate the DIMENSIONING CIRCULAR SAW for cutting large panels?

A: The saw operates using a sliding table of 3200 mm, allowing you to position and move panels up to 3200 x 3200 mm. After setting your required angle and measurements using the manual ruler scale, securely clamp your panel, adjust the blade tilt if necessary (between 045), and activate the main motor. Manual operation ensures precise, controlled cuts for each pass.

Q: What materials can this panel saw handle and what is its cutting capacity?

A: This industrial panel saw is designed for wood, plywood, MDF, particle board, and similar materials. It can cut panels up to 100 mm thick and a maximum dimension of 3200 x 3200 mm, making it ideal for heavy-duty dimensioning tasks in woodworking and furniture industries.

Q: Where should the machine be installed and what are the power requirements?

A: This equipment must be installed indoors on a level factory floor, ensuring the environment maintains temperatures from 5C to 40C and humidity up to 80% RH (non-condensing). It requires a 380V / 50Hz power supply and should be positioned near appropriate dust extraction and ventilation systems for optimal performance and safety.

Q: What safety features are included to protect the operator during use?

A: The machine incorporates an emergency stop button, a robust blade guard, and a riving knife to reduce the risk of kickback and accidental contact. In addition, the included dust extraction system and reduced noise levels help create a safer, more comfortable working environment.

Q: How do I maintain the saw and ensure long-term performance?

A: Routine maintenance includes regularly cleaning the cutting area and sliding table, checking the blade and riving knife for wear or damage, ensuring the dust extraction port remains unblocked, and lubricating moving parts as per manufacturer instructions. Inspect the emergency stop functionality and ensure all guards are operational before each use.

Q: What are the main benefits of using this circular saw in an industrial setting?

A: Users benefit from rapid, precise dimensioning of large panels, heavy-duty construction for stability, and enhanced safety features. Manual operation allows for immediate adjustments and real-time response, while the dust extraction system and low noise levels contribute to a cleaner, more ergonomic workspace.
