Band Saw Machine

Get a Price/Quote

MOQ : 1 Piece

Band Saw Machine Specification

Automation Grade
Semi-Automatic

Specimen Size
225 mm Width x 300 mm Stroke

Equipment Type
Horizontal Band Saw Machine

Max Height
Up to 425 mm (Vertical Clearance)

Mounting Type
Floor Mounted

Accuracy
0.5 mm

Humidity
Up to 85% (Non-condensing)

Hardness
Complies with IS Standards for Structure

Temperature
0C to 50C Operating Range

Test Range
Up to 225 mm work width

Measuring Range
0 225 mm

Port Size
Standard 1/2 BSP

Display Type
Mechanical Scale / Visual Indicator

Power Supply
415 V, 3 Phase, 50 Hz

Response Time
Instantaneous (Manual Control)

Frequency
50 Hz

Resolution
0.1 mm

Number of Specimens
Single Specimen Per Operation

Interface Type
Manual Controls, Emergency Stop

Operating Voltage
415 V AC

Features
Heavy Duty Body, Rigid Construction, Replaceable Saw Blade, Adjustable Vice, Efficient Coolant System

Application
Metal Cutting, Fabrication Workshops, Engineering Applications

Usage
Cutting Ferrous & Non-Ferrous Metals

Capacity
200 mm Cutting Capacity Round / 225 mm Square

Machine Weight
Approx. 350 kg

Test Speed
Variable (Controlled by Gear System)

Test Width
225 mm

Test Stroke
300 mm

Control Mode
Manual / Semi-Automatic

Cutting Angle Range
0 to 45

Noise Level
Below 80 dB(A)

Clamping Type
Manual Vice

Blade Drive System
Worm Gearbox with V-belt

Finish
Powder Coated / Painted

Coolant Tank Capacity
40 Litres

Safety Features
Overload Protection, Blade Guard, Emergency Stop Switch

Material of Construction
Cast Iron / Mild Steel

Motor Power
2 HP (1.5 kW)

Saw Blade Size
3500 x 27 x 0.9 mm

Dimensions (LxWxH)
1650 x 850 x 1300 mm

Saw Wheel Diameter
350 mm

Band Saw Machine Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Band Saw Machine

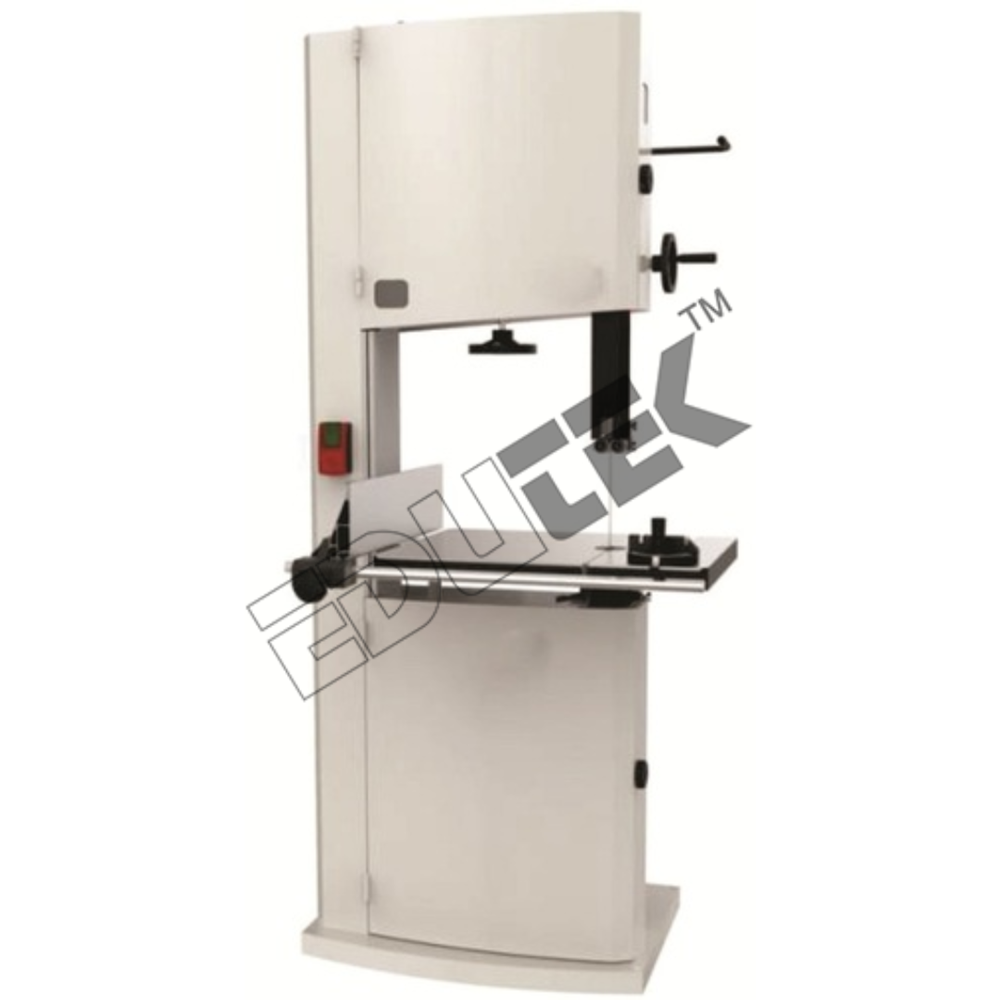

BAND SAW - VERTICES, 5HP MOTOR

Phase : 3
Fitted with blade : 10mm
Motor : 5 HP
Castiron body
Bladelength : 5180-5040mm
Bladewidth : 10mm - 25mm
Tablesize : 1030x 710mm
Wheeldiameter : 700mm
Wheelspeed : 736rpm (max cutting)
Height : 460mm (max cutting)
Width : 680mm

Precision Metal Cutting Solution

Designed for demanding workshops, this band saw machine offers a variable cutting width (up to 225 mm) and precise angle adjustments from 0 to 45, making it suitable for diverse engineering and fabrication needs. Its rigid construction and advanced drive system ensure stable, accurate cuts with minimal vibration.

Enhanced Safety and Control

User safety is prioritized with built-in overload protection, blade guard, and an emergency stop switch. Easy-to-use manual or semi-automatic controls, combined with a mounted mechanical scale for accurate measurements (0.5 mm), make operations reliable and secure.

Durability and Efficiency

Manufactured using high-quality cast iron or mild steel and finished with powder coating or paint, the equipment resists wear under intensive use. The integrated 40-litre coolant tank and replaceable blade system support extended, efficient machine life with low maintenance requirements.

FAQs of Band Saw Machine:

Q: How do I operate the band saw machine for metal cutting?

A: The band saw supports both manual and semi-automatic operations. Secure your metal specimen using the manual vice, adjust the cutting angle (045) and speed, then start the machine. Monitor the cut using the visual indicator and halt operation using the emergency stop if needed.

Q: What types of metals can this band saw machine cut?

A: This machine is designed to efficiently cut both ferrous and non-ferrous metals. The robust construction and adjustable vice ensure stable and accurate cuts for a variety of workpieces up to 225 mm wide.

Q: When is it necessary to replace the saw blade?

A: Blade replacement is required when you notice decreased cutting efficiency, blade dullness, or increased noise levels during operation. The machine supports quick and easy blade changes, ensuring minimal downtime.

Q: Where should the coolant tank be refilled and how often?

A: The 40-litre coolant tank, integrated within the machine, should be refilled with suitable coolant as neededtypically after extensive cutting sessions or when coolant levels run low. Regular checking ensures optimal blade cooling and prolongs blade life.

Q: What benefits does the overload protection offer during use?

A: Overload protection safeguards the motor and drive system from excessive current or load, preventing potential damage and increasing the machines operational lifespan. It provides a safer working environment by automatically halting operation in dangerous situations.

Q: How accurate is this band saw machine, and how is measurement achieved?

A: It delivers a measuring accuracy of 0.5 mm, facilitated by a mechanical scale or visual indicator. This ensures each cut meets precise engineering requirements for fabrication and metalworking tasks.
