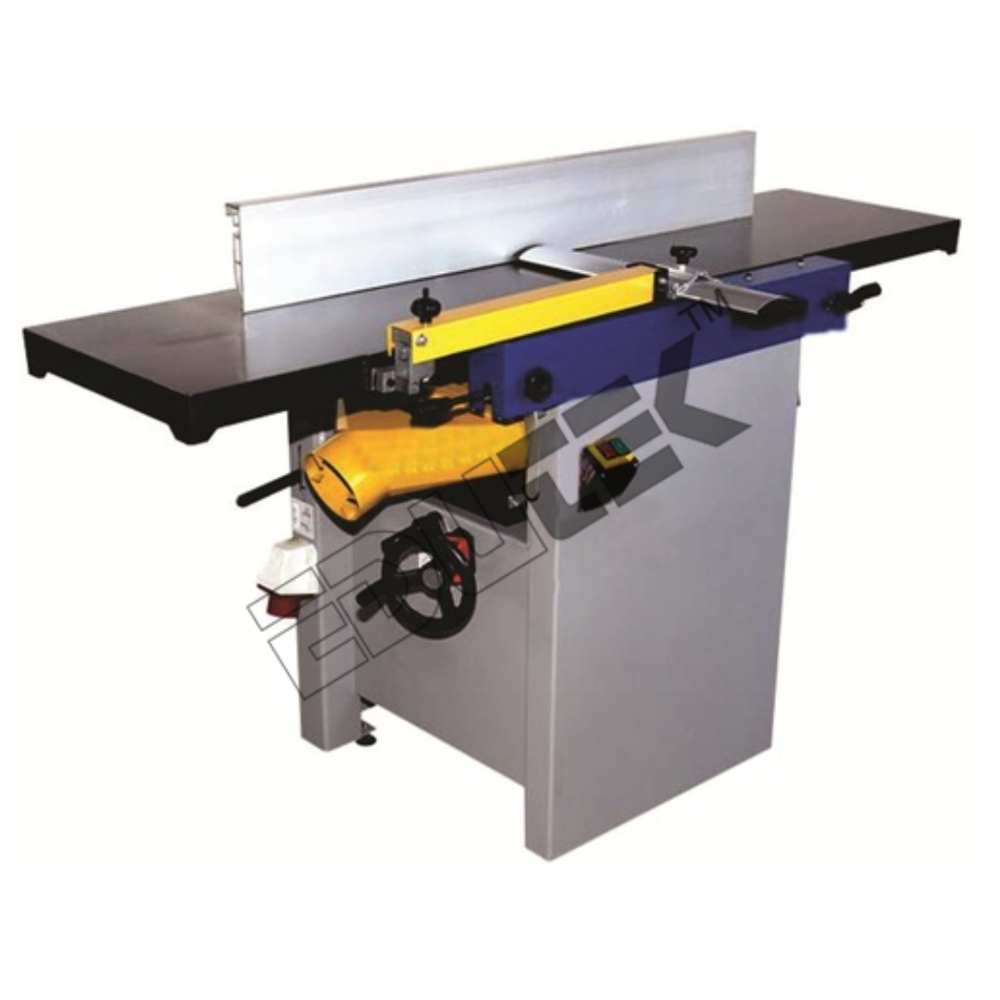

COMBINED SURFACER AND THICKNERS

Get a Price/Quote

MOQ : 1 Piece

COMBINED SURFACER AND THICKNERS Specification

Interface Type
Push button control panel

Max Height
190 mm

Gas Pressure
0.5 0.8 MPa

Test Range
Surface planing & thicknessing up to 150 mm

Port Size
1/2 inch

Operating Voltage
415 V

Mounting Type
Floor Mounted

Measuring Range
2 150 mm thickness setting

Resolution
0.1 mm

Response Time
<2 seconds

Display Type
Digital LCD

Number of Specimens
1 (per operation)

Frequency
50/60 Hz

Features
Heavy-duty frame, easy changeover, integrated dust extraction port, safety guard, precise feed adjustment

Humidity
20% - 80% RH (operating)

Accuracy
0.1 mm thickness tolerance

Automation Grade
Semi-automatic

Power Supply
3 Phase, 415V, 50 Hz

Specimen Size
Max. 330 mm (W) 190 mm (H)

Application
Woodworking (surfacing, thicknessing, finishing of timber and board material)

Equipment Type
Combined Surface & Thickness Planer

Hardness
Body made of cast iron (min. 160 HB)

Temperature
10C 40C (operating)

Usage
Professional woodworking, commercial joineries

Capacity
6 m/h material throughput

Machine Weight
750 kg

Test Speed
0 18 m/min

Test Width
330 mm

Test Stroke
Max. 190 mm

Control Mode
Digital control with LCD display

Safety Features
Emergency stop, interlock switches, anti-kickback fingers

No-Load Speed
5000 rpm

Number of Knives
3 high-speed steel knives

Colour
Industrial grey and blue

Thickness Table Travel
Motorized, 0.1 mm step setting

Feed Speed Adjustment
Variable, stepless drive

Dust Collector Port Diameter
100 mm

Motor Power
3.0 kW main cutter motor

Cutter Block Diameter
95 mm

Feed Roller Type
Double rubber rollers

Noise Level
85 dB

COMBINED SURFACER AND THICKNERS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Central America, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About COMBINED SURFACER AND THICKNERS

COMBINED SURFACER AND THICKNERS

Voltage : 380V
Phase : 3
Motor : 7.5 HP
bladeslength : 400/450mm
Bladeslength cast iron body
Workingwidth : 460mm
Workingtable length : 2750 (max)
Surfacefence tilting : From 90deg to 45deg
Cutterblock size : 120mm
Knives : 4
Spindlespeed : 5000rpm

Advanced Surfacing & Thicknessing Precision

Engineered for accuracy, this machine delivers 0.1 mm thickness tolerance with a digital LCD display for easy monitoring. Motorized table travel, variable speed adjustment, and a maximum workpiece size of 330190 mm allow seamless operation on a wide variety of timber and board materials. The heavy-duty cast iron body ensures stability and longevity, ideal for rigorous, high-throughput environments.

Safety and Efficient Workflows

Multiple protective featuresincluding emergency stops, interlock switches, and anti-kickback fingersprioritize operator safety. The double rubber rollers and integrated dust extraction port support smooth, clean material handling. With swift changeover and a user-friendly control panel, productivity is maximized without compromising safety standards.

FAQs of COMBINED SURFACER AND THICKNERS:

Q: How does the feed speed adjustment work on this combined surfacer and thicknesser?

A: Feed speed can be adjusted steplessly from 0 to 18 m/min, allowing operators to tailor the pace according to the materials requirements and desired finish quality. Digital LCD controls make it easy to monitor and select precise settings for each operation.

Q: What types of materials can be processed with this equipment?

A: This machine is suitable for surfacing, thicknessing, and finishing both timber and engineered board materials, supporting a maximum workpiece width of 330 mm and thickness up to 150 mm.

Q: Where is this planer typically used?

A: Its commonly found in professional woodworking shops, commercial joineries, and export-oriented manufacturing units, especially where precise, high-throughput timber processing is required.

Q: What safety features are integrated into this machine?

A: Operator safety is ensured through features such as an emergency stop button, interlock switches, anti-kickback fingers, and a safety guard. These measures help minimize operational hazards during intensive use.

Q: When is it necessary to use the dust collector port?

A: The integrated 100 mm dust collector port should always be used during operation to efficiently remove wood chips and dust, improving air quality, machine performance, and workplace safety.

Q: How do I change the thickness setting with high accuracy?

A: The motorized thickness table allows fine adjustments in 0.1 mm increments. Thanks to the digital control panel and LCD screen, users can set and monitor precise thickness values, achieving 0.1 mm tolerance every cycle.

Q: What are the main benefits of using this combined surfacer and thicknesser?

A: Operators gain from high precision, a user-friendly digital interface, rapid changeover between functions, enhanced safety, and reduced cleanupmaking woodworking more efficient and productive.
