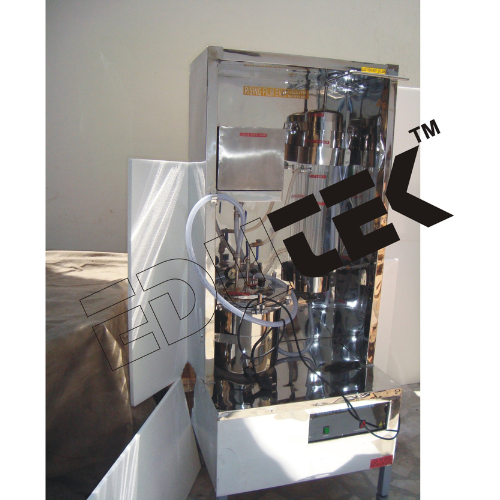

Rising Film Evaporator

Price 2000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Rising Film Evaporator Specification

Temperature Range
Ambient to 150 C Celsius (oC)

Accuracy
2% %

Warranty
1 year

Feature
High heat transfer coefficient, continuous operation

Application
Chemical Engineering Lab Equipments

Capacity
500 Litres to 10000 Litres per hour Ltr

Measurement Range
500 Litres to 10000 Litres per hour

Core Components
Heat Exchanger, Separator, Condenser, Tube bundle

Automation Grade
Semi-Automatic

Power Source
Electric/Steam

Usage
Evaporation and concentration of liquids

Material
Mild steel

Product Type
Rising Film Evaporator

Model No

Voltage
230/440 V Volt (v)

Frequency
50/60 Hz Hertz (HZ)

Equipment Materials
Stainless Steel (SS304/SS316)

Type
Rising Film Evaporator

Display Type
Analog

Dimension (L*W*H)
3800 mm x 1200 mm x 2200 mm Millimeter (mm)

Weight
Approx 1200 kg Kilograms (kg)

Safety System
Pressure relief valves & temperature sensors

Installation
Skid Mounted for easy installation

Separation Efficiency
98% for solids

Condensate Quality
Pure distilled water

Feed Type
Liquid

Design Pressure
2 to 6 bar

Operation
Vertical tube rising film, single effect

Control System
PLC Controlled, optional manual

Operation Pressure
Atmospheric/Positive

Tube Material
SS304/SS316

Application
Pharmaceuticals, food processing, chemical industries

Material Finish
Mirror or Matt SS finish available

Steam Consumption
0.9 to 1.2 kg steam per kg evaporation

Cleaning
CIP (Clean-In-Place) compatible

Rising Film Evaporator Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Delivery Time
2 Week

Sample Available
Yes

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Asia, Eastern Europe, Western Europe, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Rising Film Evaporator

Rising Film Evaporator

We Offer Such Type Of Rising Film Evaporators Which Used In A Diverse Variety Of Applications. We Ensure Designs Which Are Capable Of Satisfying Our Customers.Rising Film Evaporator Is Best For Proving Excellent Performance In Terms Of Diluted Feed Streams. They Possess With Very Simple Construction Designs But Ensure Cost Effective Solutions To Their Users. They Are Equipped With Heating Media On Their Shell Side And The Processing Of Liquid Takes Place Inside The Tubes. The Feed Liquid Comes Into The Evaporator Through The Bottom Head And Move Into An Upward Position Through The Tubes. On The Shell Side, Heating Media Are Present To Act As A Heating Source. They Have Very Simple Construction But Are Highly Efficient In Giving A Very Exceptional Performance To Its Users.

Efficient and Reliable Liquid Processing

This rising film evaporator delivers continuous, high-performance evaporation and concentration with a remarkable separation efficiency of 98% for solids. Designed to handle a wide measurement and temperature range, its robust construction and advanced heat exchanger system make it ideal for stringent industrial environments. The use of SS304/SS316 ensures durability and suitability for sensitive applications.

Streamlined Installation and User-Friendly Operation

Thanks to its skid-mounted configuration, installation is swift and uncomplicated. The vertical tube rising film design supports single effect operation, and users can select between PLC-controlled or manual modes depending on operational requirements. Safety and ease of use are paramount, with integrated pressure relief valves, temperature sensors, and CIP compatibility for simplified cleaning and maintenance.

FAQs of Rising Film Evaporator:

Q: How is the Rising Film Evaporator installed and what makes it easy to set up?

A: The evaporator comes skid-mounted, allowing for quick and straightforward installation with minimal on-site assembly. All core components, including the heat exchanger, separator, and condenser, are securely mounted, reducing installation time and complexity.

Q: What types of liquids can be processed using this evaporator?

A: The system is designed to handle a wide variety of liquid feeds for evaporation and concentration. It is suitable for applications involving pharmaceuticals, food processing, and chemicals, ensuring versatility in industrial use.

Q: When should the clean-in-place (CIP) process be performed and how does it work?

A: The CIP process should be conducted as part of routine maintenance or whenever the system processes particularly viscous or fouling liquids. The evaporator is fully compatible with CIP systems, enabling thorough cleaning without the need for disassembly.

Q: Where can this evaporator be ideally deployed?

A: Its robust stainless steel construction and high efficiency make it ideal for deployment in pharmaceutical plants, food and beverage processing facilities, and chemical manufacturing units that require precise liquid concentration and evaporation.

Q: What are the key benefits of using a rising film evaporator with this design?

A: Benefits include high separation efficiency (98% for solids), production of pure distilled water as condensate, low steam consumption (0.91.2 kg per kg evaporation), user-friendly automation (PLC or manual), and low maintenance due to CIP compatibility and durable construction.

Q: How is operation safety ensured?

A: Safety is prioritized through the use of pressure relief valves, accurate temperature sensors, and robust control systems. The design accommodates operation pressures from atmospheric up to 6 bar, providing reliable and safe evaporation under multiple conditions.
