Send InquiryRESISTANCE IN SERIES & PARALLEL APPARATUS WITH BAKELITE PANEL & ROUND METERS
Price 1300.0 INR/ Piece
MOQ : 1 Piece
RESISTANCE IN SERIES & PARALLEL APPARATUS WITH BAKELITE PANEL & ROUND METERS Specification
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Power Supply
- 230V AC +/- 10%, 50 Hz.
- Features
- Light weight shock proof ABS Plastic cabinet.
- Product Type
- RESISTANCE IN SERIES & PARALLEL APPARATUS WITH BAKELITE PANEL & ROUND METERS
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Function
- SINGLE RANGE MOVING IRON AC/DC PORTABLEVOLTMETER.
- Warranty
- 1 Year
RESISTANCE IN SERIES & PARALLEL APPARATUS WITH BAKELITE PANEL & ROUND METERS Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA), Cheque
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About RESISTANCE IN SERIES & PARALLEL APPARATUS WITH BAKELITE PANEL & ROUND METERS
Specification:

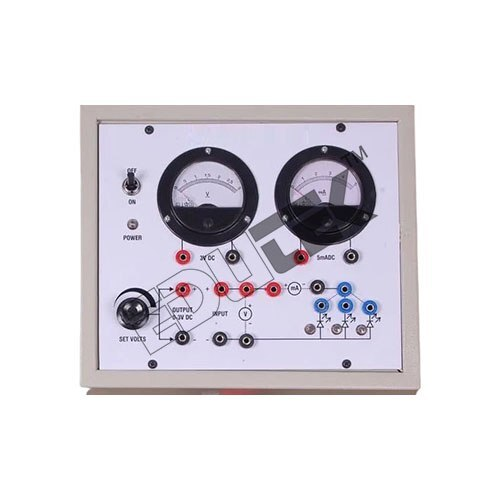

RESISTANCE IN SERIES & PARALLEL APPARATUS WITH BAKELITE PANEL & ROUND METERS
OBJECTIVE: To study the connections of resistances connecting in series & parallel.
Apparatus comprises of Fixed DC Regulated power supply 9V DC with two Analog Moving Coil Meters (Voltmeter 0-10VDC & Ammeter 250 mA) meters
Accuracy: 1.5%
Grade: A.
Resistance: Wire wound type, 5 Watts Connected Internally.
Power Requirements: 230V AC +/- 10%, 50 Hz.
Cabinet Dimensions: 280mm x 205mm x 85mm.
ISI marked fine quality Bakelite Front Panel.
Light weight shock proof ABS Plastic cabinet.
Included Standard Accessories Patch Cords & Instructions Manual.
Robust and User-Friendly Design
Crafted with a sturdy Bakelite panel and encased in a lightweight ABS plastic cabinet, this apparatus ensures both durability and portability. Its shockproof construction makes it ideal for busy engineering laboratories and frequent handling by students.
Accurate Measurement Capabilities
With a single range moving iron AC/DC voltmeter and clear round meters, the apparatus delivers precise voltage measurements. It operates efficiently on a standard 230V AC +/- 10%, 50 Hz supply, offering dependable performance for a wide range of experiments in electronics engineering.
FAQ's of RESISTANCE IN SERIES & PARALLEL APPARATUS WITH BAKELITE PANEL & ROUND METERS:
Q: How do you use the Resistance in Series & Parallel Apparatus in an engineering lab?
A: To use the apparatus, connect it to a 230V AC power source and set up your desired circuit configuration (series or parallel) using the terminal connections. Observe and record the voltage or current readings from the round meter to analyze resistance behavior.Q: What are the main functions of the built-in voltmeter in this apparatus?
A: The apparatus features a single range moving iron AC/DC portable voltmeter, which accurately measures voltage across electrical components in both series and parallel configurations.Q: When should this apparatus be used in electronics experiments?
A: It is best used during laboratory sessions focused on understanding and verifying the properties of resistors connected in series and parallel configurations, making it suitable for both beginner and advanced electronics courses.Q: Where is the Resistance in Series & Parallel Apparatus most commonly utilized?
A: This instrument is ideally used in educational institutions, particularly within engineering electronics departments, training centers, and research laboratories that require practical demonstrations of resistance principles.Q: What is the process for obtaining accurate measurements using this instrument?
A: Ensure the apparatus is connected to the correct power supply, set up your circuit properly, then use the round meter to read voltages. Always adhere to operational guidelines for safe and precise measurement.Q: What are the benefits of choosing this apparatus over similar products?
A: Its shockproof, lightweight cabinet, clear round meters, and reliable moving iron voltmeter enhance safety, portability, and accuracy, making it an excellent choice for educational and laboratory environments.
