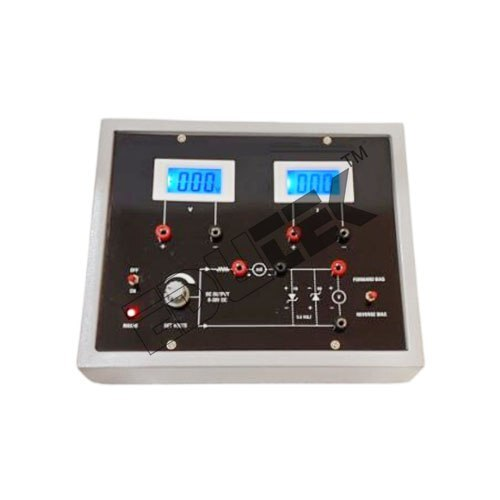

LCR IMPEDANCE APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

LCR IMPEDANCE APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS Specification

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Input
Standard test points for component connection

Features
Digital measurement, aluminum panel, robust build, fast response, clear display

Power Source
AC mains

Response Time
Immediate digital readout

Components
Integrated digital panel meters, aluminum panel, test terminals

Output
Digital panel meter readings for L, C, and R values

Power Supply
230 V AC, 50 Hz single phase

IP Rating
IP20

Interface
Front test terminals, digital display

Display Type
Digital panel meters

Operating Temperature
0C to 50C

Resolution
High precision (depends on internal meter, typically down to 0.01 , 1 pF, 1 H)

Thermal Conductivity
Aluminum panel ensures efficient heat dissipation

Product Type
LCR IMPEDANCE APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
230 V AC

Supply Voltage
230 V AC

Size
Medium laboratory instrument

Dimension (L*W*H)
300 x 220 x 110 mm

Function
Measures inductance (L), capacitance (C), and resistance (R) with impedance analysis.

Color
Gray metallic (Aluminum panel)

Weight
Approx. 3.5 kg

Current Rating
Up to 100 mA (max)

Capacity
Suitable for discrete component measurement

Thickness
Aluminum panel approx. 3 mm

Frequency
50 Hz

LCR IMPEDANCE APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About LCR IMPEDANCE APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS

Specification:

LCR IMPEDANCE APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS

Features:

Instrument comprises of 0V to 15V Step down transformer & output available on sockets.

Two Resistance R1=1K, R2=2K

Two Capacitors C1=1Uf, C2=3.3Uf and One Inductance connected inside & connections bought out on sockets.

Two meters to measure AC voltage & current are mounted on the front panel with connections brought out on sockets/ terminals.

Five single point & two inter connectable patch cords for connections

High Precision and Wide Measurement Range

The apparatus accurately measures impedance, resistance, capacitance, and inductance across a broad spectrum, ensuring reliability for various electronics components. Measurement ranges are: Impedance from 10 to 999 k, Inductance from 1 H to 999 mH, Capacitance from 1 pF to 999 F, and Resistance from 0.01 to 999 k. The resolution allows detection of minute values, supporting advanced laboratory experiments and professional engineering tasks.

Durable Build and Efficient Design

Constructed with a brushed aluminum panel, the instrument provides robust protection and efficient thermal management. The aluminum panel is approximately 3 mm thick and finished in metallic gray, supporting durability and facilitating easy cleaning. Its compact, bench-top design (300 x 220 x 110 mm) makes it suitable for standard laboratory setups, while the IP20 rating ensures protection in controlled indoor environments.

User-Friendly Operation

This apparatus features a straightforward interface with standard 4 mm banana socket test terminals and crystal-clear digital displays. Factory calibration guarantees measurement accuracy, and manual calibration is available for fine adjustments. Immediate digital readouts simplify data interpretation, making it well-suited for both routine and advanced measurement tasks in laboratory settings.

FAQs of LCR IMPEDANCE APPARATUS WITH ALUMINUM PANEL & DIGITAL PANEL METERS:

Q: How do you connect components to the LCR Impedance Apparatus?

A: Components are connected via the standard 4 mm banana socket test terminals located on the front panel. Simply insert the leads of the component into these terminals to begin measurement.

Q: What are the main benefits of using this apparatus in engineering laboratories?

A: The apparatus provides high-precision digital measurements for inductance, capacitance, and resistance, enabling accurate analysis of discrete components. Its aluminum panel not only ensures durability but also contributes to efficient heat dissipation for extended laboratory use.

Q: When is manual calibration necessary for this instrument?

A: Manual calibration may be performed if the measured values appear irregular or if greater measurement accuracy is required beyond factory calibration, such as after prolonged usage or component replacement.

Q: Where should the LCR Impedance Apparatus be used?

A: This instrument is intended exclusively for indoor use in laboratory environments. It meets IEC safety standards and is suitable for benchtop installation in engineering electronics labs, educational institutions, or industrial testing facilities.

Q: What is the process for reading L, C, and R values?

A: After connecting the test component to the terminals and powering the unit, digital panel meters immediately display the measured values of inductance, capacitance, and resistance. No additional setup is needed for direct readouts.

Q: How is minimal maintenance achieved with this device?

A: Maintenance is simpleregularly wipe the brushed aluminum panel clean with a soft cloth to remove dust. No complex servicing is required, owing to robust construction and reliable design.

Q: Who is the ideal user for this apparatus?

A: This apparatus is best suited for engineers, technicians, researchers, and students involved in electronics testing and development, including exporters, manufacturers, and suppliers seeking reliable discrete component measurement solutions in India.
