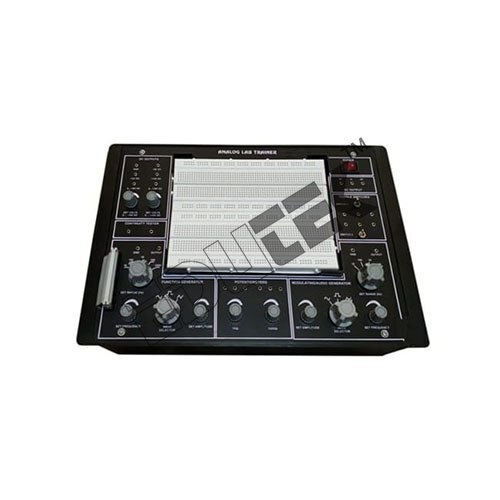

ANALOG LAB TRAINER (WITH BREAD BOARD)

Name: ANALOG LAB TRAINER (WITH BREAD BOARD)
Brand: EDUTEK INSTRUMENTATION
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ANALOG LAB TRAINER (WITH BREAD BOARD) Specification

Power Supply
230V 10% AC, 50 Hz

Power Source
Mains powered, in-built transformer

Interface
Breadboard and banana sockets for test leads

Input
Via test terminals and breadboard connections

Features
Breadboard area for circuit building, onboard regulated DC supplies, function generator, protected output terminals, rugged enclosure

Output
Test point terminals; measurement via onboard meters or external meter

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Response Time
Instantaneous on analog meters

Display Type
Analog voltmeters and ammeters

Components
Includes function generator, variable DC supply, breadboard area, patch chords, meters

IP Rating
Not rated for ingress protection

Operating Temperature
0C to 50C

Resolution
Analog meters 0.1V/0.01A

Product Type
ANALOG LAB TRAINER (WITH BREAD BOARD)

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
220V AC

Supply Voltage
Dual supply 12V DC, 5V DC regulated

Size
Standard desktop instrument size

Dimension (L*W*H)
About 420mm x 275mm x 110mm

Function
Designed for experiments in basic analog electronics such as amplifier, oscillators, filters, and general circuit prototyping

Color
Grey and Blue

Weight
Approx. 3 kg

Capacity
Suitable for multiple student experiments simultaneously

Current Rating
Up to 1A for regulated supply outputs

Thickness
Chassis approximately 1.5 mm

Frequency
Function generator up to 1 MHz

Function Generator Output
Sine, Square, Triangle waveforms

Patch Cords
Supplied with high-quality flexible patch cords

Function Generator Amplitude
Up to 10V p-p adjustable

Protection
Overload and short-circuit protected

Breadboard Size
Approx. 175mm x 65mm, 840 tie-points

Fuses
Fused power input for overload protection

Chassis
Metal with powder-coated finish for durability

Output Terminals
Multiple color-coded 4mm banana terminals

Accessories Included
User manual, patch cords, mains cable

ANALOG LAB TRAINER (WITH BREAD BOARD) Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About ANALOG LAB TRAINER (WITH BREAD BOARD)

Specification:

ANALOG LAB TRAINER (WITH BREAD BOARD)

FEATURES:

Self-contained and easy to operate Functional blocks indicated on board mimic On board DC and AC Power Supplies On board Sine/Square/TTL Generator On board 8 bit Data switches and 8 bit LED display On board Logic Probe, Speaker, and Potentiometers

Integrated Experiment Platform

The Analog Lab Trainer combines a large, quality breadboard with essential analog electronics tools-function generator, variable DC power supply, and analog measurement instruments. This setup simplifies the process of assembling, testing, and demonstrating diverse analog circuits in a single, durable unit, perfect for educational settings.

Enhanced Protection and Durability

Designed with user safety in mind, the trainer features fused power input for overload protection and short-circuit-safe output terminals. Its rugged, powder-coated metal chassis and high-quality internal components ensure long-term reliability under frequent use by students and instructors.

FAQ's of ANALOG LAB TRAINER (WITH BREAD BOARD):

Q: How is the Analog Lab Trainer typically used in an educational environment?

A: The trainer is primarily employed in engineering electronics laboratories for teaching and hands-on learning. Students and instructors use it to build, analyze, and test a variety of analog circuits, including amplifiers, oscillators, and filters, using the built-in breadboard and function generator.

Q: What types of experiments can be conducted with this Analog Lab Trainer?

A: This trainer supports a wide range of analog electronics experiments, notably in amplifier design, oscillator construction, signal filtering, and general circuit prototyping. The function generator provides various waveforms for circuit excitation, and onboard meters enable real-time monitoring.

Q: When should the protection features be relied upon?

A: Overload and short-circuit protections are essential when experimenting with unfamiliar or prototype circuits. If excessive current or a fault occurs, the fused and protected outputs automatically prevent damage to the trainer and connected components, ensuring user and equipment safety.

Q: Where can measurements be taken on the Analog Lab Trainer?

A: Users can take measurements at multiple test point terminals, either with the onboard analog voltmeters and ammeters (resolution up to 0.1V/0.01A), or by connecting external meters to the banana sockets for more advanced or precise analysis.

Q: What process should be followed to get started with this trainer?

A: Plug the trainer into a standard AC mains supply (230V 10%), power on, and select the required function generator waveform and amplitude. Utilize the supplied patch cords to assemble your circuit on the breadboard, connect relevant test points, and use the onboard meters for real-time monitoring during experimentation.

Q: What are the main benefits of using this Analog Lab Trainer over separate instruments?

A: The all-in-one platform streamlines circuit construction and observation by integrating power supplies, waveform generation, and measurement tools, saving space and setup time. Its rugged build, overload protections, and easy interface with patch cords make it especially advantageous for academic labs and group studies.
