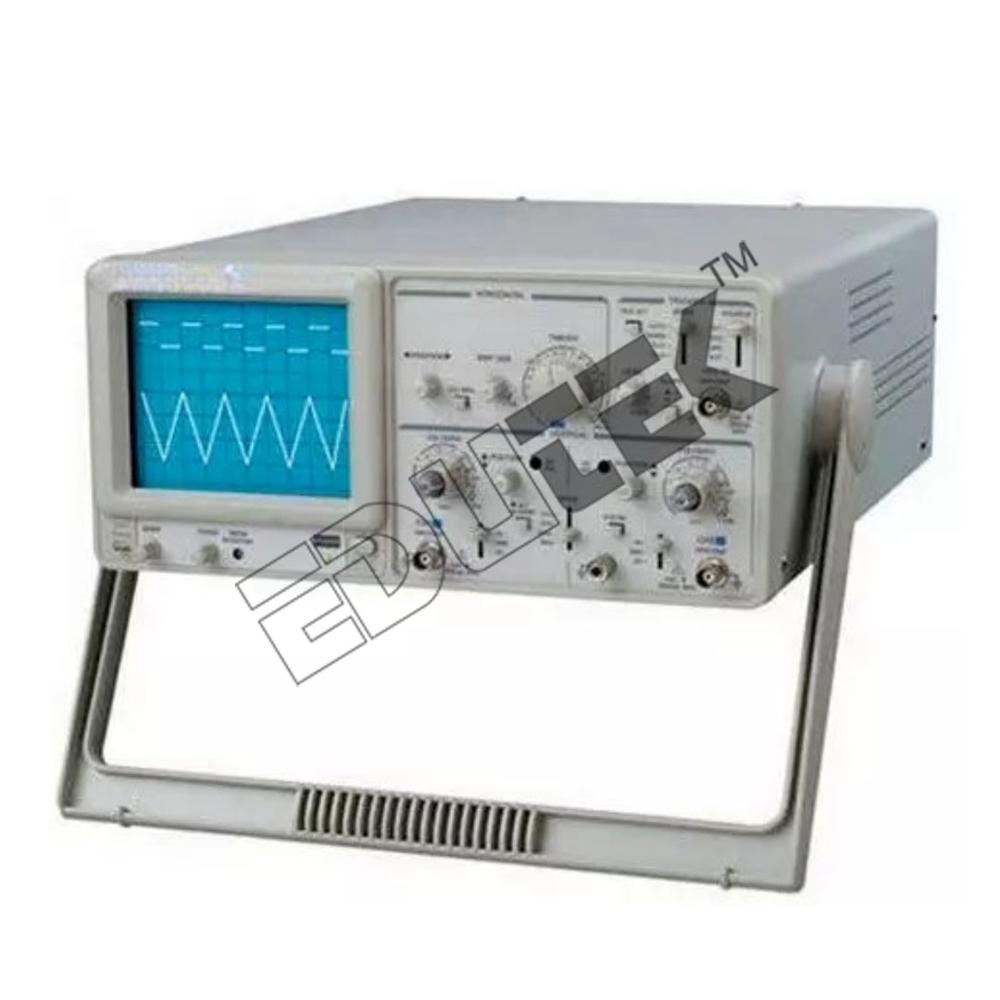

Dual Trace Storage Screen Display

Get a Price/Quote

MOQ : 1 Unit

Dual Trace Storage Screen Display Specification

Response Time
Fast sweep response

Usage
Electronic measurements and diagnostics

Operating Temperature
0°C to 40°C

Output
CRT Display

Input
Dual channel analog input

Resolution
High-resolution analog display

Power Supply
AC Mains

Components
Storage CRT, power cord, test leads

Interface
Analog knobs, BNC input connectors

Display Type
Storage CRT

Power Source
AC mains

Product Type
Dual Trace Storage Oscilloscope

Application
Laboratory, industrial, educational

Rated Voltage
220V

Supply Voltage
AC 220V/50Hz

Size
Desktop unit

Dimension (L*W*H)
430 x 165 x 370 mm

Function
30 MHz oscilloscope are dual-channel oscilloscope

Color
White-Grey

Weight
Approx. 8 kg

Warranty
1 Year

Features
The time base provides a maximum sweep time of 0.2 uS/DIV

Capacity
30 MHz bandwidth

Current Rating
Standard laboratory

Thickness
Standard casing

Frequency
30 MHz

Minimum Sweep Time
0.2 S/DIV

Input Coupling
AC/DC/GND switchable

Channel Isolation
>100:1 at 1 kHz

Vertical Sensitivity
5 mV/DIV to 20 V/DIV

Calibration
Calibrated outputs for probe compensation

Storage Function
Digital memory trace hold

Power Consumption
< 60 Watts

Horizontal Sensitivity
Variable

Line Frequency Range
50 Hz/60 Hz

CRT Type
High-contrast cathode ray tube

Display Modes
Dual trace, alternate, chopped, add

Rise Time
12 ns

Trigger Mode
Auto, Normal, Single

Time Base Accuracy
3%

Input Impedance
1 M

Maximum Sweep Time
0.2 S/DIV

Dual Trace Storage Screen Display Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA)

Sample Available
No

Sample Policy
Sample costs shipping and taxes has to be paid by the buyer

Packaging Details
carton box, export quality also available

Main Export Market(s)
Eastern Europe, Africa, Asia, Western Europe, Middle East

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About Dual Trace Storage Screen Display

Dual Trace Storage Screen Display

Specifications of Dual Trace Storage Screen Display

Dual Trace Storage Screen Display

The 30 MHz oscilloscope are dual-channel oscilloscope with maximum sensitivity of 5mV/DIV. The time base provides a maximum sweep time of 0.2 uS/DIV. when magnified by 10,the sweep speed is 20nS/DIV. Each of these oscilloscope employs a 6-inch rectangular type cathode-ray tube with red internal graticule. These oscilloscope are sturdy, easy to operated exhibits high operational reliability.

Features of Dual Trace Storage

Max. Vertical Sensitivity 1 mV/div
TV-V, TV-H Sync Separator
Alternate trigger
Z axis TTL Level
Max. TB Speed

Exceptional Signal Resolution and Versatility

This dual trace storage oscilloscope delivers high-resolution analog waveform displays through its advanced storage CRT, enabling clear, simultaneous analysis of two signals. The wide sweep and sensitivity ranges, with selectable AC/DC/GND coupling, offer versatility for different measurement scenarios in electronics development, repair, and teaching.

Advanced Storage and Trigger Features

Equipped with digital memory trace hold and multiple trigger modes, this oscilloscope captures transient and periodic signals effortlessly. The dual channel isolation ensures signal integrity, while the calibrated outputs simplify probe compensation, making it a dependable tool for comprehensive diagnostics and waveform analysis.

FAQs of Dual Trace Storage Screen Display:

Q: How do I use the storage function to hold and review waveforms?

A: The digital memory trace hold feature allows you to capture and retain waveforms on the storage CRT display for extended observation or comparison. Simply trigger the oscilloscope on the desired signal, then activate the memory trace function to freeze the display. This facilitates detailed analysis of transient or rare events.

Q: What types of electronic diagnostics are best suited for this 30 MHz oscilloscope?

A: This oscilloscope is ideal for a broad spectrum of electronic measurements, including signal waveform observation, troubleshooting circuit faults, testing frequency responses, and educational demonstrations. Its high bandwidth and fast response make it especially useful for analyzing analog and pulse signals in laboratories, industry, or academic settings.

Q: When should I use the different trigger modes (Auto, Normal, Single)?

A: Use Auto mode for continuous waveform monitoring, Normal mode to capture specific events only when triggered, and Single mode to observe one-time or infrequent signals. Selecting the proper trigger mode ensures a stable and relevant display of the signals you wish to analyze.

Q: Where can this oscilloscope be deployed for optimal performance?

A: The oscilloscope is designed for desktop use in laboratory, industrial, and educational environments. Its robust build and precise measurement capabilities make it suitable for electronics workbenches, R&D labs, service centers, and classroom demonstrations.

Q: What is the process for calibrating the test probes with this unit?

A: To calibrate your probes, connect them to the oscilloscopes calibrated output terminal and adjust the probe compensation trimmer until the displayed square wave has flat tops and bottoms. This ensures accurate signal representation and measurement fidelity.

Q: How does the dual channel and isolation feature benefit users during measurements?

A: Dual channels with >100:1 channel isolation at 1 kHz allow simultaneous independent observation of two signals with minimal crosstalk. This is beneficial for comparing input and output waveforms, viewing differential signals, or analyzing multi-point circuit behaviors.
