RECTANGULAR HORIZONTAL AUTOCLAVES

Price 1000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

RECTANGULAR HORIZONTAL AUTOCLAVES Specification

Material
High-grade Stainless Steel (SS 304/SS 316)

Product Type
Rectangular Horizontal Autoclave

Voltage
220V/380V AC, 50/60Hz

Weight
Approximately 350-500 kg (depending on model)

Application
Hospitals, Laboratories, Operation Theaters, Pharma Units

Classification
Automatic Sterilization Equipment

Usage
Sterilization of medical, laboratory, and surgical instruments

Power
6-18 kW (model dependent)

Operate Method
Fully Automatic / Semi-Automatic (available)

Dimension (L*W*H)
1500 x 600 x 900 mm (customizable)

Capacity
110, 162, 210, 252, 400 Liters (varies by model)

Color
Stainless Steel Finish

Water Filling
Manual or Automatic

Mount Type
Floor Standing

Safety Features
Automatic pressure release valve, low water cut-off, overheat protection

Door Type
Single or Double Door (as per model)

Pressure Range
1.2 to 2.2 kg/cm2 (15-32 psi)

Insulation
High density mineral wool or ceramic insulation

Display
Digital LED/LCD

Cycle Types
Standard, Liquid, Instrument, Custom Programs

Chamber Type
Rectangular, Horizontal Mount

Utility Connections
Water inlet, steam outlet, electric power

Gasket
Silicone or Neoprene (heat resistant)

Temperature Range
121C to 134C

Inner Chamber Material
Stainless Steel 304/316

Accessories
Trays, baskets, loading trolleys, data printer (optional)

Control System
Microprocessor based digital controller with timer

RECTANGULAR HORIZONTAL AUTOCLAVES Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash Advance (CA), Cash in Advance (CID), Cheque

Supply Ability
Unit

Delivery Time
1 Week

Sample Available
Yes

Packaging Details
carton box, export quality also available

Main Export Market(s)
Eastern Europe, Middle East, Africa, Western Europe, Asia

Main Domestic Market
All India

Certifications
ISO 9001, 14001 ,CE

About RECTANGULAR HORIZONTAL AUTOCLAVES

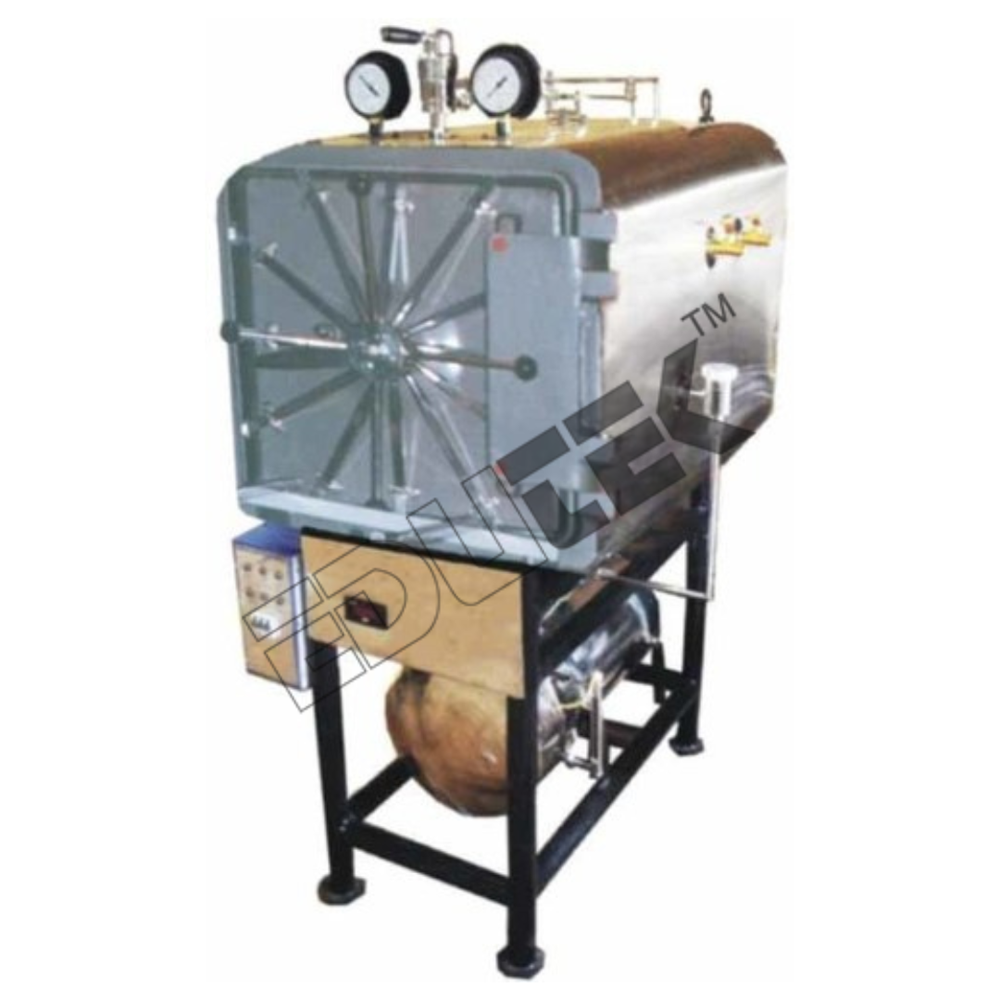

RECTANGULAR HORIZONTAL AUTOCLAVES

ETS-50B: Inner Chamber is made up of thick non-magnetic steel of 304/316 quality and jacket is made out of rolled steel. Single door made of rolled steel lined with S.S. sheets has radial locking system.

All units are hydraulically tested upto 40psi.

The space between outer cover made of thick rolled steel sheet and the steam jacket is filled with asbestos sheet or glass wool to minimize thermal losses.
Boiler is made of thick stainless steel sheet and is located under the sterilizer.
Unit is fitted with water level indicator, safety valve, pressure gauge, water inlet and drain valves.
Unit is also fitted with low-water level cut-off device and automatic pressure control device.
Rectangular sterilizes are fitted with SELF LOCKING SAFETY

DOOR device.

The door cannot be opened when chamber is under pressure.
Two separate valves are provided for evacuating steam from inner chamber and jacket, as and when desired.
Fitted with safety valve as a safety device.
Drain valve is fitted at the side bottom for easy draining/cleaning.
Fitted with vacuum breaker to break vacuum in case of formation of vacuum due to steam condensation.
Triple Walled with Steam Jacket and Separate Boiler. Sterilization cycle is controlled by
Multiport Valve. The unit is fitted with all standard accessories.
To work on 440 volts, 3 Phase, A.C. Supply.
DIMENSION MM LITRE
450 x 450 x 900 182
450 x 600 x 900 243
600 x 600 x 900 324
600 x 600 x 1200 432
600 x 750 x 1200 540
600 x 900 x 1500 810
900 x 900 x 1500 1215

Advanced Sterilization Technology

Utilizing microprocessor-based digital controllers, our autoclaves offer precise temperature, time, and pressure management for thorough sterilization. With programmable cyclesstandard, liquid, instrument, and customusers can tailor procedures to various items. The inner chamber is crafted from high-grade stainless steel, ensuring hygiene and durability for medical and laboratory environments.

Flexible Design and Operation

Available in both single and double door variants and supporting fully automatic or semi-automatic operation, these horizontal autoclaves adapt to facility requirements. Manual and automatic water filling is possible, while digital LED/LCD displays provide clear cycle information. Accessories like trays, baskets, and loading trolleys optimize the sterilization process and workflow.

Robust Safety and Performance Features

Key safety elements include automatic pressure release valves, low water cut-off, and overheat protection, reducing operational risks. Insulation with mineral wool or ceramic keeps energy efficiency high. With capacities ranging from 110 to 400 liters and power options between 6 and 18 kW, these machines are suitable for diverse sterilization demands in healthcare and research sectors.

FAQs of RECTANGULAR HORIZONTAL AUTOCLAVES:

Q: How does the microprocessor-based digital control system enhance autoclave operation?

A: The microprocessor-based digital controller ensures precise temperature, pressure, and timing management during sterilization. It automates cycle selectionincluding standard, liquid, instrument, or user-defined programsoffering reliability, reducing operator error, and enhancing sterilization outcomes.

Q: What safety features are integrated into the rectangular horizontal autoclave?

A: The autoclave is equipped with an automatic pressure release valve, low water cut-off system, and overheat protection. These features safeguard users and equipment by preventing hazardous pressure buildup, shutting down operation if water is insufficient, and avoiding temperature extremes.

Q: When should the autoclaves cycle type be selected, and how is it done?

A: Cycle type selection should be based on the items being sterilizedsuch as instruments, liquids, or custom materials. Users can choose from preset or custom cycles using the digital controller, ensuring the process conforms to specific sterilization needs and safety requirements.

Q: Where can these autoclaves be installed and used?

A: Rectangular horizontal autoclaves are suitable for installation in hospitals, laboratories, operating theaters, and pharmaceutical production units. Their floor-standing design and customizable dimensions allow easy integration into various professional environments across India and international markets.

Q: What are the benefits of using stainless steel 304/316 for the inner chamber and accessories?

A: Using high-grade stainless steel 304 or 316 ensures superior corrosion resistance, longevity, and easy cleaning. This maintains hygiene standards critical for medical and laboratory applications and supports repeated, rigorous sterilization cycles without material degradation.

Q: How is water supplied to the autoclave, and what are the utility connections required?

A: Water can be supplied either manually or automatically, depending on model configuration. Utility connections include a water inlet, steam outlet, and electric power input (220V/380V AC, 50/60Hz), ensuring seamless operation during sterilization and easy integration into facility infrastructure.

Q: What accessories are available and how do they assist in the sterilization process?

A: Available accessories such as trays, baskets, loading trolleys, and optional data printers help organize instruments, streamline loading and unloading, and facilitate record-keeping. These additions optimize workflow, increase throughput, and support regulatory compliance.
