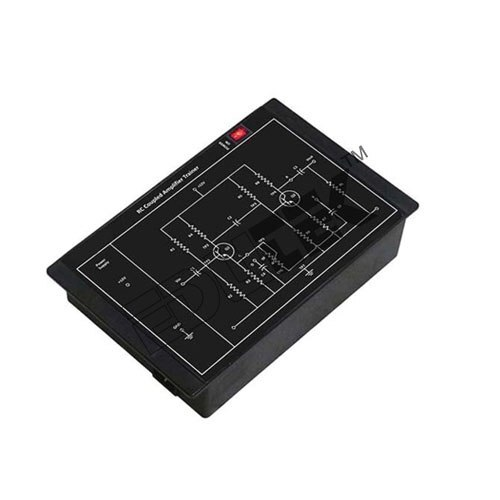

RC COUPLED AMPLIFIER

Name: RC COUPLED AMPLIFIER
Brand: EDUTEK INSTRUMENTATION
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

RC COUPLED AMPLIFIER Specification

Components
Resistors, Capacitors, Transistor, PCB, Terminals

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Response Time
Instantaneous

Sensors Specification
Not Included

Input
Audio or Low-level Signal

Features
Easy to Use, Pre-wired, Reusable, Safe for Classroom

Interface
Banana Sockets

Power Supply
Adaptor or Battery

Thermal Conductivity
Standard for PCB

IP Rating
Not Rated

Power Source
External DC Supply

Operating Temperature
0C to 50C

Display Type
No Display

Output
Amplified Signal

Product Type
RC COUPLED AMPLIFIER

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
12V DC

Supply Voltage
12V DC

Size
Standard Trainer Size

Dimension (L*W*H)
22cm x 14cm x 5cm

Function
Signal Amplification

Color
Green (PCB)

Weight
Approx. 150g

Thickness
1.6 mm (PCB)

Capacity
Single-stage Amplification

Current Rating
Max 100mA

Frequency
Audio Frequency Range (20Hz - 20kHz)

Transistor Type
General Purpose NPN (e.g., BC547)

Practical Experiment Coverage
AC Gain, Frequency Response, Load Line Analysis

Mounting Type
Tabletop

Assembly
Factory Assembled

Test Point Availability
Yes

PCB Material
Glass Epoxy

Connection Type
Terminals Provided for Input and Output

Documentation
Operation Manual Included

Coupling Method
RC (Resistor-Capacitor)

Safety
Short Circuit Protected

RC COUPLED AMPLIFIER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About RC COUPLED AMPLIFIER

Specification:

RC COUPLED AMPLIFIER

RC Coupled Amplifier Trainer has been designed specifically to demonstrate the importance of single stage & double stage RC coupled amplifier.

This kit is an extremely useful laboratory kit which provides facilities for hands on experience to various experiments in the field of electronics.

Easy interconnections for students to study frequency response of single stage & double stage RC coupled amplifier using BJT.

This kit is designed for institutions to train/teach their students in more effective manner about fundamentals of RC Coupled Amplifier with and without negative feedback.

Engineered for Education and Experimentation

The RC Coupled Amplifier is tailored for engineering students and educators, enabling hands-on exploration of signal amplification. It offers a safe, user-friendly interface suitable for classroom demonstration and laboratory experiments, with detailed documentation to support learning.

Robust Construction and User-Friendly Design

Fabricated on a high-quality glass epoxy PCB and equipped with terminal connections, the amplifier ensures durability and easy setup. Factory pre-wiring and short circuit protection guarantee long-lasting reuse, making it a dependable tool for repeated instructional use.

Comprehensive Practical Coverage

This trainer covers key practical experiments including AC gain measurement, frequency response testing, and load line analysis. Clearly labeled test points and terminals simplify data collection and observation, facilitating efficient learning and experiment reporting.

FAQ's of RC COUPLED AMPLIFIER:

Q: How do I connect the input and output signals to the RC Coupled Amplifier?

A: You can connect input and output signals using the provided terminals compatible with banana sockets. The labelled connections ensure straightforward setup for audio or low-level signals as input and amplified signal as output.

Q: What experiments can be performed with this amplifier trainer?

A: The trainer supports experiments such as measuring AC gain, observing frequency response, and conducting load line analysis, making it especially useful in engineering electronics courses focused on signal amplification.

Q: When should the amplifier be powered on during laboratory sessions?

A: Turn on the amplifier only after confirming all components are properly connected and your input/output leads are secured. Always use a 12V DC supply, either from an adaptor or a compatible battery.

Q: Where should the amplifier be mounted for optimal use?

A: It is designed for table-top use in classroom or laboratory environments. Its standard trainer size and stable base ensure safe and convenient operation during experiments.

Q: What process should be followed for maintenance and safety?

A: Since the unit is factory assembled and pre-wired, minimal maintenance is required. It features short circuit protection, but inspect the terminals and ensure no conductive debris is present before powering on. Disconnect the supply when not in use.

Q: How does using this product benefit students and educators?

A: Students gain practical experience in signal amplification and analysis, while educators benefit from the reusable, safe, and easy-to-use platform for effective demonstrations and assessments in electronics engineering topics.
