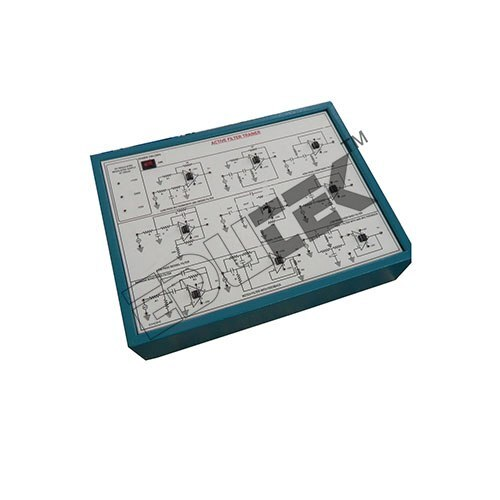

ACTIVE BAND PASS FILTER

Name: ACTIVE BAND PASS FILTER
Brand: EDUTEK INSTRUMENTATION
Price: 1200.0 INR
Availability: InStock

Price 1200.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ACTIVE BAND PASS FILTER Specification

IP Rating
Not rated

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Interface
Pin terminals / screw connectors

Components
Operational Amplifiers, Capacitors, Resistors, Connectors, PCB

Operating Temperature
0C to 50C

Features
High selectivity, low noise, easy integration

Response Time
Fast (dependent on op-amp)

Input
Analog signal

Power Source
External AC adapter or DC supply

Power Supply
AC Powered

Thermal Conductivity
Standard for Electronic PCB

Output
Filtered bandpass signal

Product Type
ACTIVE BAND PASS FILTER

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
230 V AC

Supply Voltage
12 V DC (for op-amp)

Size
Compact

Dimension (L*W*H)
100 mm x 60 mm x 15 mm

Function
Allows signals within a certain frequency range to pass while attenuating signals outside that range

Color
Blue

Weight
Approx. 150 grams

Capacity
Handles low to moderate signal power

Thickness
Standard PCB thickness

Current Rating
Approx. 50 mA

Frequency
Center Frequency: 1 kHz (customizable)

Pass Band
Adjustable, typically 500 Hz to 2 kHz

Adjustment
Trimmer provided for center frequency

Total Harmonic Distortion (THD)
Low

PCB Material
FR4 Glass Epoxy

Filter Type
Second or higher order Active Band Pass

Op-Amp Model
Universal (popular: TL072, NE5532, or equivalent)

Signal to Noise Ratio (SNR)
>70 dB

Mounting Type
Panel mount or PCB mount

Connector Type
Screw terminal or pin header

Input Impedance
>10 k

Output Impedance
<1 k

Environmental Compliance
RoHS Compliant

ACTIVE BAND PASS FILTER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About ACTIVE BAND PASS FILTER

Specification:

ACTIVE BAND PASS FILTER

To observe the frequency response of Band pass filter that permits a range of medium frequencies to pass through while rejecting frequencies above & below this medium.

To Calculate "Q of this band pass filter.

Precision Signal Filtering

This active band pass filter is meticulously engineered to allow only a specific range of frequencies to pass through while attenuating unwanted signals. The center frequency is fully adjustable, making it adaptable for various experimental and practical applications in engineering electronics.

Robust Construction and Versatility

Built using FR4 glass epoxy, the filter is both sturdy and lightweight. It accommodates diverse mounting options (panel or PCB), ensuring smooth integration into various designs. The use of high-quality operational amplifiers guarantees stable operation and minimal signal distortion.

User-Friendly Adjustments

A dedicated trimmer facilitates quick and accurate tuning of the center frequency, enabling efficient on-site calibration. Screw terminals and pin headers make installation straightforward, while the compact footprint allows deployment in space-constrained environments.

FAQ's of ACTIVE BAND PASS FILTER:

Q: How do I adjust the center frequency of this active band pass filter?

A: The filter is equipped with a trimmer, allowing users to fine-tune the center frequency within the 500 Hz to 2 kHz range. Simply rotate the trimmer until the desired frequency is achieved during setup or calibration.

Q: What makes this band pass filter suitable for engineering electronics instruments?

A: Thanks to its high selectivity, low noise, and low total harmonic distortion, this filter precisely isolates the required signal band. Its high signal-to-noise ratio further ensures reliable performance for sensitive instruments.

Q: When should I use an active band pass filter instead of a passive one?

A: Active band pass filters are ideal when you need sharper frequency selectivity, low noise, gain, or adjustable center frequencies. They are particularly effective for low-amplitude signals or applications demanding superior signal integrity.

Q: Where can the filter be mounted in my setup?

A: This unit can be mounted directly onto a panel or assembled on a PCB using either screw terminals or pin headers, providing maximum installation flexibility based on your system design.

Q: What process is involved in integrating this filter into my electronic instrument?

A: Simply connect the analog input and the filtered output to the respective terminals, apply the required 12 V DC supply for op-amp operation, and use the trimmer to set your desired frequency. Integration is straightforward due to standard connectors and the compact form factor.

Q: How does the filter benefit my signal processing application?

A: It ensures only your target frequency range passes, suppressing unwanted frequencies and reducing noise. This leads to clearer measurements and more precise instrumentation outcomes.
