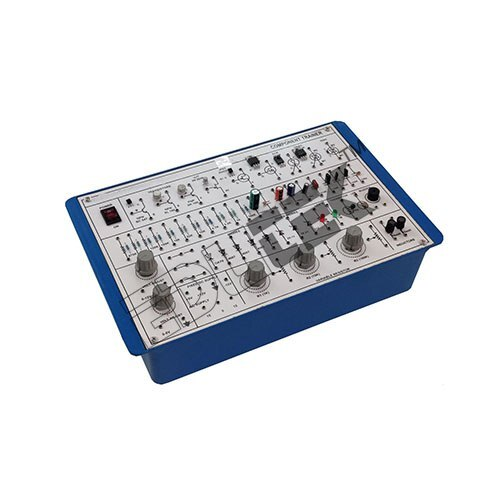

ANALOG COMPONENT TRAINER

Name: ANALOG COMPONENT TRAINER
Brand: EDUTEK INSTRUMENTATION
Price: 1500.0 INR
Availability: InStock

Price 1500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

ANALOG COMPONENT TRAINER Specification

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Components
Power supplies on boards 0-50 V, 250 mA and 0-30 V, 250 mA Variable

Features
3 Pairs of connected 2 mm sockets 4 Rectifier diodes 1 OA79germanium diode 3 different values of Zener N different values resistances N different values capacitors

Product Type
ANALOG COMPONENT TRAINER

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Function
Trainer comprises Power supplies inside the trainer

Warranty
1 Year

ANALOG COMPONENT TRAINER Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash on Delivery (COD), Cash Advance (CA)

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About ANALOG COMPONENT TRAINER

Specification:

ANALOG COMPONENT TRAINER

Trainer comprises Power supplies inside the trainer

Power supplies on boards 0-50 V, 250 mA and 0-30 V, 250 mA Variable

15 V/150 Ma and 5 V/150 mA Fixed Supplies provided

4 Nos of Variable resistor provided on the board

One 20 Pin Vero board on mounted on the board

Ac powers supply 15-0-15 V for rectifier applications

2 Nos. of digital meters provided on board

Various components on the trainer set

3 Pairs of connected 2 mm sockets

4 Rectifier diodes

1 OA79germanium diode

3 different values of Zener

N different values resistances

N different values capacitors

Comprehensive Analog Circuit Training

Perfect for engineering electronics courses, this trainer covers essential analog circuit concepts. With a variety of core components, students can readily set up and analyze circuits such as rectifiers, voltage regulators, and filters, fostering a solid foundation in electronics experimentation.

Integrated & Variable Power Supplies

The trainer features two variable power supplies: one ranging from 0 to 50 volts, and another from 0 to 30 volts, both with 250 mA output. This flexibility allows users to safely power diverse circuit configurations directly from the trainer, eliminating the need for external supplies.

Packed With Essential Electronic Components

Each trainer is equipped with an array of vital components. These include multiple rectifier and Zener diodes, a classic OA79 germanium diode, and a selection of resistors and capacitors, making it suitable for a range of analog circuit experiments and practical demonstrations.

FAQ's of ANALOG COMPONENT TRAINER:

Q: How do I use the Analog Component Trainer in a classroom environment?

A: Simply connect your chosen circuit using the built-in power supplies and the provided 2 mm sockets. The onboard components allow for easy configuration of experimental circuits, making classroom demonstrations interactive and practical.

Q: What experiments can be performed with this trainer?

A: You can conduct experiments involving rectification, voltage regulation, filtering, and other analog electronic applications. The inclusion of different diodes, resistors, and capacitors enhances its versatility for various analog circuit designs.

Q: When should I use the built-in variable power supplies?

A: The variable power supplies should be used whenever a specific or adjustable voltage is needed for your circuit. They're ideal for testing circuits requiring varied operating conditions without the need for external power sources.

Q: Where can I get technical support or servicing for this trainer?

A: As a manufacturer, supplier, and exporter based in India, technical support and warranty servicing can be accessed through our main office or authorized service providers. Customers can contact us directly for assistance.

Q: What is the warranty period for this trainer, and what does it cover?

A: This Analog Component Trainer is backed by a 1-year warranty, covering manufacturing defects and faults in materials. Warranty claims can be made through the supplier by presenting a valid proof of purchase.

Q: How does this trainer benefit engineering students?

A: This trainer offers hands-on experience with real components, promoting deeper understanding of analog circuits. Its modular nature encourages experimentation, critical thinking, and prepares students for practical engineering challenges.
