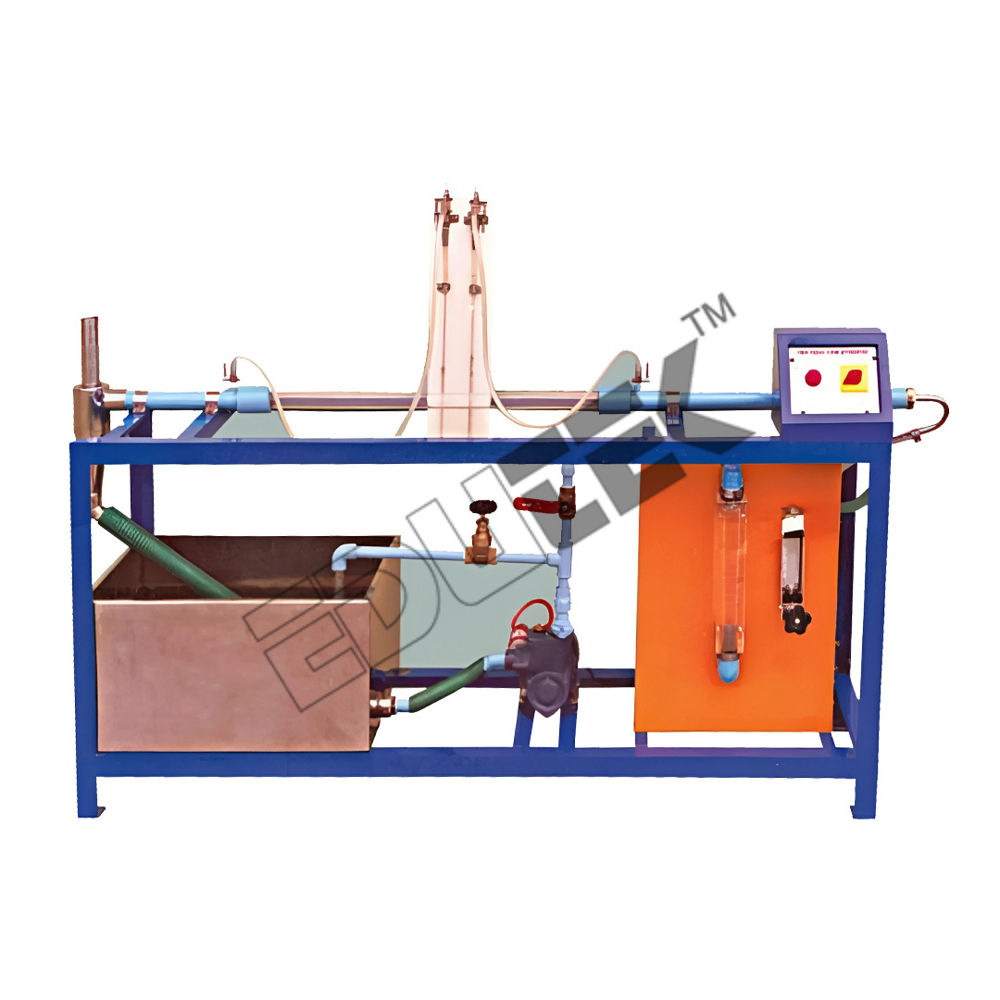

Send InquiryPressure Drop in Two Phase Flow
Price 500.0 INR/ Unit
MOQ : 1 Unit
Pressure Drop in Two Phase Flow Specification
- Automation Grade
- Semi-Automatic
- Voltage
- 230 V AC Volt (v)
- Power Source
- Electric
- Frequency
- 50 Hz Hertz (HZ)
- Accuracy
- 1% of Reading %
- Temperature Range
- 0 C to 80 C Celsius (oC)
- Measurement Range
- 0 2000 mm Water Column
- Core Components
- Test Section, Manometer, Flow Meter, Water Heater, Compressor
- Model No
- PTF-2P-2024
- Capacity
- Up to 10 LPM (liters per minute) Ltr
- Feature
- Precise Pressure Drop Measurement, Transparent Test Section, Easy Data Logging
- Warranty
- 1 Year
- Equipment Materials
- Stainless Steel/Glass/Brass
- Type
- Experimental Test Rig
- Usage
- Laboratory, Educational Institutions, Research Purposes
- Display Type
- Digital LED Display
- Dimension (L*W*H)
- 1050 x 600 x 1500 mm Millimeter (mm)
- Weight
- Approx. 35 kg Kilograms (kg)
- Installation
- Benchtop
- Compliance
- CE Certified
- Calibration
- Pre-calibrated with Certificate
- Operating Pressure
- Up to 2 bar
- Application
- Two-phase Flow Studies in Heat Transfer & Fluid Labs
- Fluid Media Compatibility
- Suitable for Water, Air, or Steam
- Pipe Diameter
- 12 mm (Standard)
- Sample Flow Visualization
- Yes, with Transparent Section
- Pressure Indication
- Direct Digital/Analog Measurement
- Heater Capacity
- 1.5 kW
- Safety Features
- Overload Protection, Pressure Relief Valve
- Tubing Material
- Borosilicate Glass
- Manometer Type
- Inclined and U-tube
Pressure Drop in Two Phase Flow Trade Information
- Minimum Order Quantity
- 1 Unit
- Payment Terms
- Cash Against Delivery (CAD), Cash on Delivery (COD), Delivery Point (DP), Cash Advance (CA), Cash in Advance (CID), Cheque, Days after Acceptance (DA), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Delivery Time
- 2 Week
- Sample Available
- Yes
- Sample Policy
- If order is confirmed we will reimburse the sample cost
- Main Export Market(s)
- Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
- Main Domestic Market
- Central India, West India, North India, East India, Gujarat, Karnataka, Kerala, Chandigarh, Rajasthan, Sikkim, Tamil Nadu, Telangana, Tripura, Daman and Diu, Goa, Jharkhand, Odisha, Punjab, Assam, Delhi, Dadra and Nagar Haveli, Andaman and Nicobar Islands, Arunachal Pradesh, Chhattisgarh, Haryana, Himachal Pradesh, Jammu and Kashmir, Madhya Pradesh, Maharashtra, Nagaland, Meghalaya, Manipur, Andhra Pradesh, Bihar, Pondicherry, Uttar Pradesh, All India, South India, Lakshadweep, Mizoram, Uttarakhand, West Bengal
- Certifications
- AS ISO 9001:2008, ISO 14001:2004 and OHSAS 18001:2007 CO.
About Pressure Drop in Two Phase Flow
Pressure Drop in Two Phase FlowWe are manufacturers exporters and suppliers of Pressure Drop In Two Phase Flow that is manufactured from high-grade raw materials. Keeping an eye on current market trends, our diligent workers put in sincere efforts to manufacture the offered range. The provided product is uniquely designed in compliance with international quality standards, using optimum quality raw materials and latest technology. Further, our valuable clients can avail this range in diverse specifications in compliance with details specified by clients.
Features:
- Anti-corrosive.
- High strength.
- Fine finish.
- Test Section Material Borosilicate Glass.
- Water Circulation FHP Pump, Crompton/Sharp make.
- Flow Measurement Rotameters. 2 Nos. (one each for Water & Air).
- Air Circulation By Compressed Air.
- Buffer Tank Material Stainless steel, Suitable Capacity with Safety valve and Pressure Gauge.
- Water Tank Material Stainless Steel/PVC, Capacity 60 Ltrs.
- Pr. Drop measurement Differential Manometer.
- Separator Material Stainless steel, Compatible capacity.
- Piping GI and PVC.
- Control panel comprising of Standard make on off switch, Mains Indicator fuse etc.
- The whole set-up is well designed and arranged in a good quality painted structure.
Advanced Measurement & Safety Features
Benefit from highly accurate pressure drop measurements (1% of reading) using digital LED indication paired with direct view on inclined and U-tube manometers. Key safety features include overload protection and a pressure relief valve, enhancing safe operation during experiments. Pre-calibrated with certification, it ensures data reliability and compliance with CE standards.
Optimized for Two-Phase Flow Analysis
Designed for compatibility with water, air, or steam, the rig allows for comprehensive studies in heat transfer and fluid dynamics. The transparent borosilicate glass section facilitates real-time sample flow visualization, making it ideal for educational demonstrations and advanced research in two-phase flow behavior.
Efficient Design for Laboratory Use
With a benchtop installation and manageable 35 kg weight, this semi-automatic rig offers easy integration into laboratory setups. Stainless steel, brass, and glass components provide durability, while the equipment supports a wide flow and temperature range for versatile experimentation. Easy data logging aids analysis and reporting.
FAQs of Pressure Drop in Two Phase Flow:
Q: How does the apparatus ensure precise pressure drop measurement in two-phase flows?
A: The rig uses both inclined and U-tube manometers along with a direct digital/analog measurement system, offering high accuracy (1% of reading). Transparent test sections allow for visual sample flow verification during experiments.Q: What fluid media can be tested with this equipment?
A: This model is suitable for experiments involving water, air, and steam, making it versatile for a variety of two-phase flow scenarios in laboratory or research settings.Q: When should the pressure relief valve and overload protection features be utilized?
A: These integrated safety features activate automatically in case of excessive pressure or electrical overload, safeguarding users and equipment throughout experimentation.Q: Where is this test rig typically used?
A: It is primarily employed in laboratory environments, educational institutions, and research facilities specializing in heat transfer and two-phase flow studies.Q: What is the process for calibrating the equipment?
A: Each unit is pre-calibrated and supplied with a calibration certificate, ensuring immediate accuracy upon installation without the need for additional calibration before first use.Q: How does the transparent test section benefit users?
A: The transparent borosilicate glass section permits clear observation of two-phase flow patterns, assisting with real-time analysis and enhancing the educational value of demonstrations.Q: What are the main advantages of using this two-phase flow test rig?
A: Users gain accurate and reliable pressure drop data, real-time visualization, robust safety features, and simple data logging, all within a CE-certified, durable, and laboratory-friendly design.
