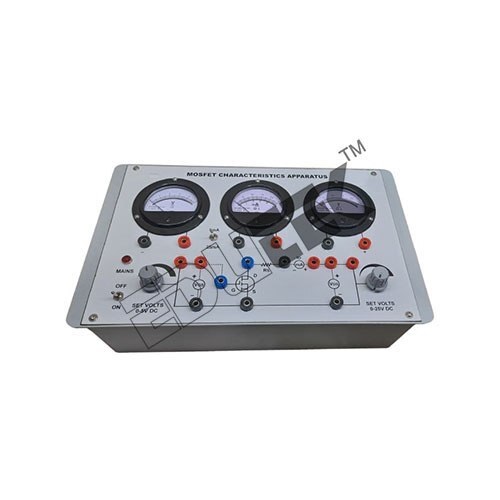

Send InquiryMOSFET CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS
Price 15000.0 INR/ Piece
MOQ : 1 Piece
MOSFET CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS Specification
- Components
- On Board Analog Moving Coil Meters (60 x 35 mm)
- Usage
- ENGINEERING ELECTRONICS INSTRUMENTS
- Power Supply
- Power: 230 VAC 10%, 50Hz.
- Output
- Output Voltage: 0-5VDC, 0-25VDC
- Product Type
- MOSFET CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS
- Application
- ENGINEERING ELECTRONICS INSTRUMENTS
- Dimension (L*W*H)
- Dimensions (mm): 330( L) x 225(B) x 75(H) Millimeter (mm)
- Function
- MOSFET CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS
- Weight
- Weight: 2.0Kg Approx. Kilograms (kg)
- Warranty
- 1 Year
- Features
- High quality Backlight used as front panel of 300mm x 220mm & mounted on light weight shock proof plastic cabinet
MOSFET CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS Trade Information
- Minimum Order Quantity
- 1 Piece
- Payment Terms
- Cash on Delivery (COD), Cash Advance (CA), Cheque, Telegraphic Transfer (T/T), Letter of Credit (L/C)
- Packaging Details
- Carton Box, Export Quality also Available
- Main Export Market(s)
- Asia, Middle East, Africa
- Main Domestic Market
- All India
- Certifications
- ISO 9001, 14001, CE
About MOSFET CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS
Specification:
MOSFET CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS
Technical Specifications:
Inbuilt Variable DC regulated power supplies
Output Voltage: 0-5VDC, 0-25VDC
On Board Analog Moving Coil Meters (60 x 35 mm)
Voltmeters: 0-5VDC, 0-25VDC
Ammeter: 0- 5 mADC / 0-25mADC (Dual Range)
High quality Backlight used as front panel of 300mm x 220mm & mounted on light weight shock proof plastic cabinet
Power: 230 VAC 10%, 50Hz.
Weight: 2.0Kg Approx.
Dimensions (mm): 330( L) x 225(B) x 75(H)
Comprehensive MOSFET Analysis
This specialized apparatus allows users to investigate the characteristics of Metal-Oxide-Semiconductor Field Effect Transistors (MOSFETs) in controlled conditions. The precise onboard analog meters and adjustable voltage supply help users measure and plot crucial device parameters, providing hands-on experience that bridges theoretical concepts with practical application.
Built with Durability and Precision
Featuring a lightweight, shock-proof plastic cabinet and a high-quality bakelite front panel, the apparatus is constructed for frequent use in academic settings. The inclusion of backlighting enhances visibility during experiments, while the compact design (330 x 225 x 75 mm) makes it easy to handle and store, ensuring long-lasting performance.
FAQ's of MOSFET CHARACTERISTICS APPARATUS WITH BAKELITE PANEL & ROUND METERS:
Q: How is the MOSFET Characteristics Apparatus typically used in engineering laboratories?
A: This apparatus is primarily employed to study and observe the characteristics of MOSFETs. It allows students and researchers to analyze parameters such as drain current versus gate voltage, using built-in adjustable voltage outputs and analog meters to accurately measure and record readings.Q: What are the benefits of using a bakelite panel and a shock-proof plastic cabinet in this apparatus?
A: The bakelite panel provides electrical insulation and chemical resistance, increasing safety in experiments. Coupled with the shock-proof plastic cabinet, it ensures robustness and longevity, making the device suitable for high-usage environments like academic labs.Q: When should the onboard analog moving coil meters be utilized during an experiment?
A: The analog moving coil meters should be used whenever direct and real-time measurement of current and voltage is required during MOSFET characteristic analysis. Their continuous scale display aids in accurately capturing variations during live experiments.Q: Where can this MOSFET Characteristics Apparatus be installed or placed for optimal use?
A: It is designed for use on standard laboratory benches or desks, thanks to its compact dimensions. Placement should allow for clear visibility of meters and easy access to controls, ideally under stable power supply conditions (230 VAC 10%, 50Hz).Q: What is the process of setting up the apparatus for a MOSFET characteristics experiment?
A: Begin by connecting the unit to a 230 VAC power source. Select the desired output voltage range (0-5VDC or 0-25VDC) based on the experiment. Connect the MOSFET as required and use the onboard meters to monitor changes as you adjust input voltages and measure the resulting currents.Q: How does the apparatus enhance the learning experience for electronics students?
A: By providing tangible experimentation with MOSFETs, the apparatus reinforces electronic theories with real-world data. The combination of adjustable voltage supplies and clear analog display enables students to visualize the relationship between voltage and current, facilitating deeper understanding.
