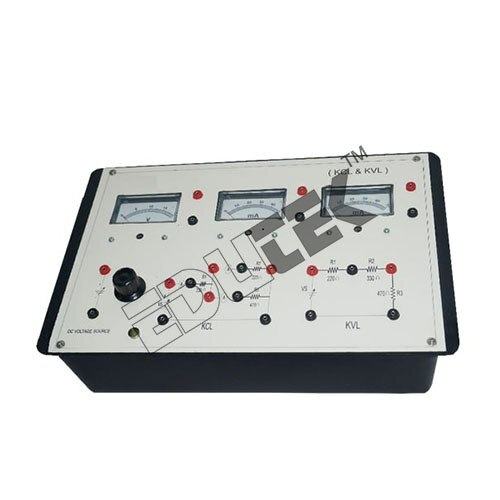

VERIFICATION OF KCL & KVL WITH ALUMINUM PANEL & SQUARE METERS

Price 50.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

VERIFICATION OF KCL & KVL WITH ALUMINUM PANEL & SQUARE METERS Specification

Power Source
External DC

Resolution
Analog meters, typically 0.01A/0.01V increments

Sensors Specification
Integrated ammeter and voltmeter

Thermal Conductivity
High (due to aluminum panel)

Features
Portable design; easy operation; clear schematic labeling; robust aluminum construction

Components
Aluminum panel, precision resistors, patch cords, digital/analog meters

IP Rating
IP20

Operating Temperature
0C to 50C

Input
Variable DC source; external connection ports

Usage
ENGINEERING ELECTRONICS INSTRUMENTS

Interface
Banana sockets for circuit connection

Power Supply
External DC power

Output
Analog voltmeter and ammeter readings

Display Type
Analog meters

Response Time
Instantaneous (analog meters)

Product Type
VERIFICATION OF KCL & KVL WITH ALUMINUM PANEL & SQUARE METERS

Application
ENGINEERING ELECTRONICS INSTRUMENTS

Rated Voltage
12V DC

Supply Voltage
12V DC

Size
Standard laboratory panel size

Dimension (L*W*H)
300 x 200 x 75 mm

Function
Verification of Kirchhoffs Current Law (KCL) and Kirchhoffs Voltage Law (KVL) using practical circuits

Color
Silver and Black (Aluminum Panel Finish)

Weight
Approx. 2.5 kg

Capacity
Supports up to 2A output current

Current Rating
Up to 2 Amp

Thickness
3 mm (Aluminum Panel)

Frequency
DC (not frequency dependent)

VERIFICATION OF KCL & KVL WITH ALUMINUM PANEL & SQUARE METERS Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Telegraphic Transfer (T/T), Letter of Credit (L/C), Cash on Delivery (COD), Cash Advance (CA), Cheque

Packaging Details
Carton Box, Export Quality also Available

Main Export Market(s)
Asia, Middle East, Africa

Main Domestic Market
All India

Certifications
ISO 9001, 14001, CE

About VERIFICATION OF KCL & KVL WITH ALUMINUM PANEL & SQUARE METERS

The VERIFICATION OF KCL & KVL WITH ALUMINUM PANEL & SQUARE METERS is a resplendent, must-have educational instrument designed for verifying Kirchhoffs Current and Voltage Laws with unmatched precision. Featuring a premier, bench-top pre-wired panel fitted with redoubtable high-grade aluminum and high-accuracy resistors (1%), this device ensures highlighted performance and durability. Gold-plated test sockets, reliable overvoltage and overcurrent protection, and high-precision analog meters provide competitive pricing and value for laboratory use. Supplied with patch cords and a user manual, this instrument supports up to 2A and meets stringent safety norms.

Application and Usage in Engineering Laboratories

Specifically engineered for both general and advanced laboratory exercises, this versatile apparatus excels in electrical engineering education, practical circuit demonstrations, and core testing of KCL and KVL. Whether used for academic research, instructional demonstrations, or hands-on learning, the robust aluminum build and portable design make it indispensable across colleges, vocational institutes, and training centers for precise circuit analysis and verification.

Sample Policy, Certifications, and Supply Offers

Sample requests for the VERIFICATION OF KCL & KVL WITH ALUMINUM PANEL & SQUARE METERS are entertained upon inquiry, with list pricing provided for bulk and single unit offers. The product comes factory-calibrated, meeting standard laboratory safety norms and bearing necessary certifications for institutional use. Reliable supply capabilities ensure prompt delivery to educational institutions, backed by warranty and ongoing support for continuous usage in dynamic learning environments.

FAQs of VERIFICATION OF KCL & KVL WITH ALUMINUM PANEL & SQUARE METERS:

Q: How does this panel assist in verifying KCL and KVL?

A: This instrument allows you to construct and measure circuits using its integrated resistor network and analog meters, making the verification process of Kirchhoffs Current and Voltage Laws simple, accurate, and demonstrable in real time.

Q: What safety features are included in the product?

A: The device incorporates overvoltage and overcurrent protection and uses high-quality electrical components, ensuring safe operation and safeguarding users during laboratory experiments.

Q: Where can the VERIFICATION OF KCL & KVL WITH ALUMINUM PANEL & SQUARE METERS be used?

A: It is ideally used in engineering colleges, technical training institutes, and research laboratories for practical circuit analysis and demonstrations aligned with curriculum needs.

Q: What is included in the standard supply package?

A: Each unit comes with an aluminum panel, precision resistors, patch cords, a comprehensive user manual, high-precision analog meters, and all necessary connection accessories.

Q: When is the calibration performed and does the product meet certifications?

A: The instrument is factory-calibrated before delivery and complies with standard laboratory safety and quality certifications, ensuring optimal performance and reliability for educational use.
